Exhaust Gas Recirculation Cooler Bypass Valve Actuator Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

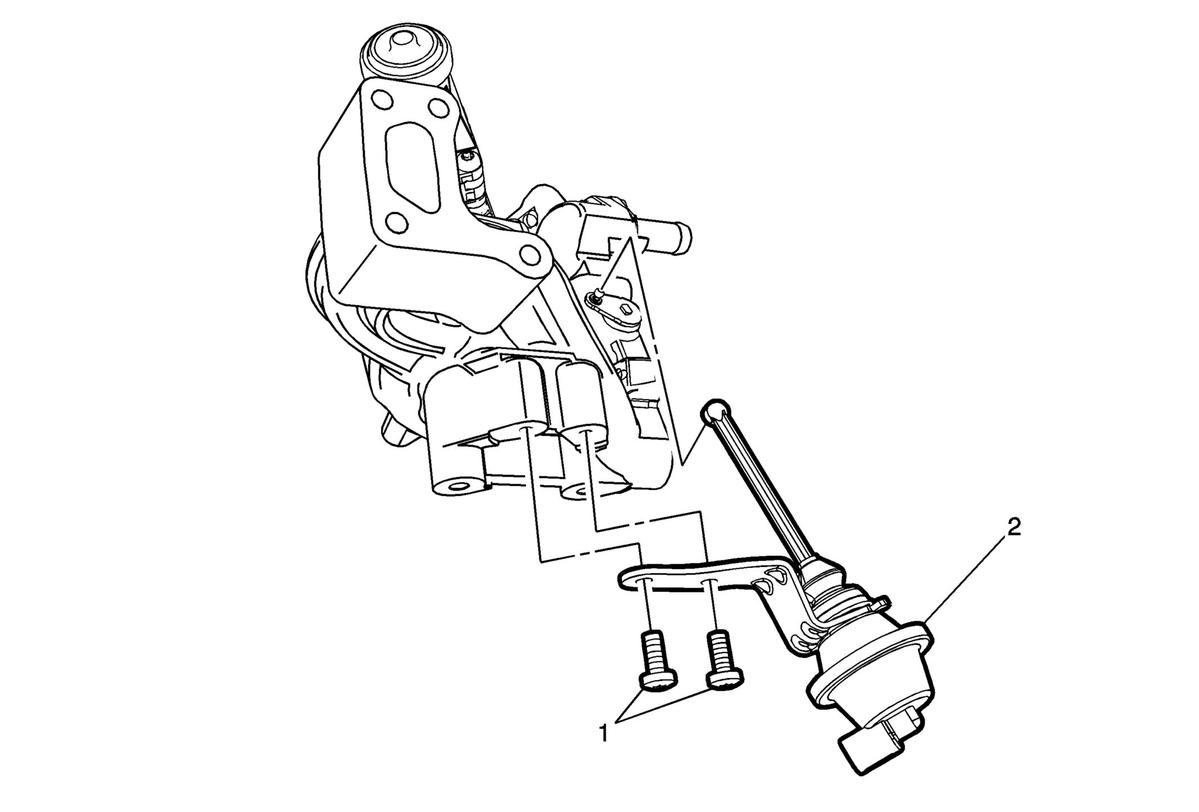

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the exhaust gas recirculation valve assembly. Refer to Exhaust Gas Recirculation Valve Replacement . |
|
| 1 | Exhaust Gas Recirculation Cooler Bypass Valve Actuator Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Exhaust Gas Recirculation Cooler Bypass Valve Actuator Procedure Disconnect the bypass actuator arm from the EGR bypass door. |
