Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Support the emission reduction fluid tank with a suitable jack.

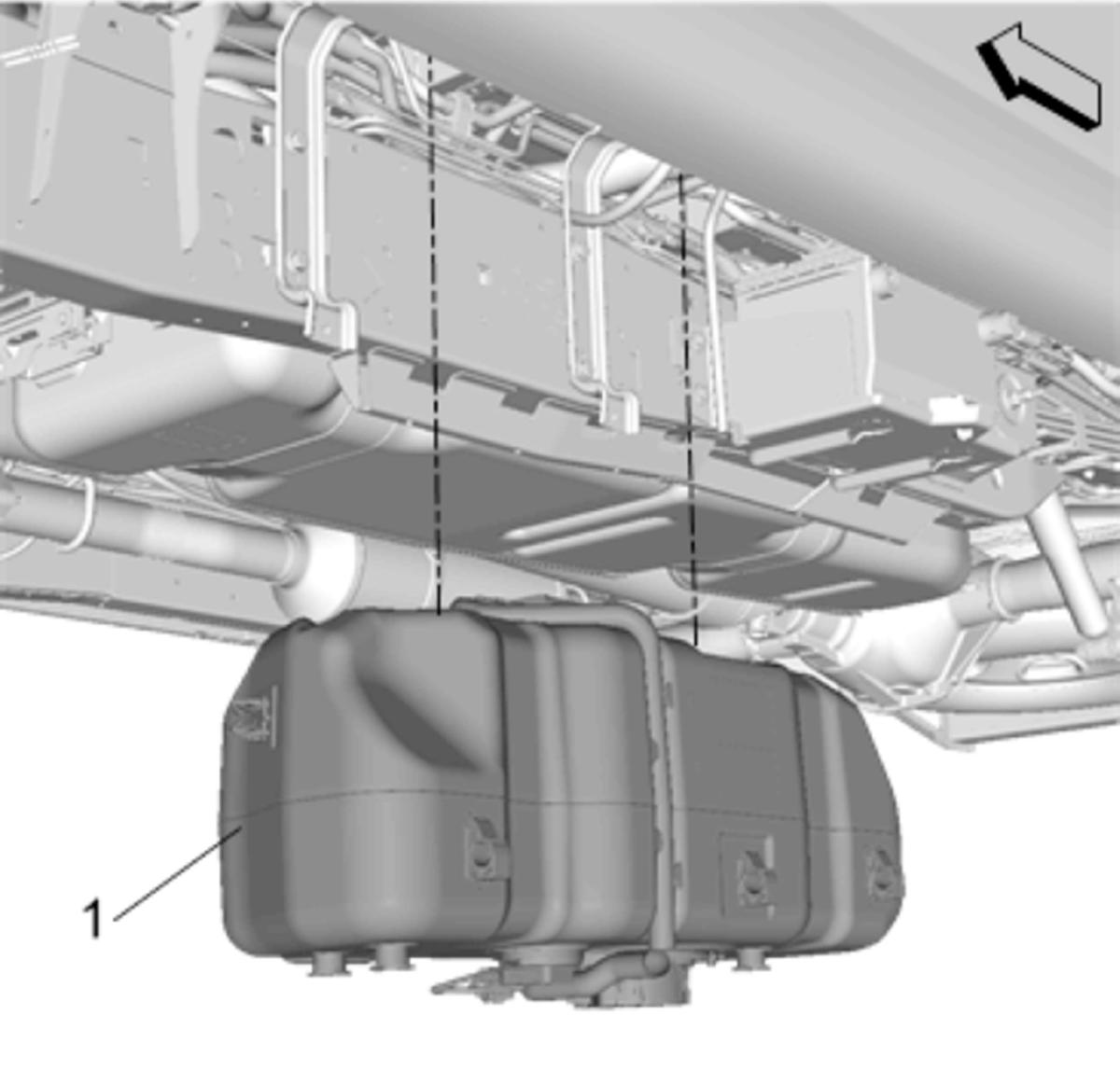

Emission Reduction Fluid Tank (1) - Install
Position emission reduction fluid tank forward to allow access to install bolts.

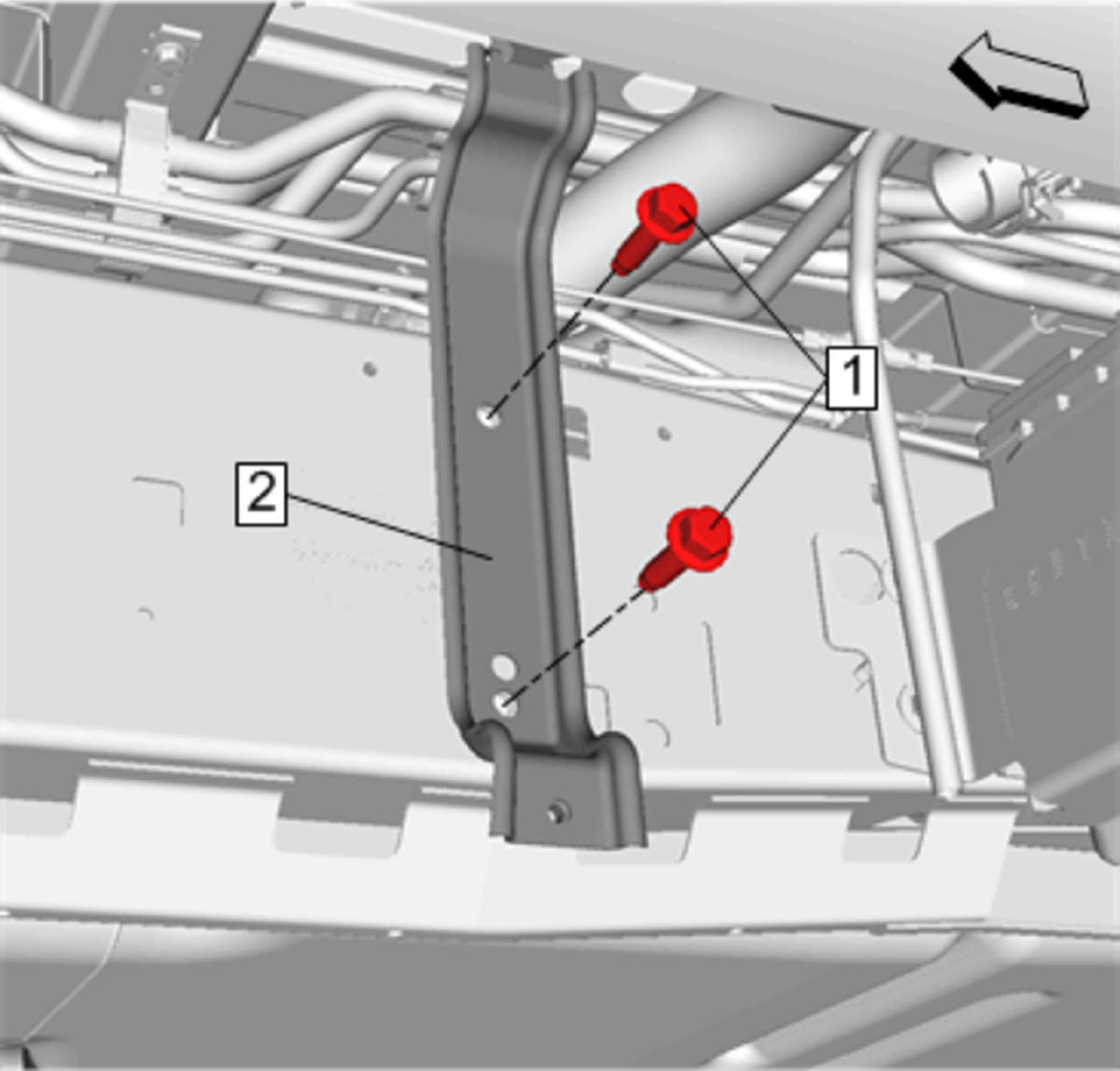

- Emission Reduction Fluid Tank Support Bracket (2) - Install
- Emission Reduction Fluid Tank Support Bracket Bolt (1) - Install and tighten [2x] 58N.m (43 lb ft)

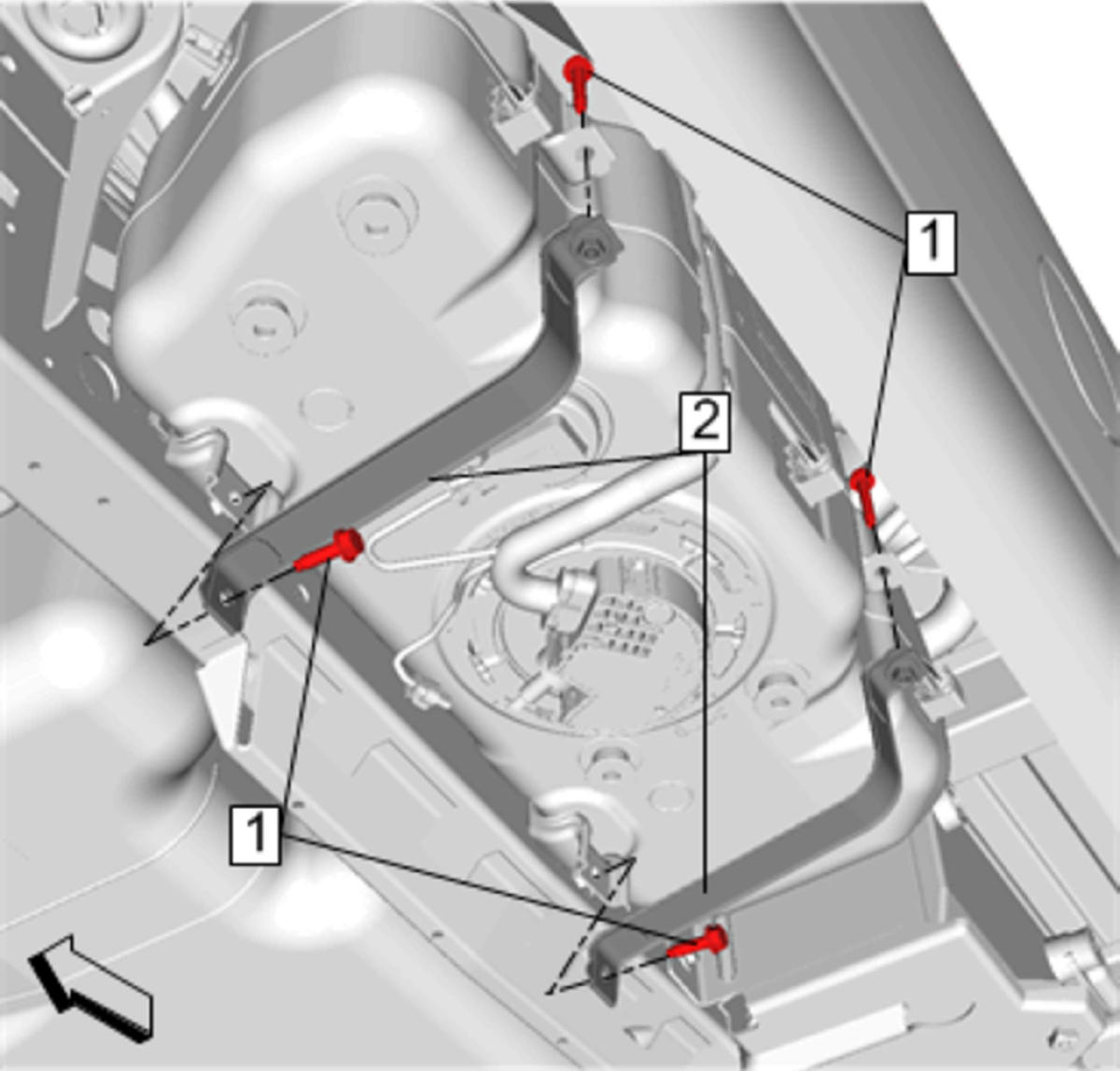

Emission Reduction Fluid Tank Strap (2) - Install [2x]
- Emission Reduction Fluid Tank Strap Bolt (1) - Install and tighten 22N.m (16 lb ft) [4x]

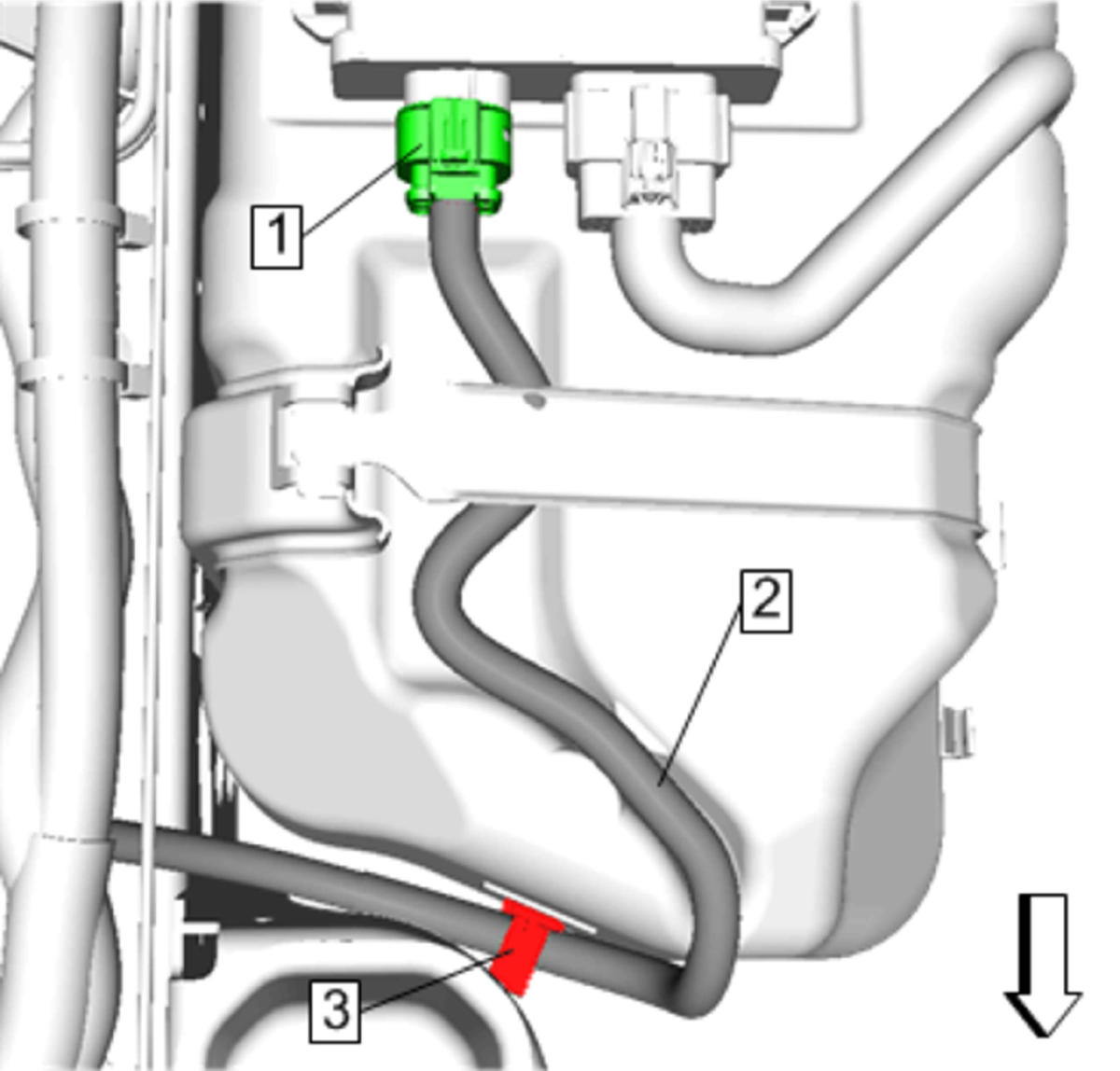

Emission Reduction Fluid Pump Module Wiring Harness (2) @ Retainer (3) - Install
- Emission Reduction Fluid Pump Module Wiring Harness (1) - Connect

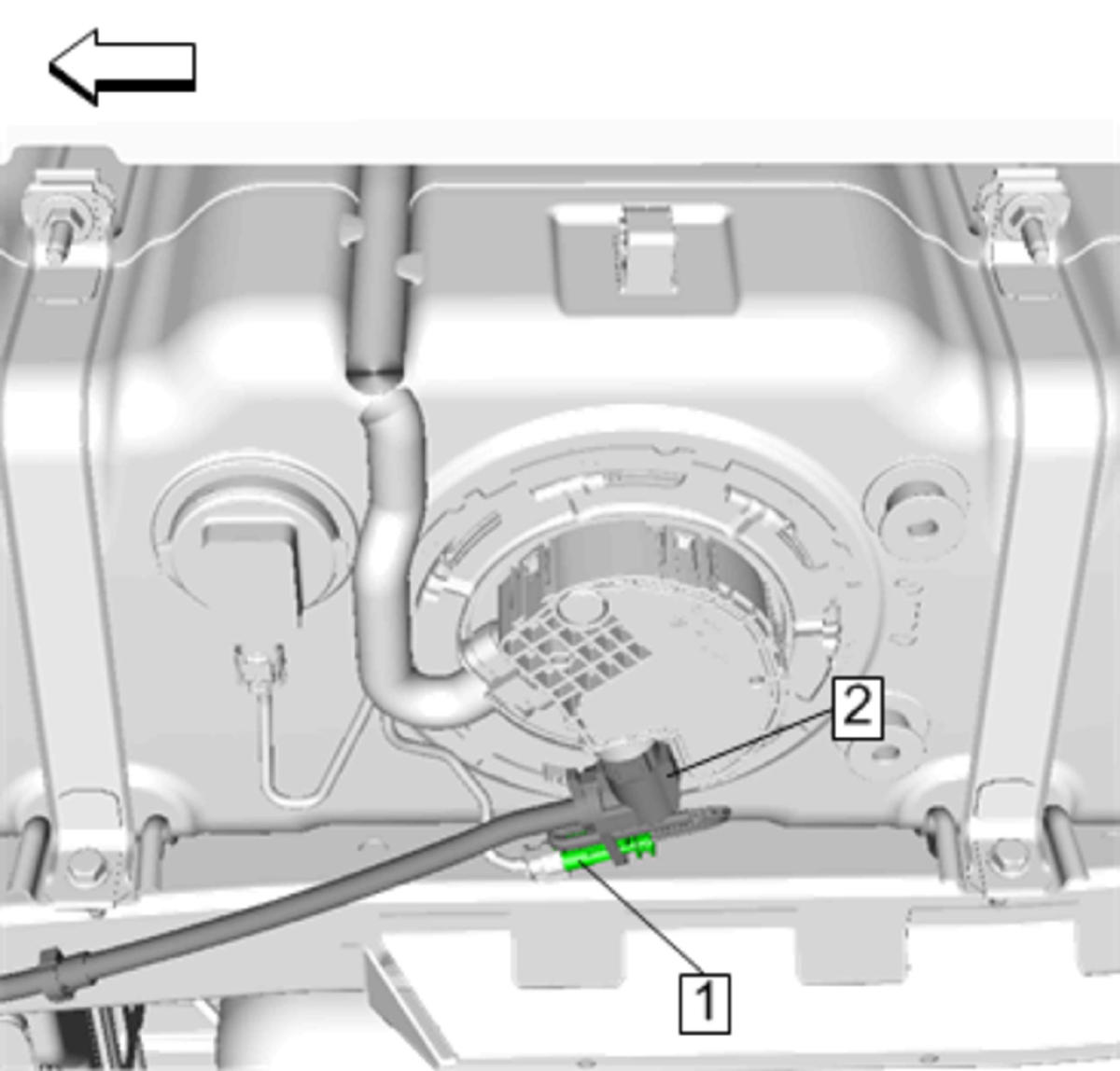

Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe (2) - Connect - Plastic Collar Quick Connect Fitting Service
- Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe Electrical Connector (1) - Connect

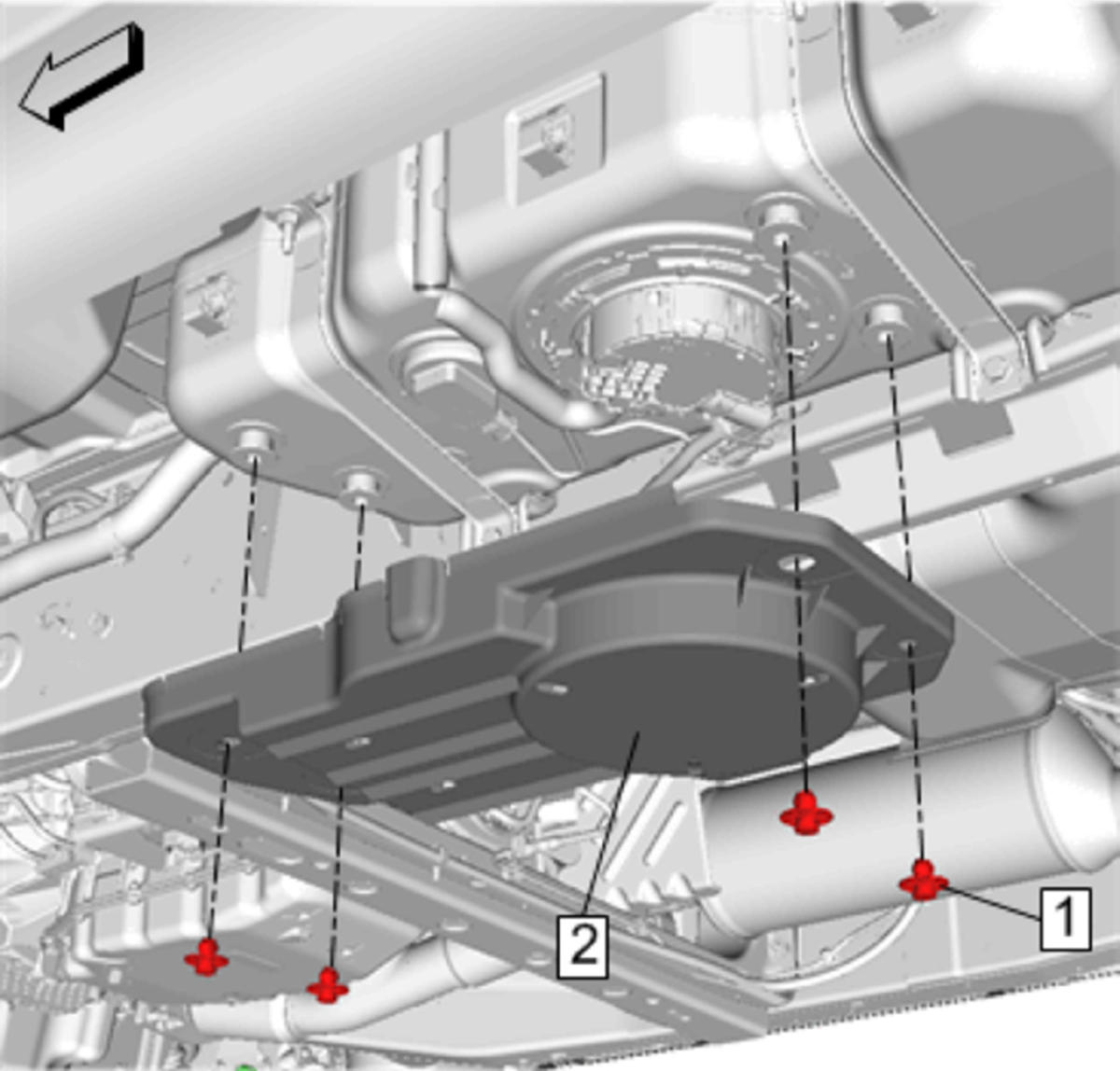

Emission Reduction Fluid Tank Shield (2) - Install
- Emission Reduction Fluid Tank Shield Retainer (1) - Install [4x]

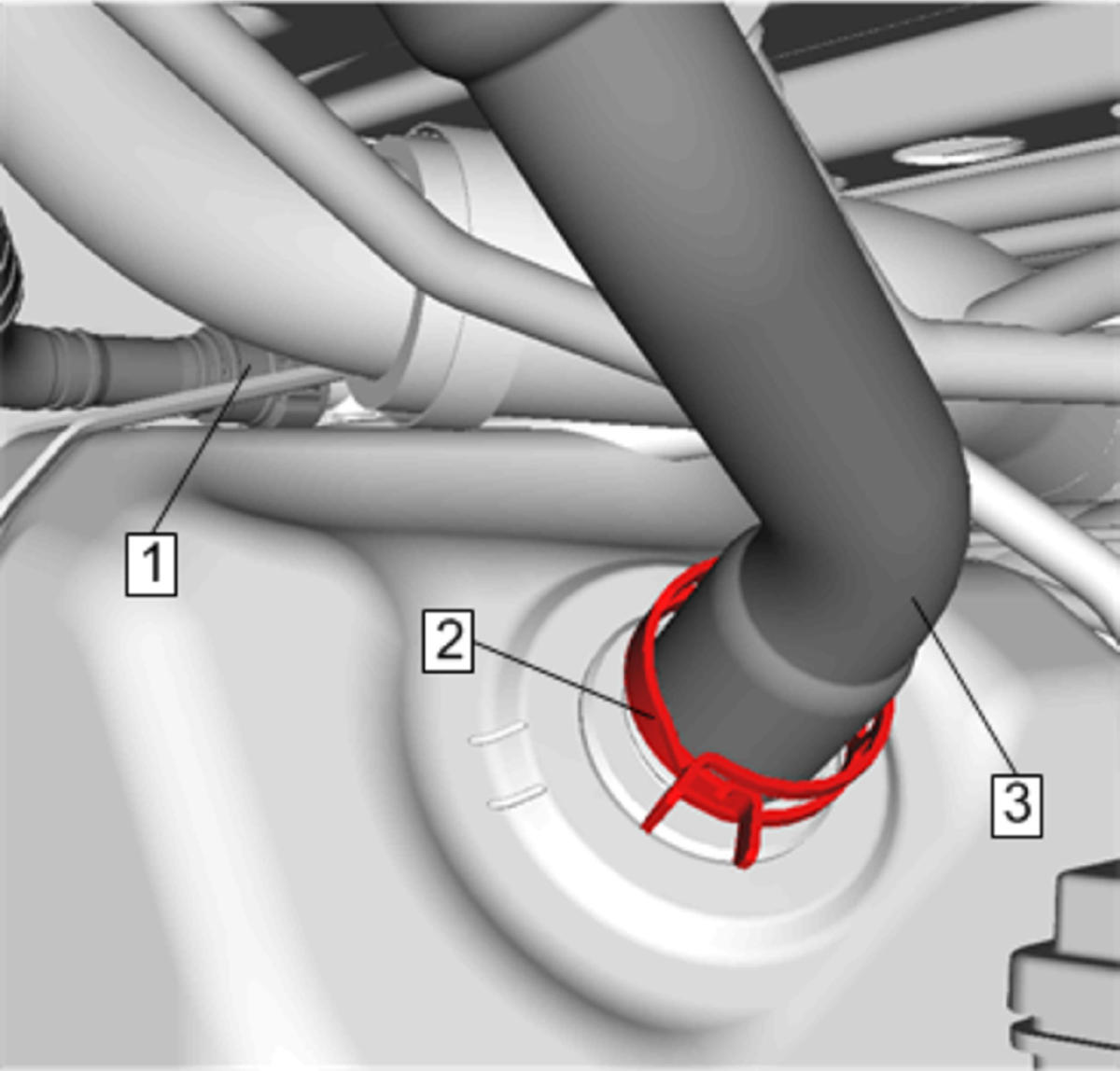

Emission Reduction Fluid Tank Filler Hose (3) - Install
- Emission Reduction Fluid Tank Filler Hose Clamp (2) - Install - Hose Clamp Replacement Guidelines - Spring Type
- Emission Reduction Fluid Tank Filler Vent Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

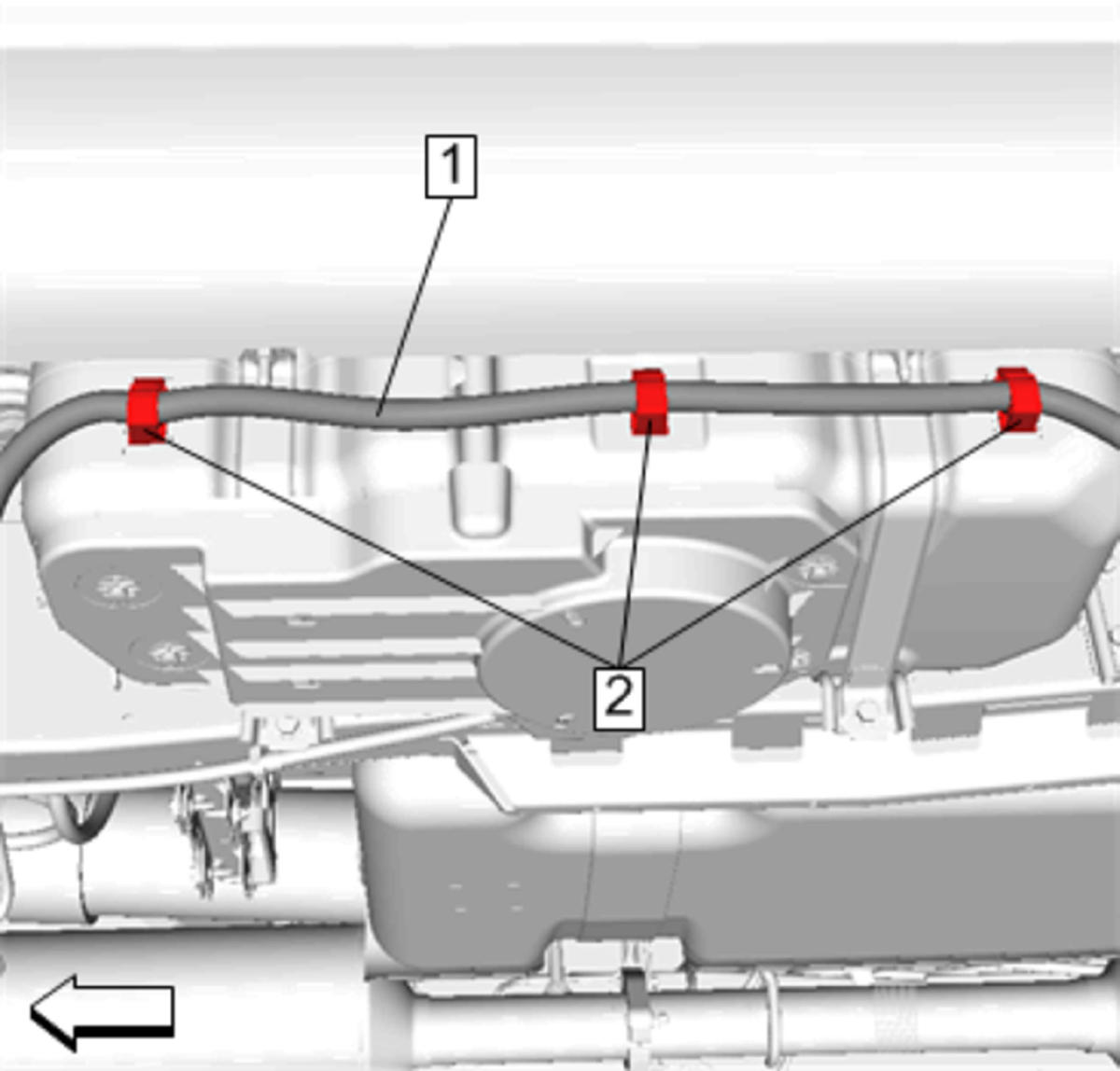

Auxiliary Battery Positive Cable (1) @ Retainer (2) - Install [3x]
- Lower the vehicle.
- Refill the emission reduction fluid tank.
CAUTION:
Refer to Fastener Caution .
