Emission Reduction Fluid Tank Filler Hose Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

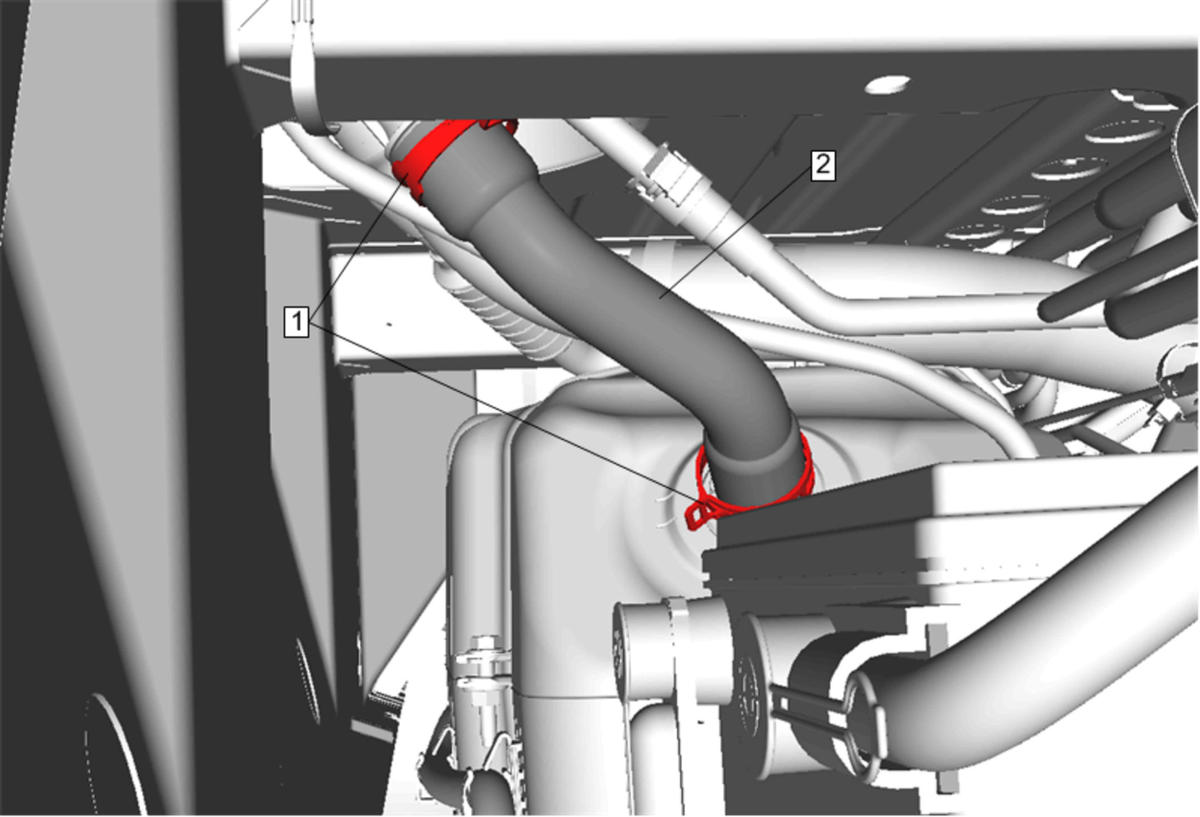

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle Drain the emission reduction fluid tank below the filler hose. Emission Reduction Fluid Tank Draining
1	Emission Reduction Fluid Tank Filler Hose Clamp [2x] Hose Clamp Replacement Guidelines - Spring Type
2	Emission Reduction Fluid Tank Filler Hose

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Lifting and Jacking the Vehicle
Drain the emission reduction fluid tank below the filler hose. Emission Reduction Fluid Tank Draining

Emission Reduction Fluid Tank Filler Hose Clamp [2x]
Hose Clamp Replacement Guidelines - Spring Type

Emission Reduction Fluid Tank Filler Hose
