Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:
Do not allow the crankshaft position sensor reluctor ring to come into contact with external magnetic fields or sharp metal objects. Do not drop the crankshaft position sensor reluctor ring. Do not damage the rubberized encoder track. Failure to follow these precautions may cause damage to the component.
Crankshaft Position Sensor (2) - Install
- Crankshaft Position Sensor Bolt (1) - Install and tighten 5N.m (44 lb in)

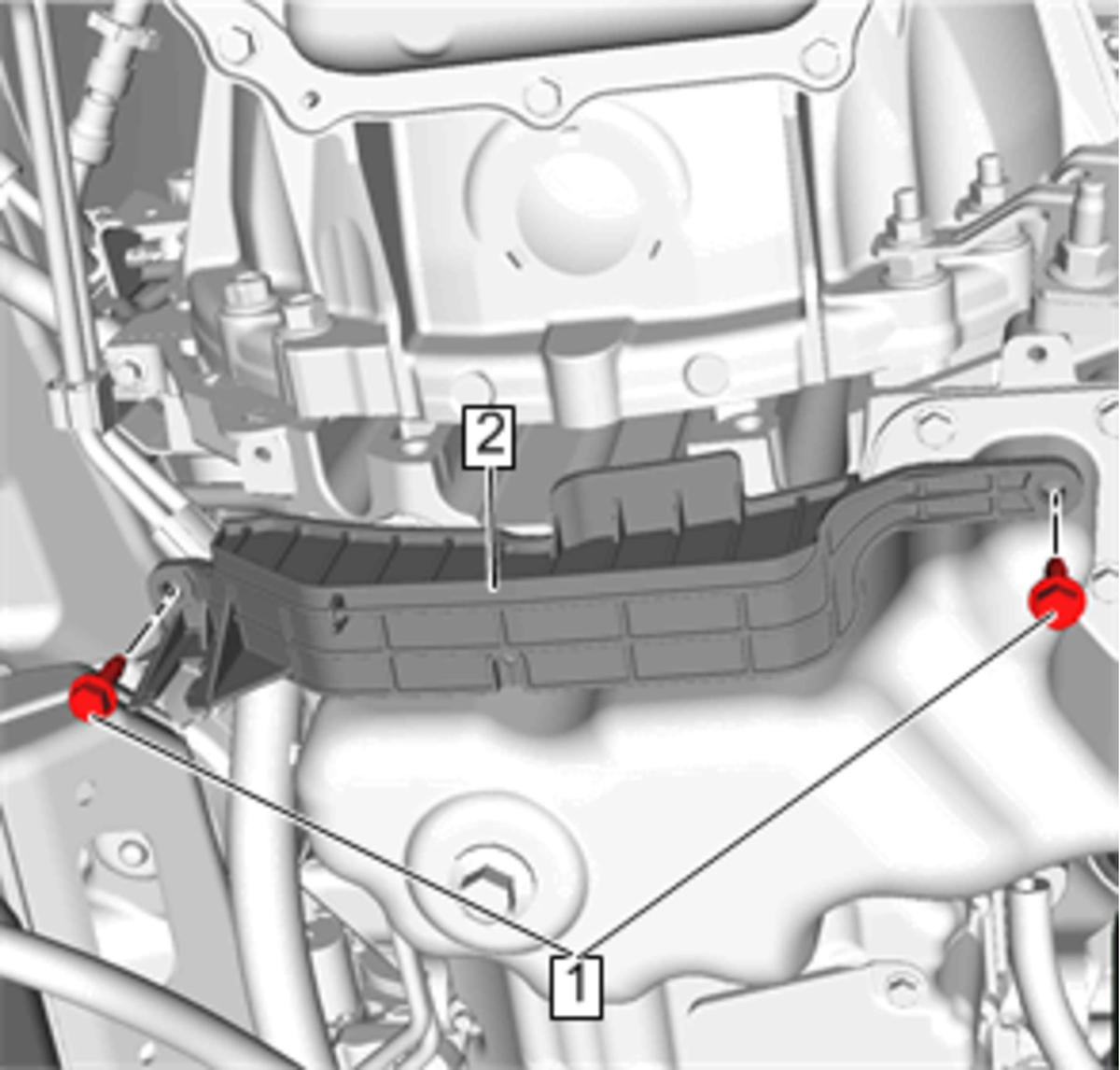

Crankshaft Position Sensor Bracket (2) - Install
- Crankshaft Position Sensor Bracket Bolt (1) - Install and tighten [2x] 9N.m (80 lb in)

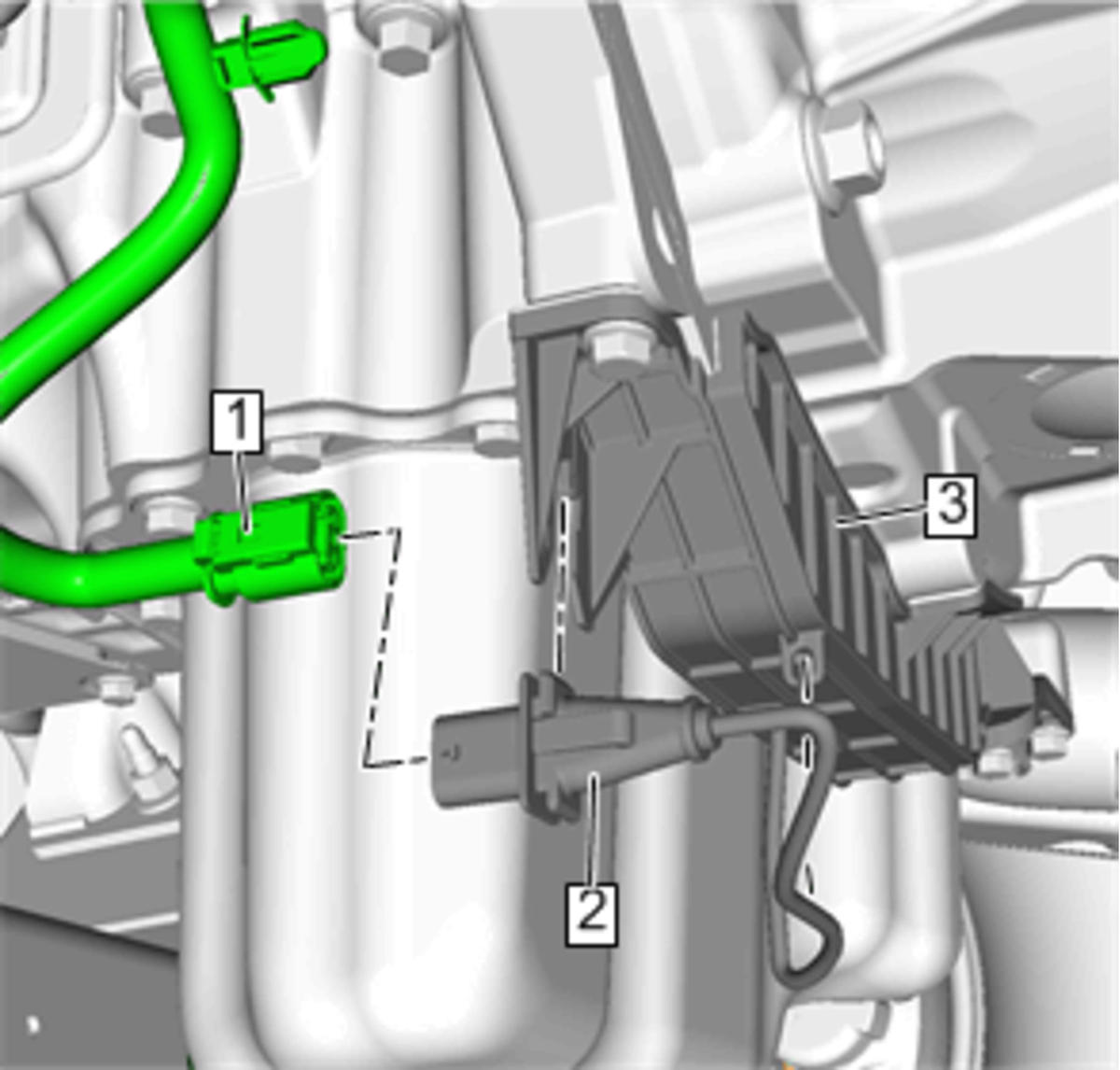

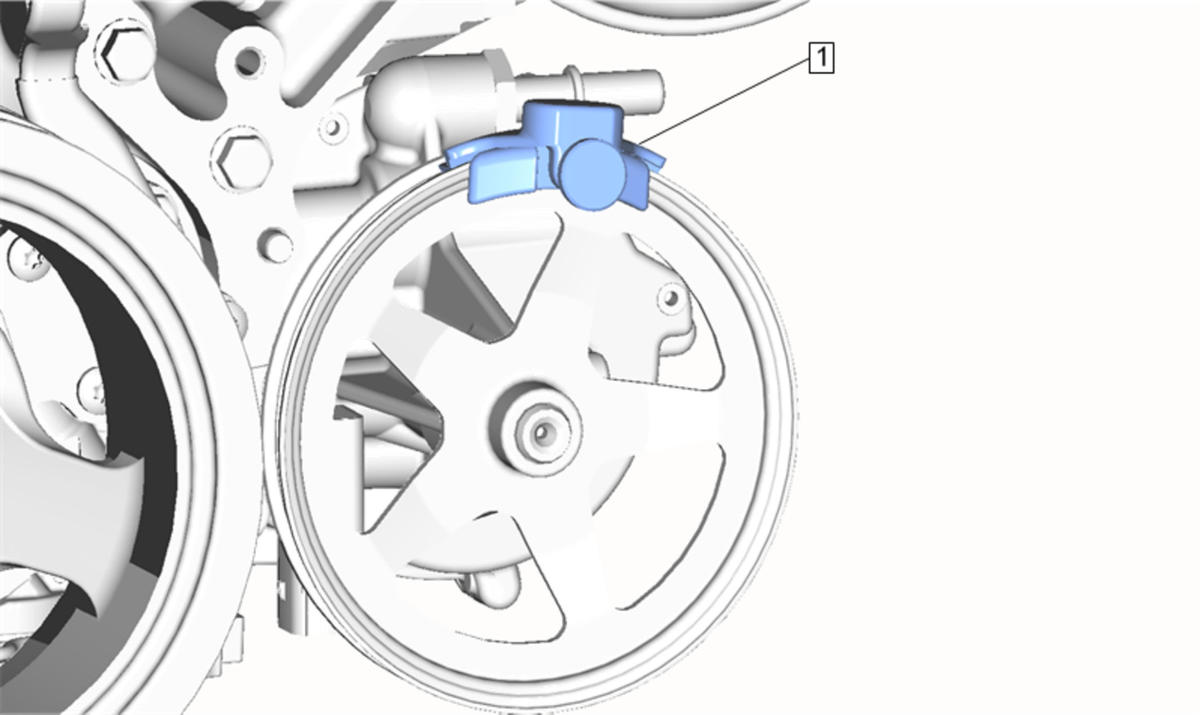

Electrical Connector (2) @ Crankshaft Position Sensor Bracket (3) - Install [2x]
- Engine Wiring Harness (1) @ Electrical Connector (2) - Connect
- Remove the supports and lower the vehicle. Lifting and Jacking the Vehicle
- Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
CAUTION:
Refer to Fastener Caution .
