Charge Air Temperature Sensor Replacement (Charge Air Cooler Inlet Air Tube)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

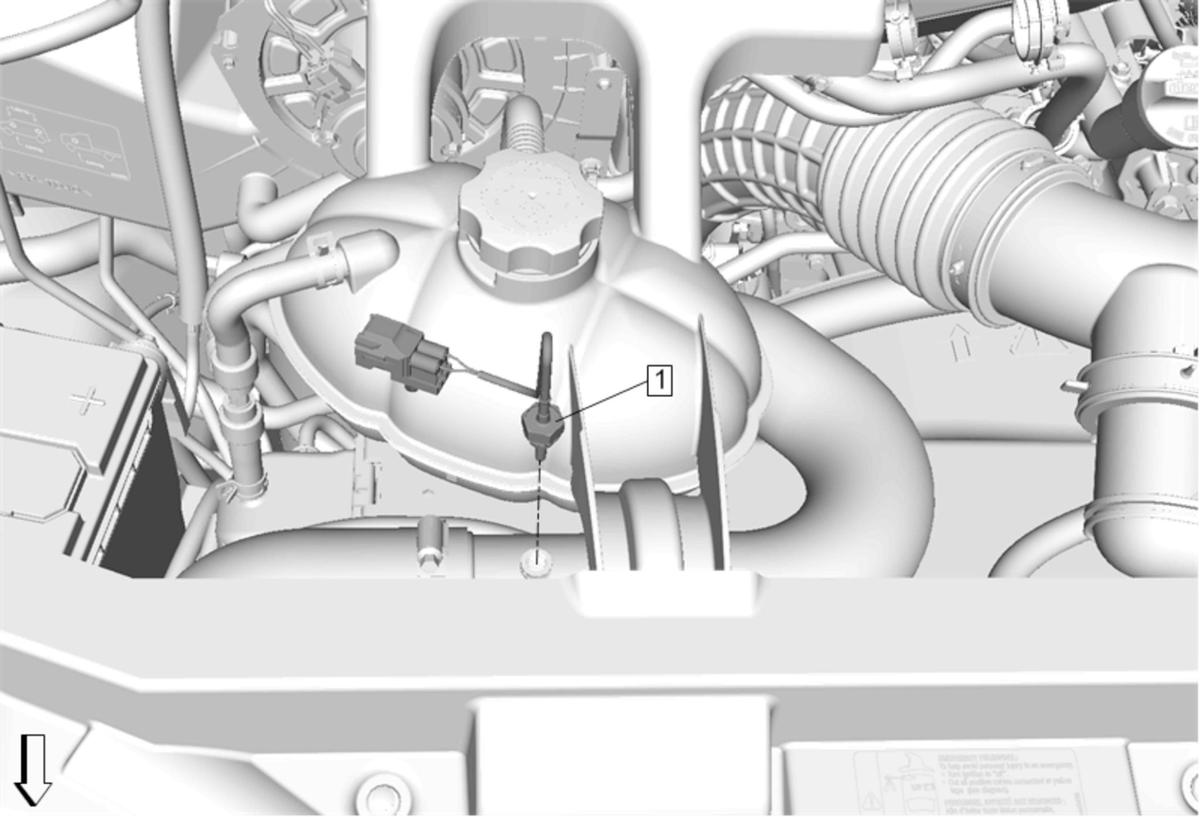

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the electrical connector. |
|
| 1 | Charge Air Temperature Sensor
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 19 N.m (14 lb ft) |
