Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

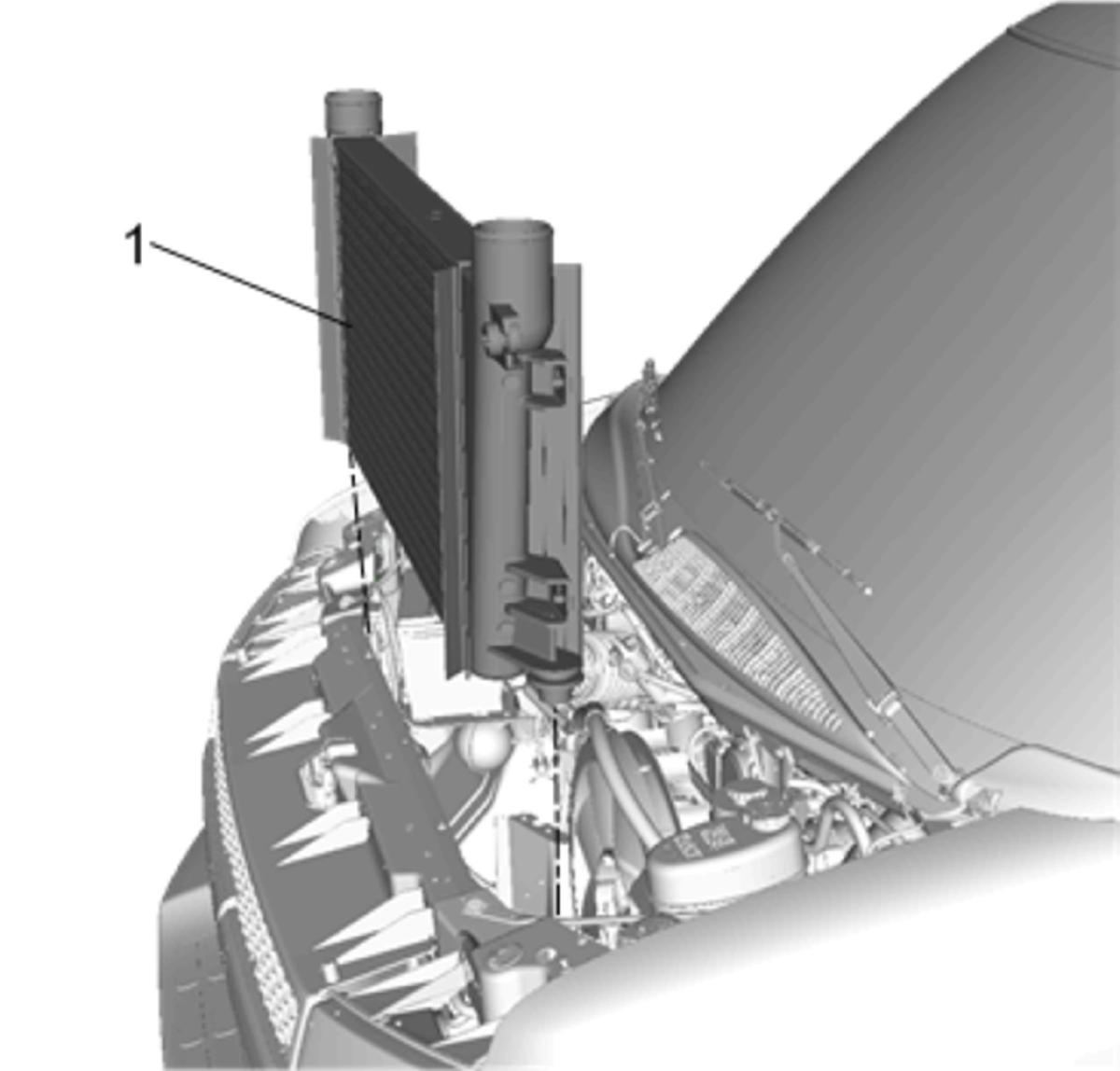

  1. GM4604046Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler (1) - Install

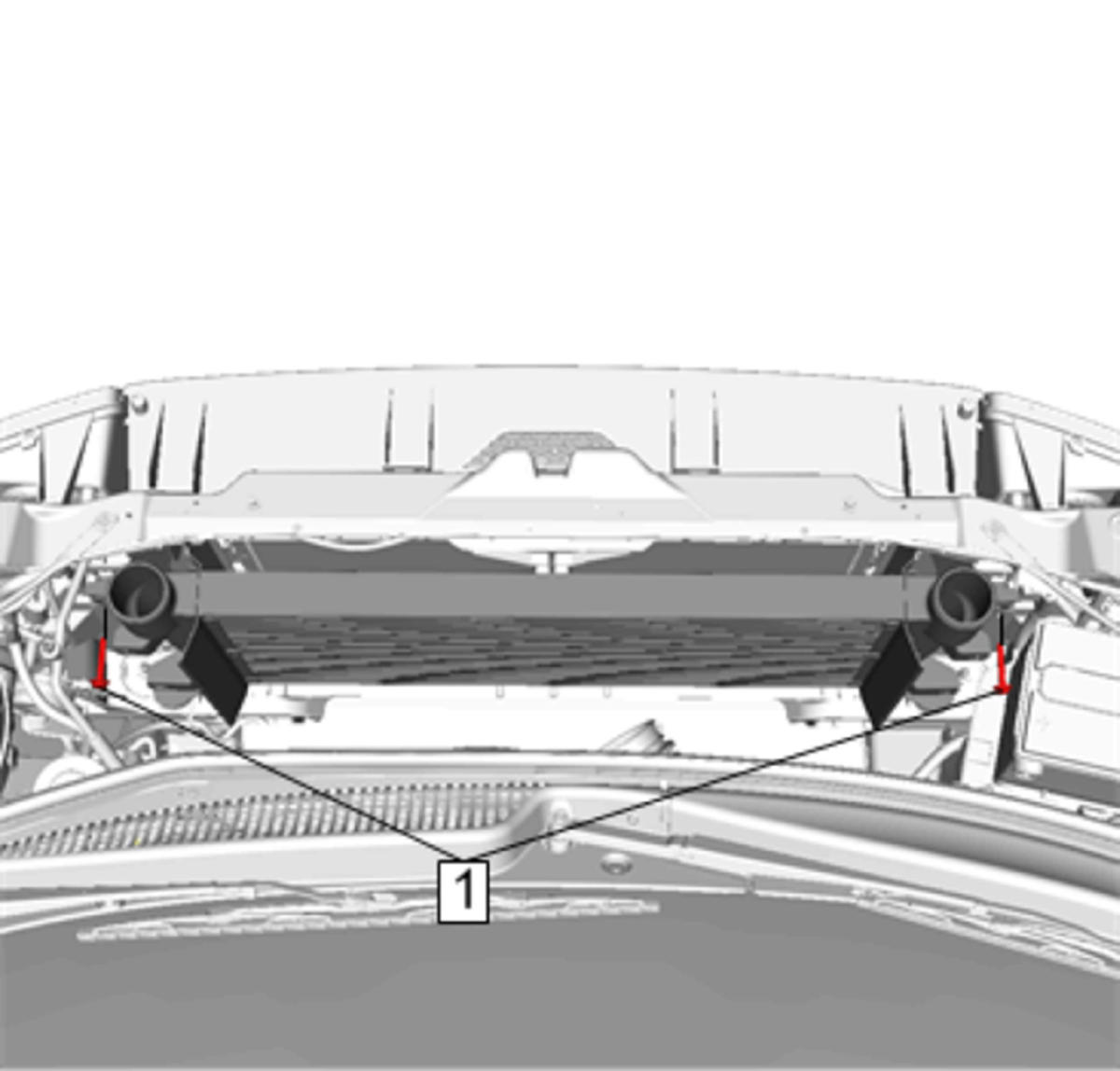

  2. GM4604043Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Charge Air Cooler Bolt (1) - Install and tighten [2x] 22N.m (16 lb ft)

  3. Radiator - Install - Radiator Replacement (LWN) .
