Steering Gear Housing Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

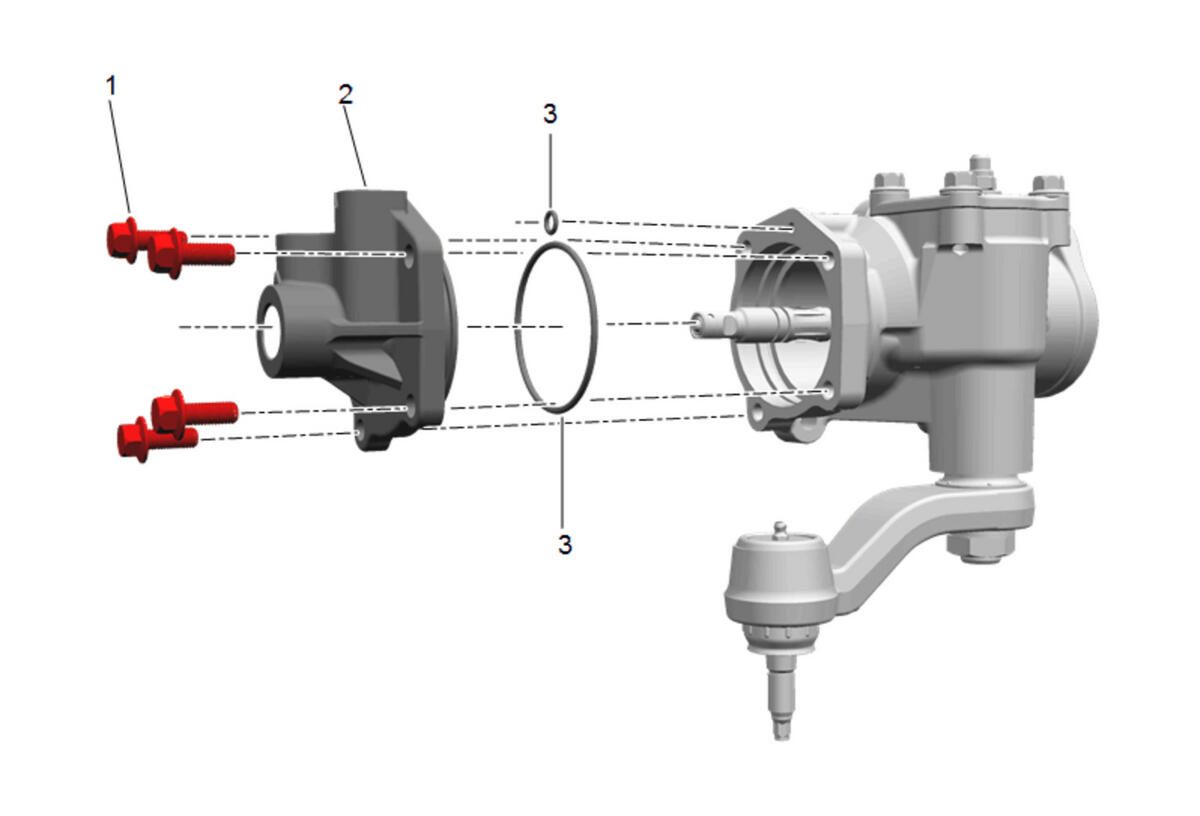

| Callout | Component Name |
|---|---|
| Preliminary Procedure Steering Gear Replacement (Without LWN) , or Steering Gear Replacement (With LWN) |
|
| 1 | Steering Gear Housing Bolt [4x]
CAUTION:
Tighten 62 N.m (46 lb ft) |
| 2 | Steering Gear Housing |
| 3 | Steering Gear Housing Seal[2x] |
