Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

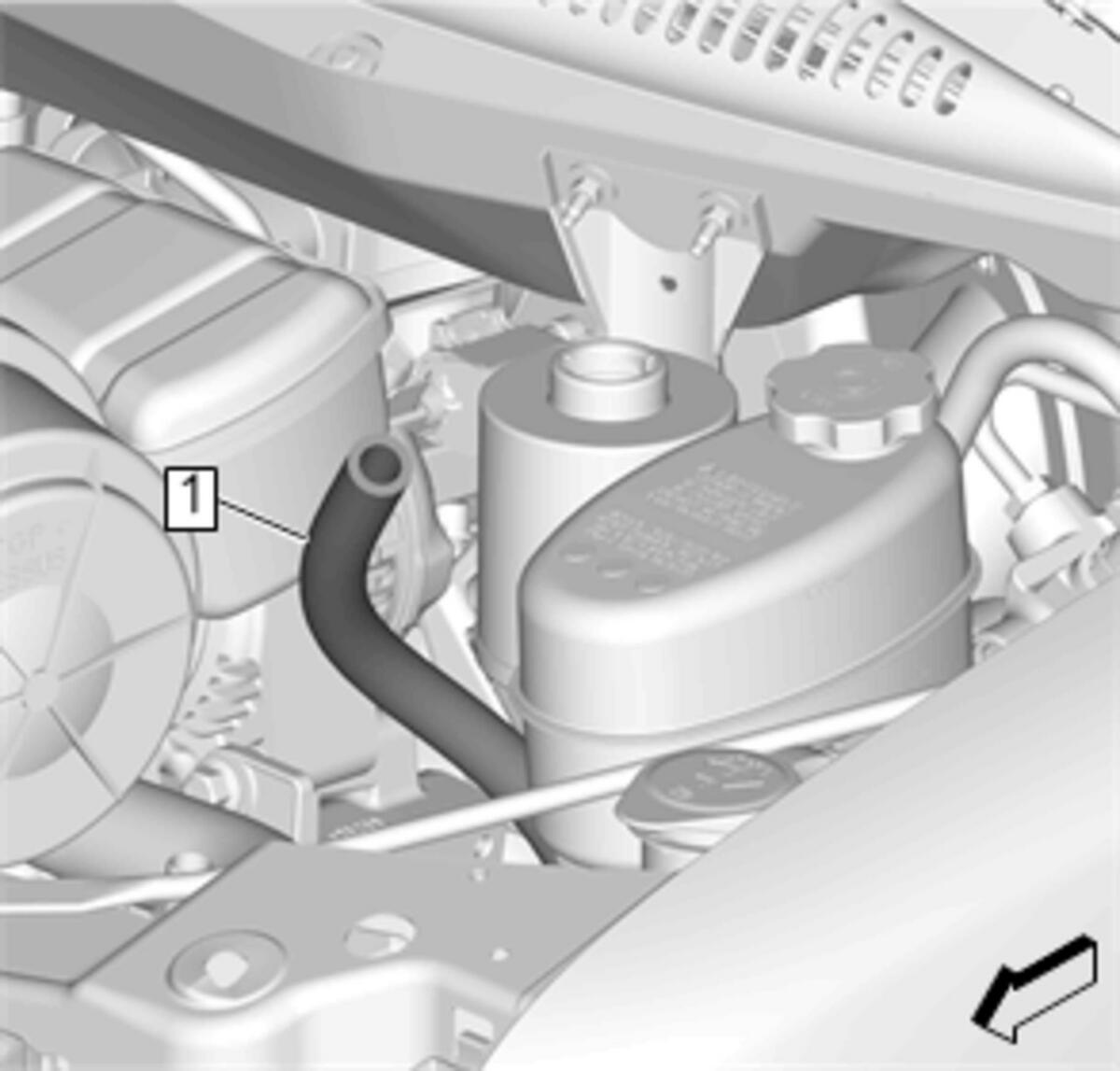

  1. GM4626283Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Installing Hoses without Twists or Bends Caution .

    Position the power steering fluid reservoir outlet hose (1) on the vehicle through the top of the engine compartment.

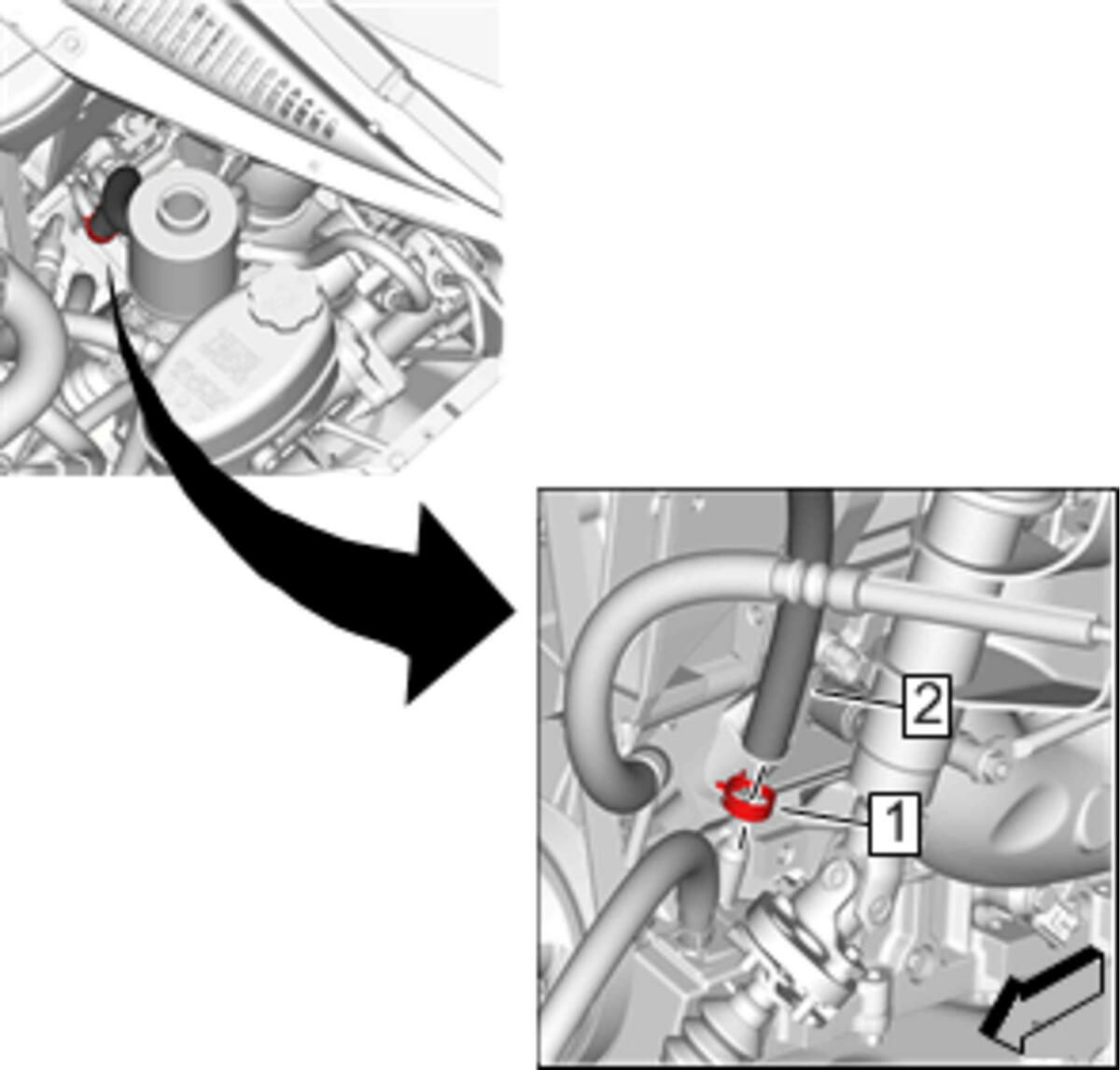

  2. GM4626282Courtesy of GENERAL MOTORS COMPANY

    Power Steering Fluid Reservoir Outlet Hose(2) @ Power Steering Pump - Install

  3. Power Steering Fluid Reservoir Outlet Hose Clamp(1) @ Power Steering Pump - Engage

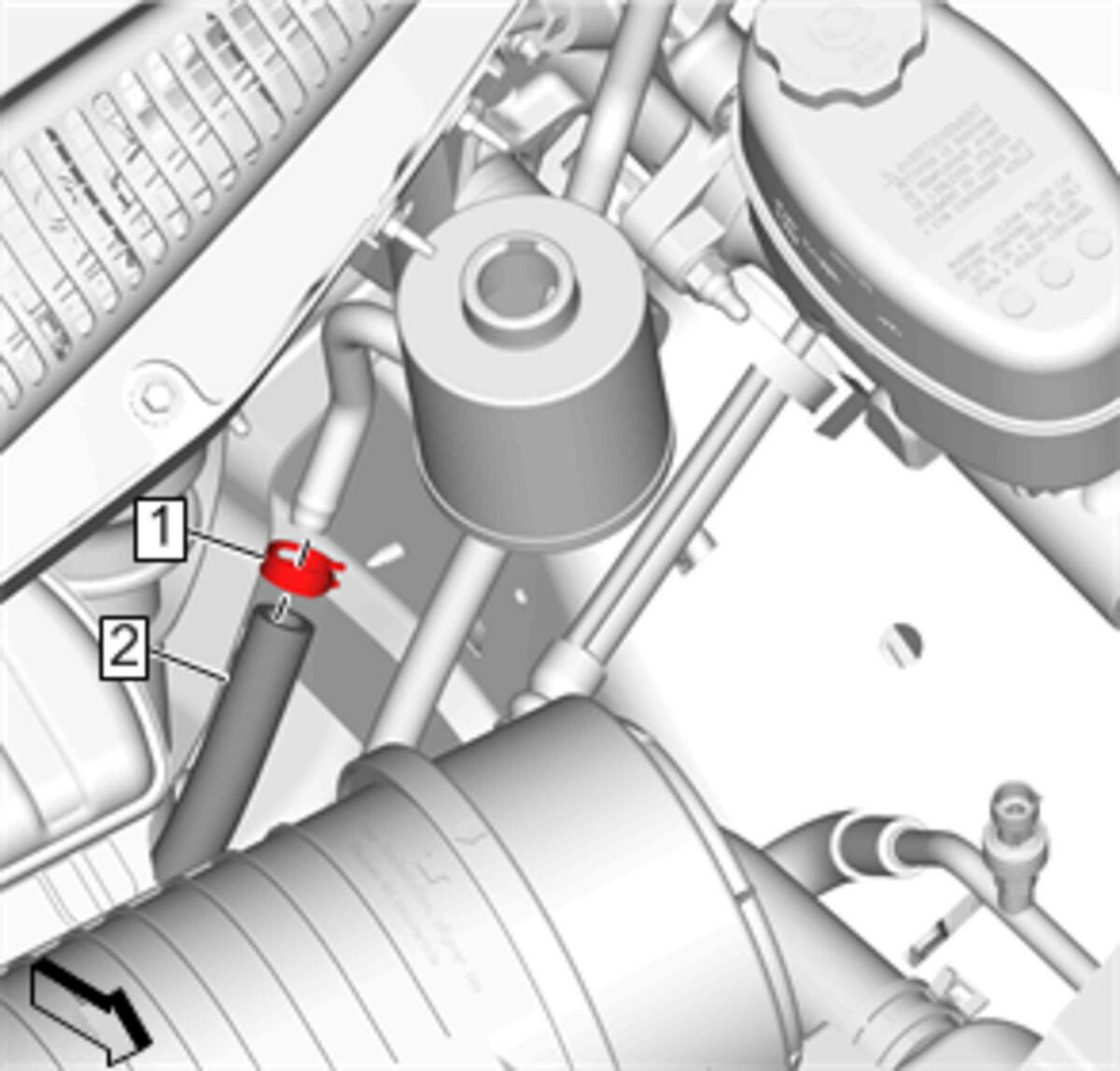

  4. GM4626280Courtesy of GENERAL MOTORS COMPANY

    Power Steering Fluid Reservoir Outlet Hose(2) @ Power Steering Fluid Reservoir - Install

  5. Power Steering Fluid Reservoir Outlet Hose Clamp(1) @ Power Steering Fluid Reservoir - Engage
  6. Fill and bleed the power steering system. Power Steering System Bleeding
