Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Remove as much power steering fluid from the power steering fluid reservoir as possible.
Charge Air Cooler Outlet Air Hose - Remove - Charge Air Cooler Outlet Air Hose Replacement
Charge Air Cooler Inlet Air Tube - Remove - Charge Air Cooler Inlet Air Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

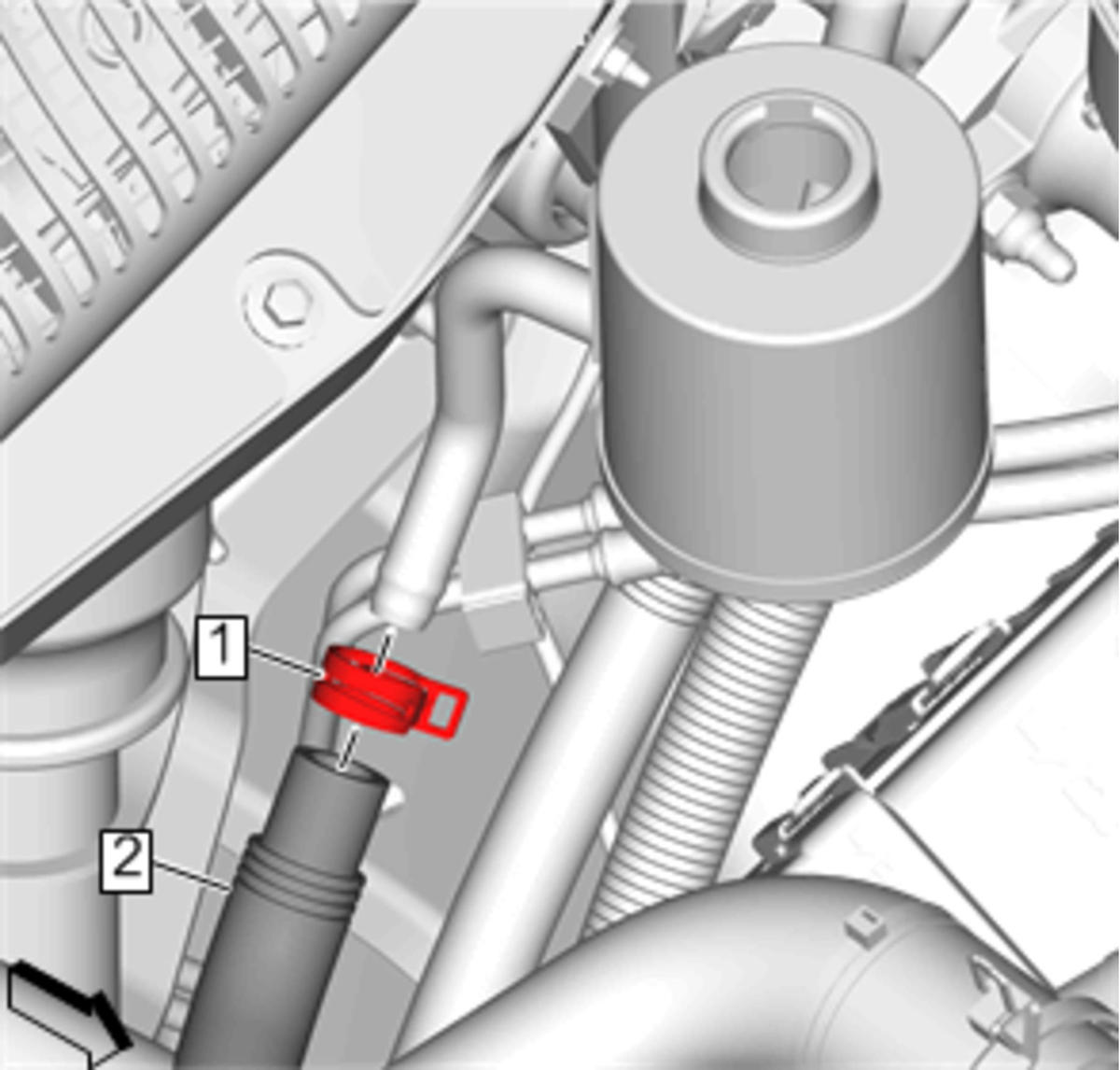

Power Steering Fluid Reservoir Outlet Hose Clamp(1) @ Power Steering Fluid Reservoir - Disengage

CAUTION:

Refer to Power Steering Hose Disconnected Caution .

Power Steering Fluid Reservoir Outlet Hose(2) @ Power Steering Fluid Reservoir - Remove
Courtesy of GENERAL MOTORS COMPANY

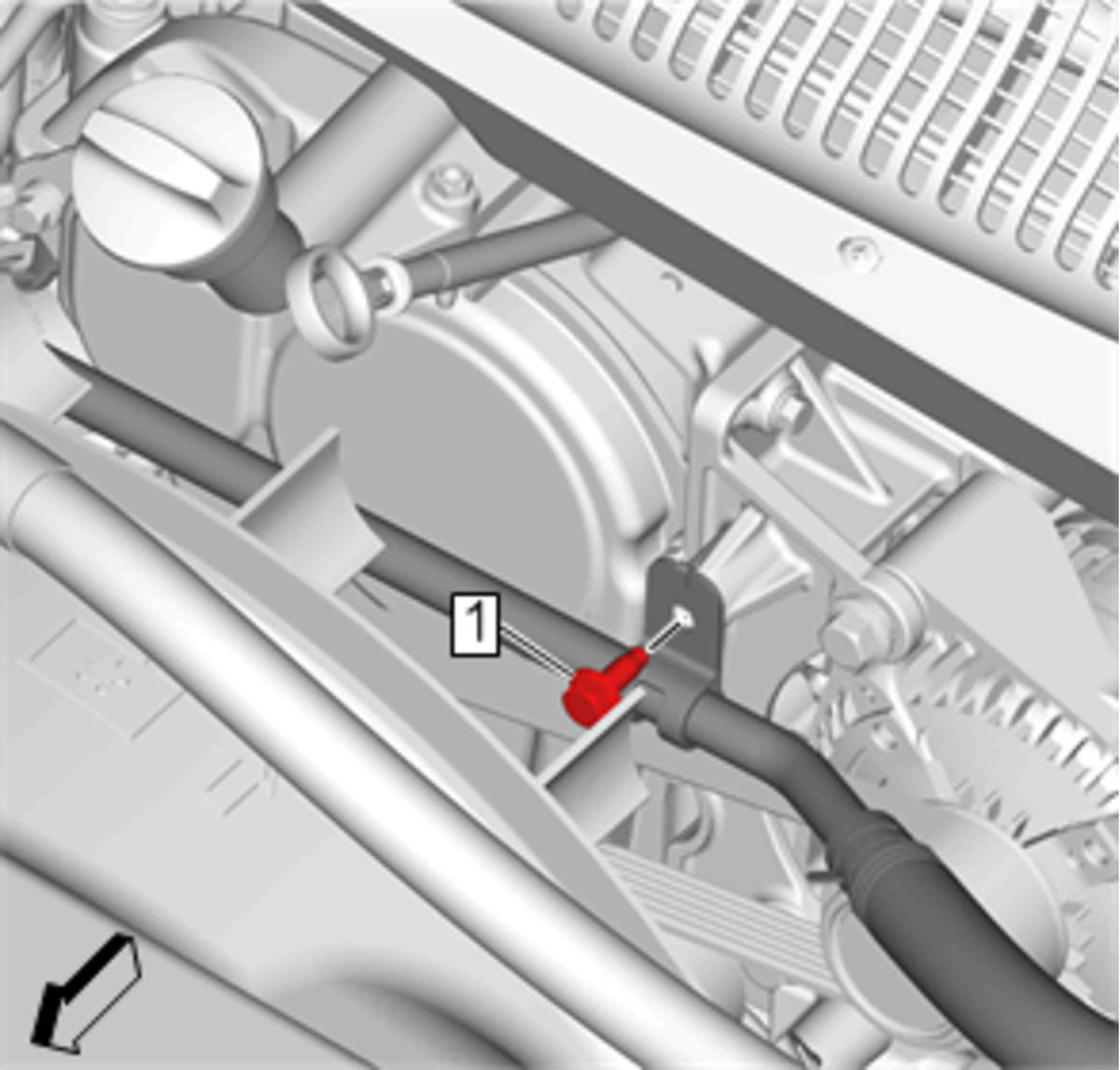

Power Steering Fluid Reservoir Outlet Hose Clip Bracket Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

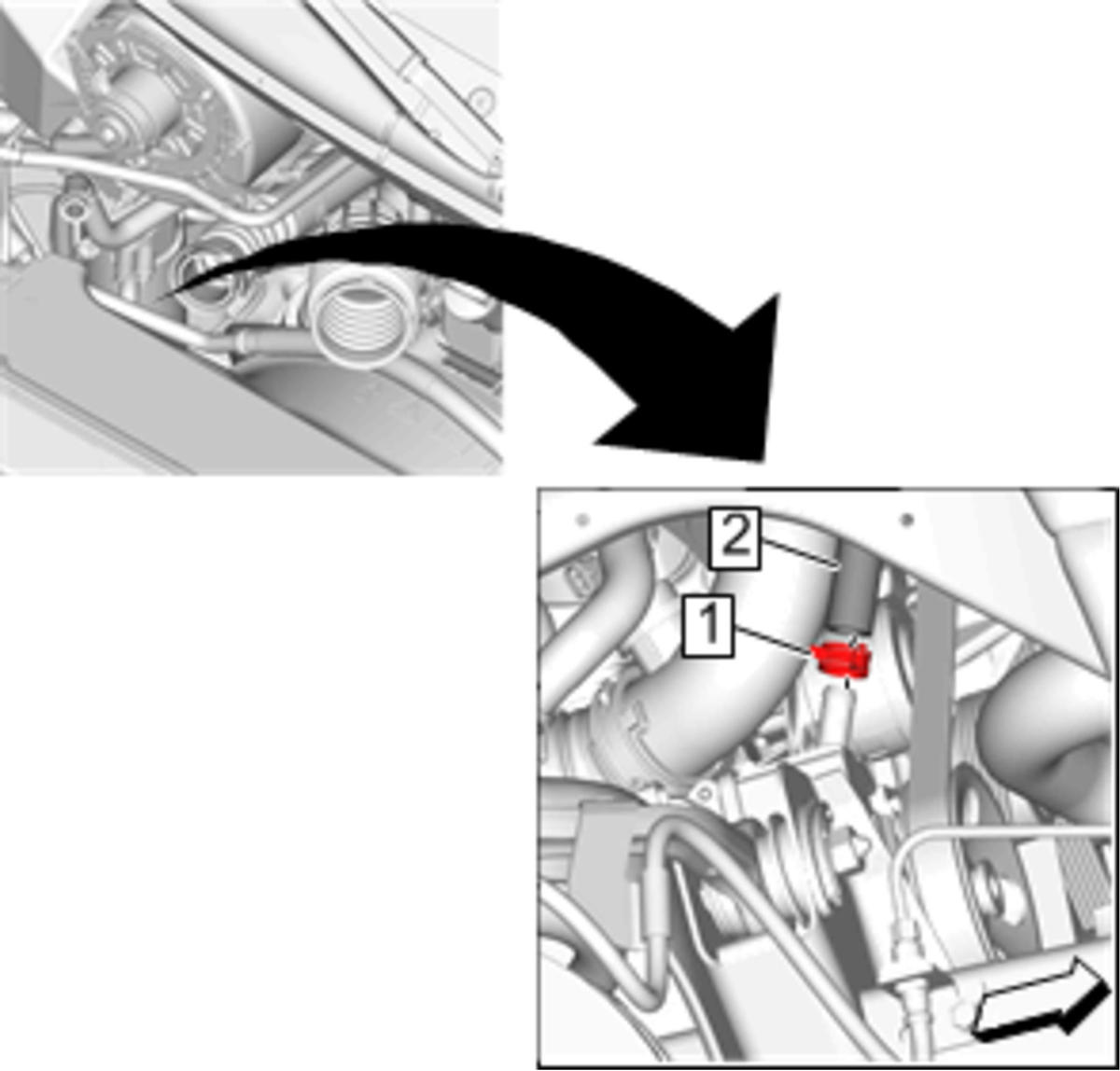

Power Steering Fluid Reservoir Outlet Hose Clamp(1) @ Power Steering Pump - Disengage

CAUTION:

Refer to Power Steering Hose Disconnected Caution .

Power Steering Fluid Reservoir Outlet Hose(2) @ Power Steering Pump - Remove
Courtesy of GENERAL MOTORS COMPANY

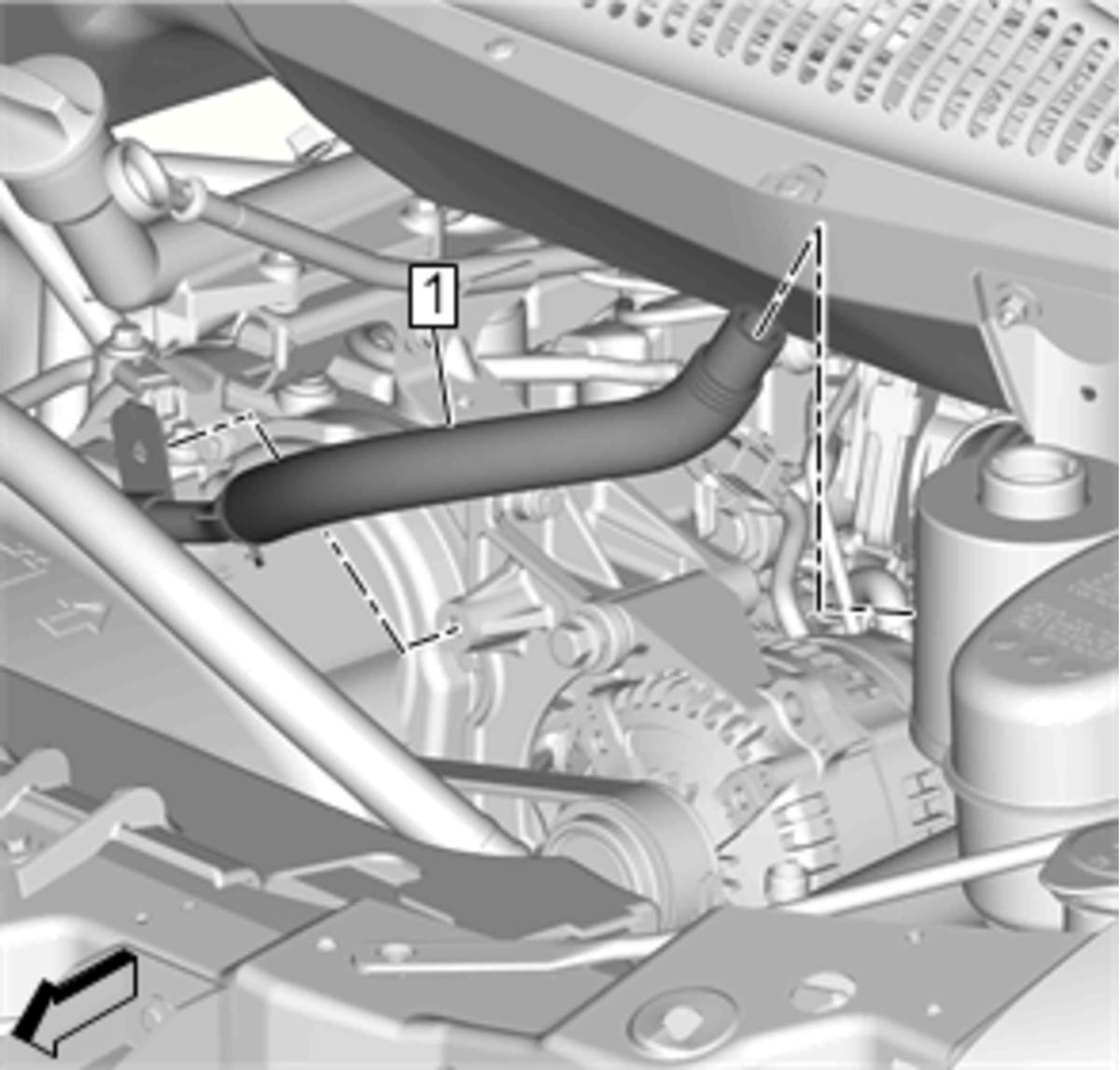

Remove the power steering fluid reservoir outlet hose (1) from the vehicle through the top of the engine compartment.
