Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:

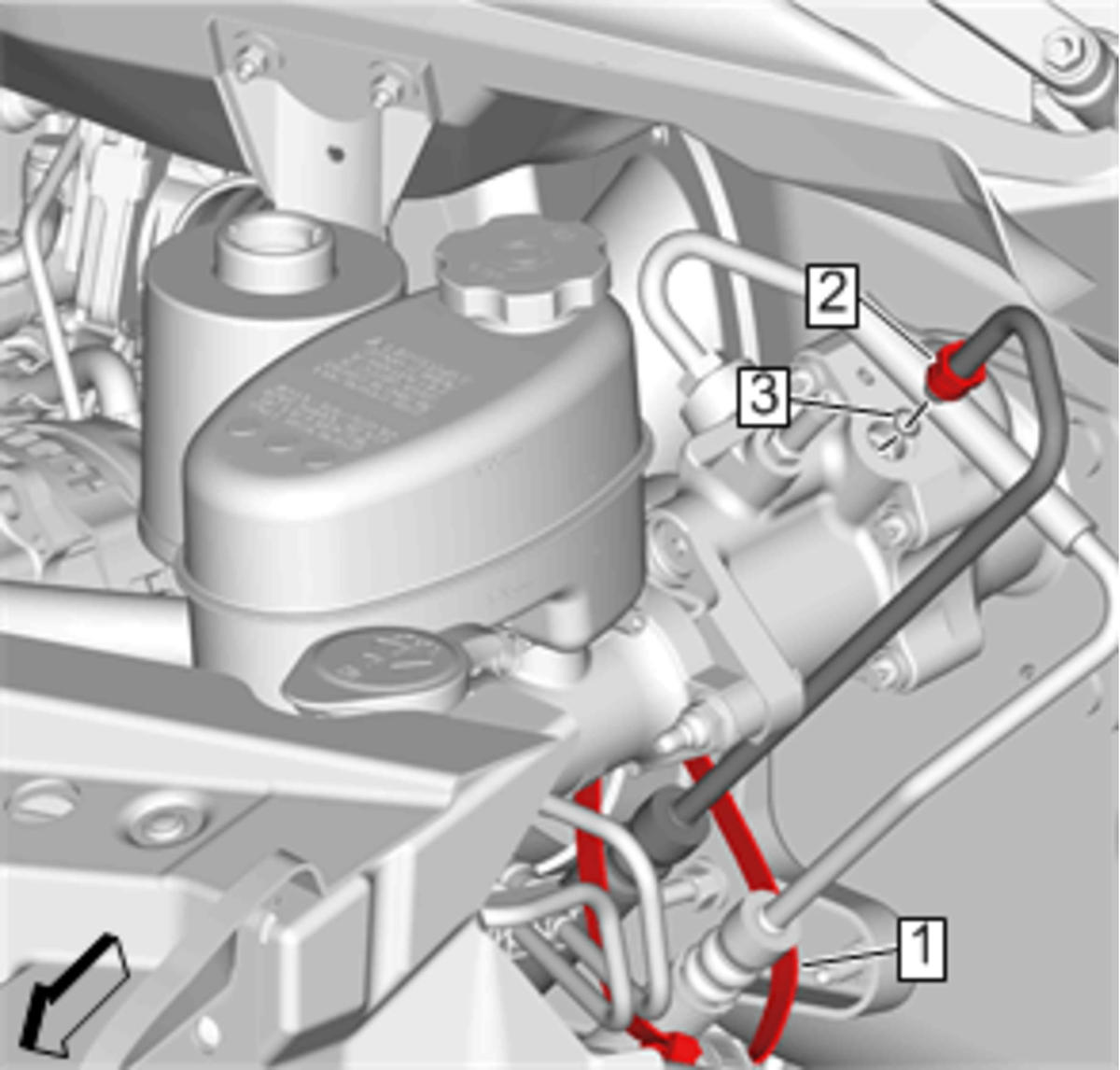

Position the power brake booster outlet hose (1) on the vehicle through the top of the engine compartment.
Install a NEW power brake booster outlet hose seal (3) on the power brake booster outlet hose.
Apply a small amount of power steering fluid on the seal to aid in installation.
- Power Brake Booster Outlet Hose(2) @ Power Brake Booster - Install and tighten34 N.m (25 lb ft)

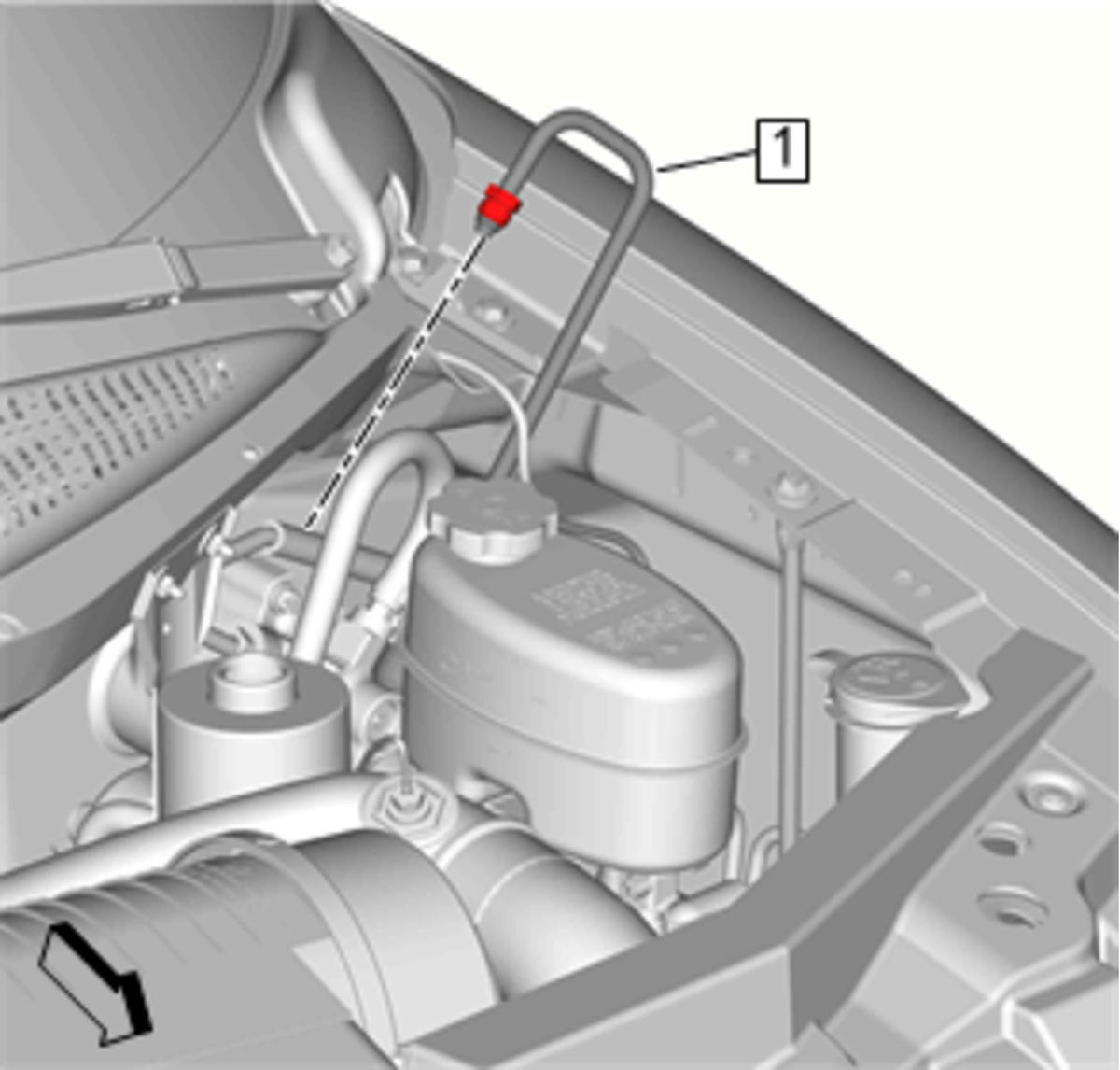

- Install a NEW power brake booster outlet hose strap (1).
- Raise the vehicle.

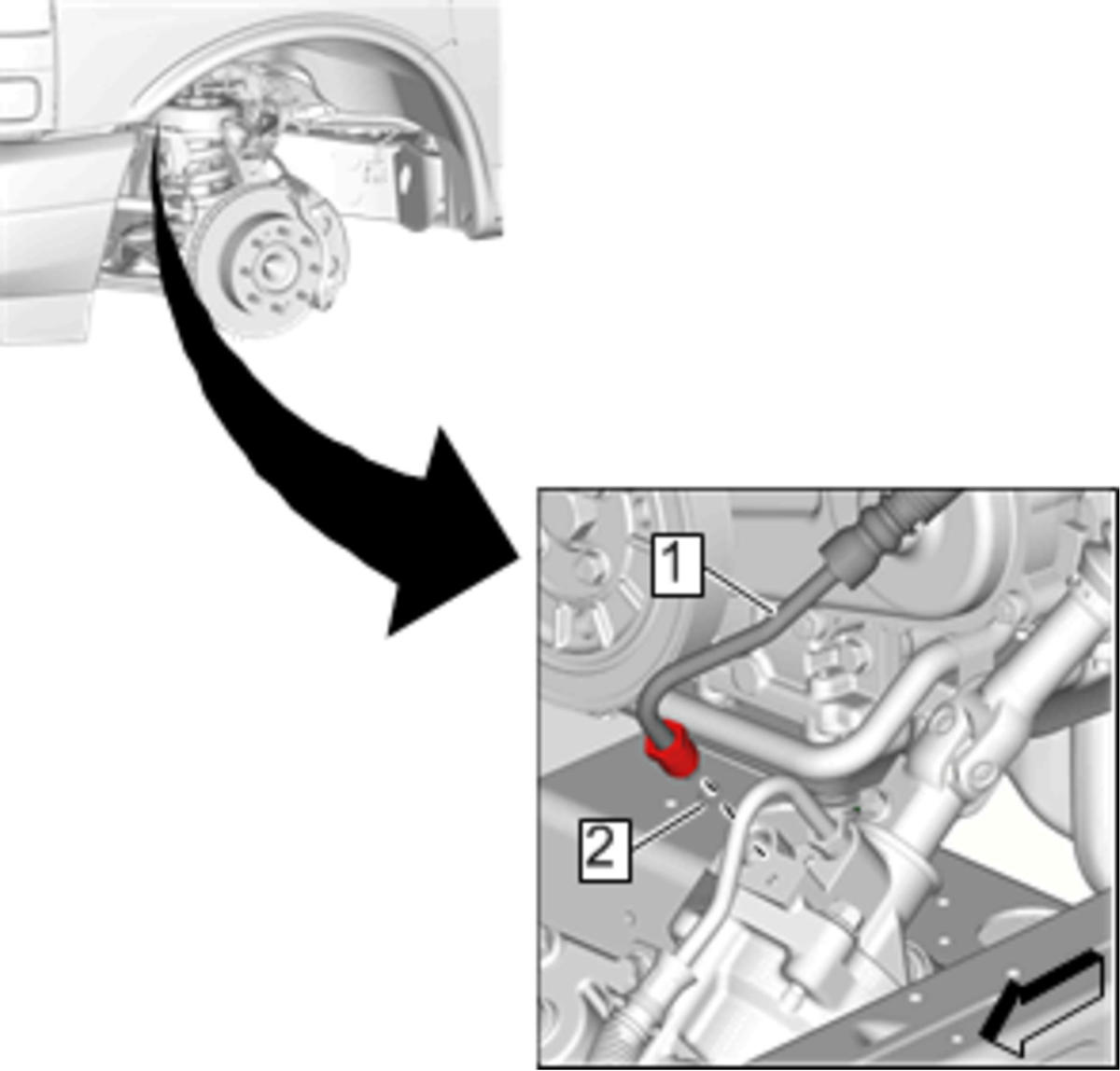

Install a NEW power brake booster outlet hose seal (2) on the power brake booster outlet hose.
Apply a small amount of power steering fluid on the seal to aid in installation.
- Power Brake Booster Outlet Hose(1) @ Steering Gear - Install and tighten34 N.m (25 lb ft)
Power Steering Gear Outlet Hose(1) @ Steering Gear - Install - Power Steering Gear Outlet Pipe/Hose Replacement (With LWN)
- Wiring Harness @ Power Brake Booster - Install
- Front Wheelhouse Splash Shield-Left Side - Install - Wheelhouse Splash Shield Replacement (Left Side) , or Wheelhouse Splash Shield Replacement (Right Side)
- Lower the vehicle.
- Charge Air Cooler Outlet Air Hose - Install - Charge Air Cooler Outlet Air Hose Replacement
- Fill and bleed the power steering system. Power Steering System Bleeding
CAUTION:
Refer to Component Fastener Tightening Caution .
