Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Place a drain pan under the vehicle.

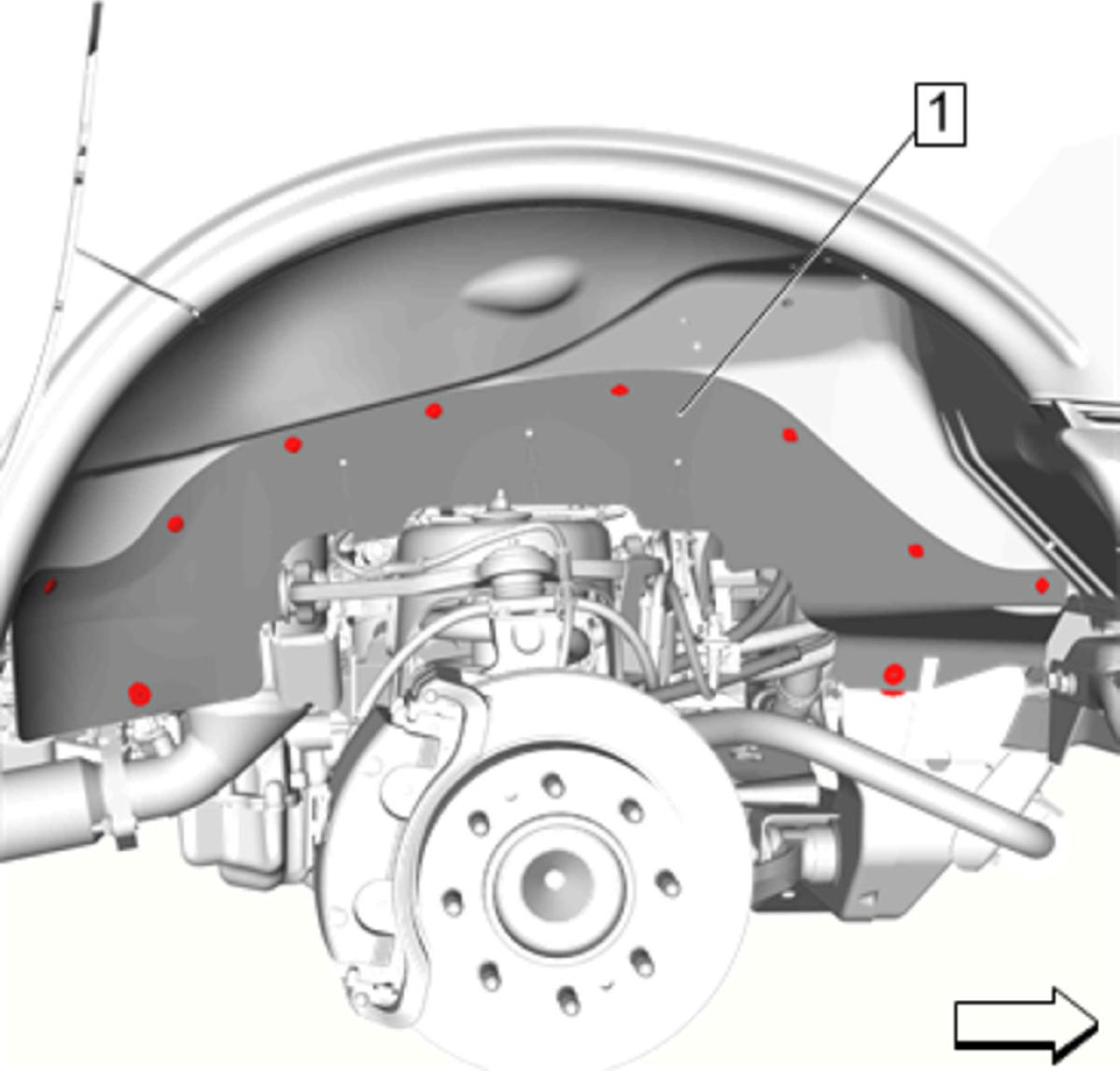

Front Wheelhouse Splash Shield-Right Side (1) - Remove - Wheelhouse Splash Shield Replacement (Left Side)Wheelhouse Splash Shield Replacement (Right Side)
Transmission Fluid Cooler Inlet and Outlet Pipe (2) @ Radiator - Disengage[2x] - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
- Cap the openings to prevent contamination.
- Transmission Fluid Cooler Pipe Clip (1) @ - Engine Coolant Fan Shroud - Unclip

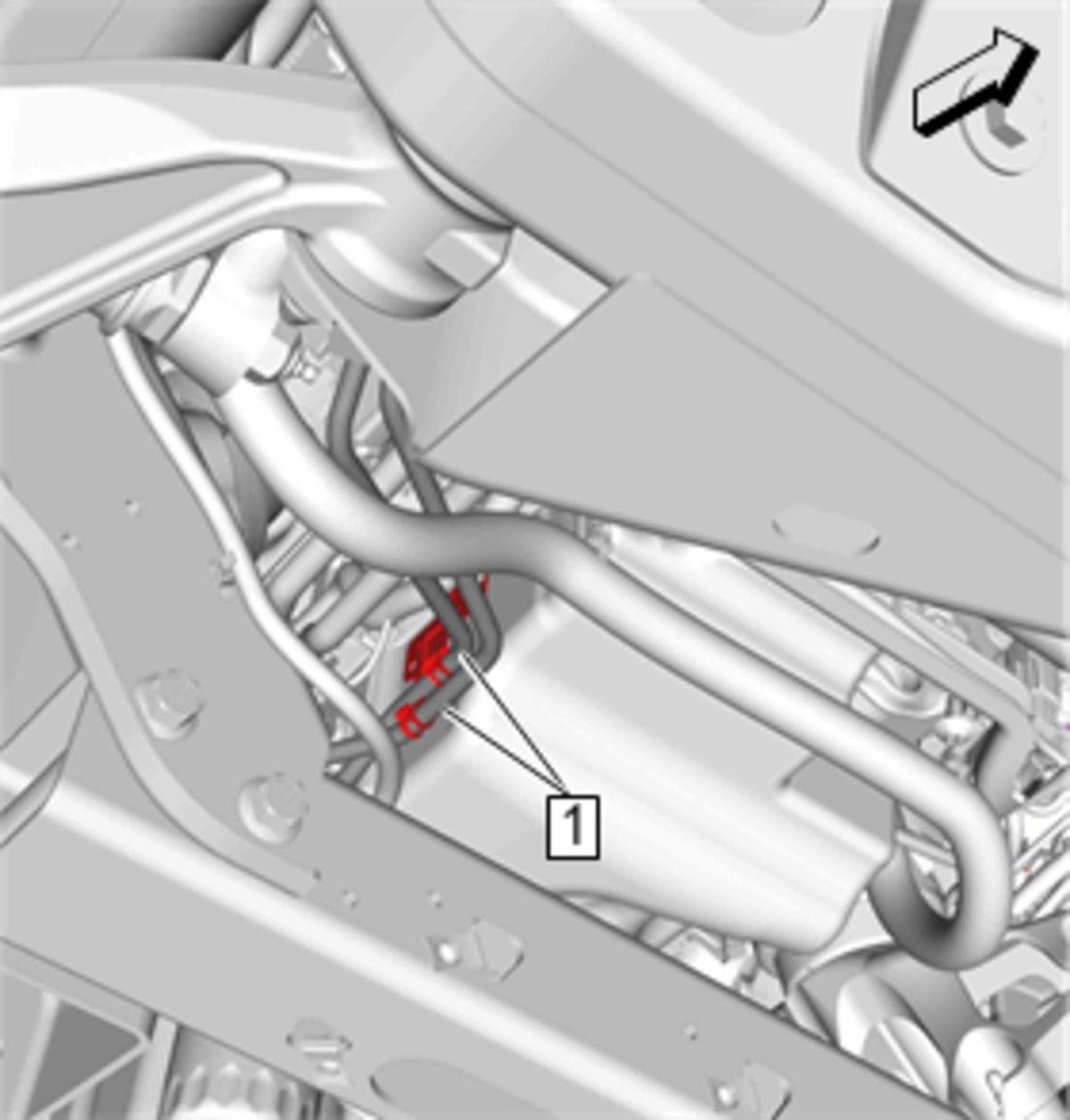

Transmission Fluid Cooler Inlet and Outlet Pipe (1) @ Transmission Fluid Cooler Pipe Bracket - Unclip[2x]

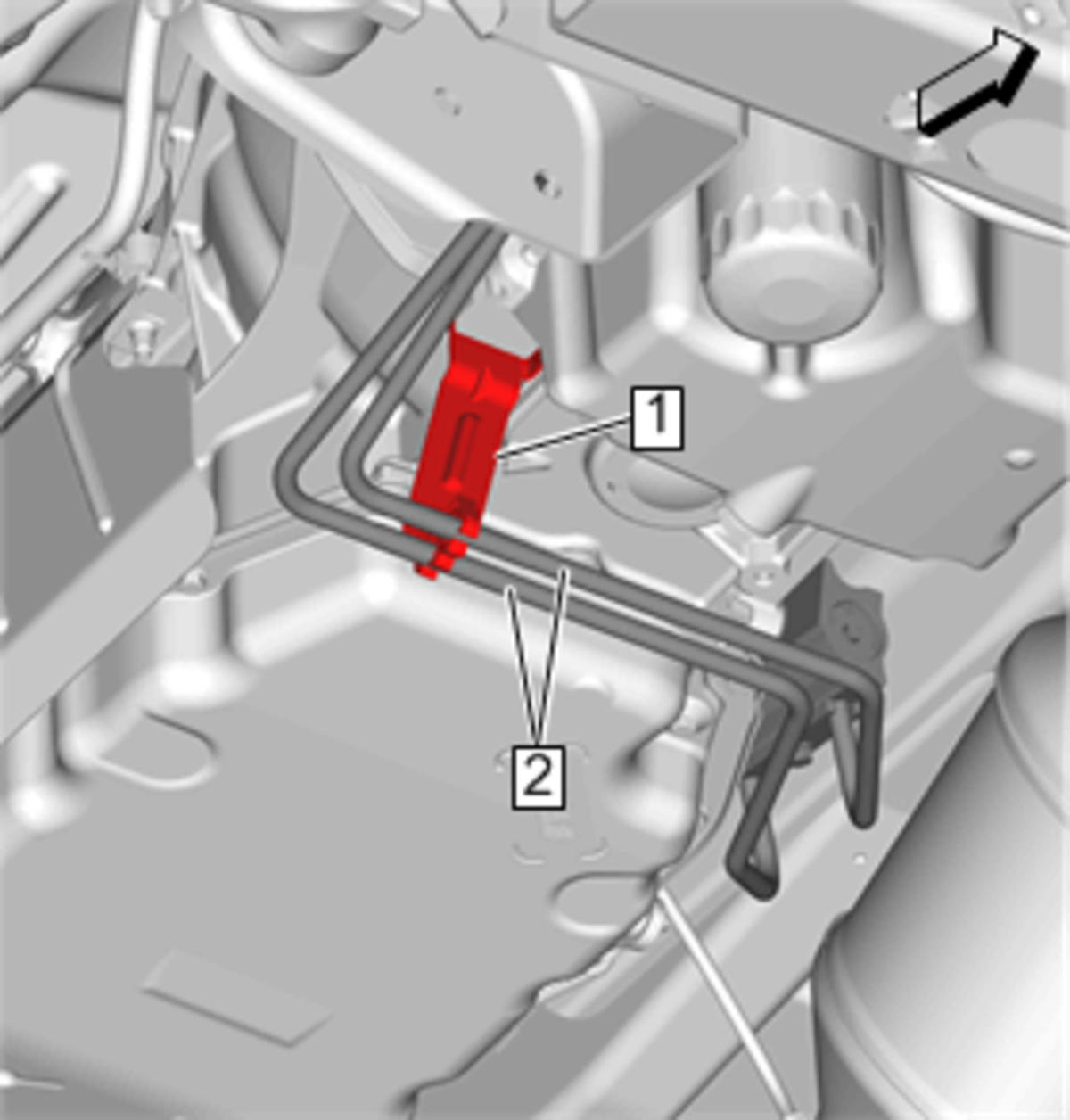

Transmission Fluid Cooler Inlet and Outlet Pipe (2) @ Transmission Fluid Cooler Pipe Bracket (2) - Unclip[2x]

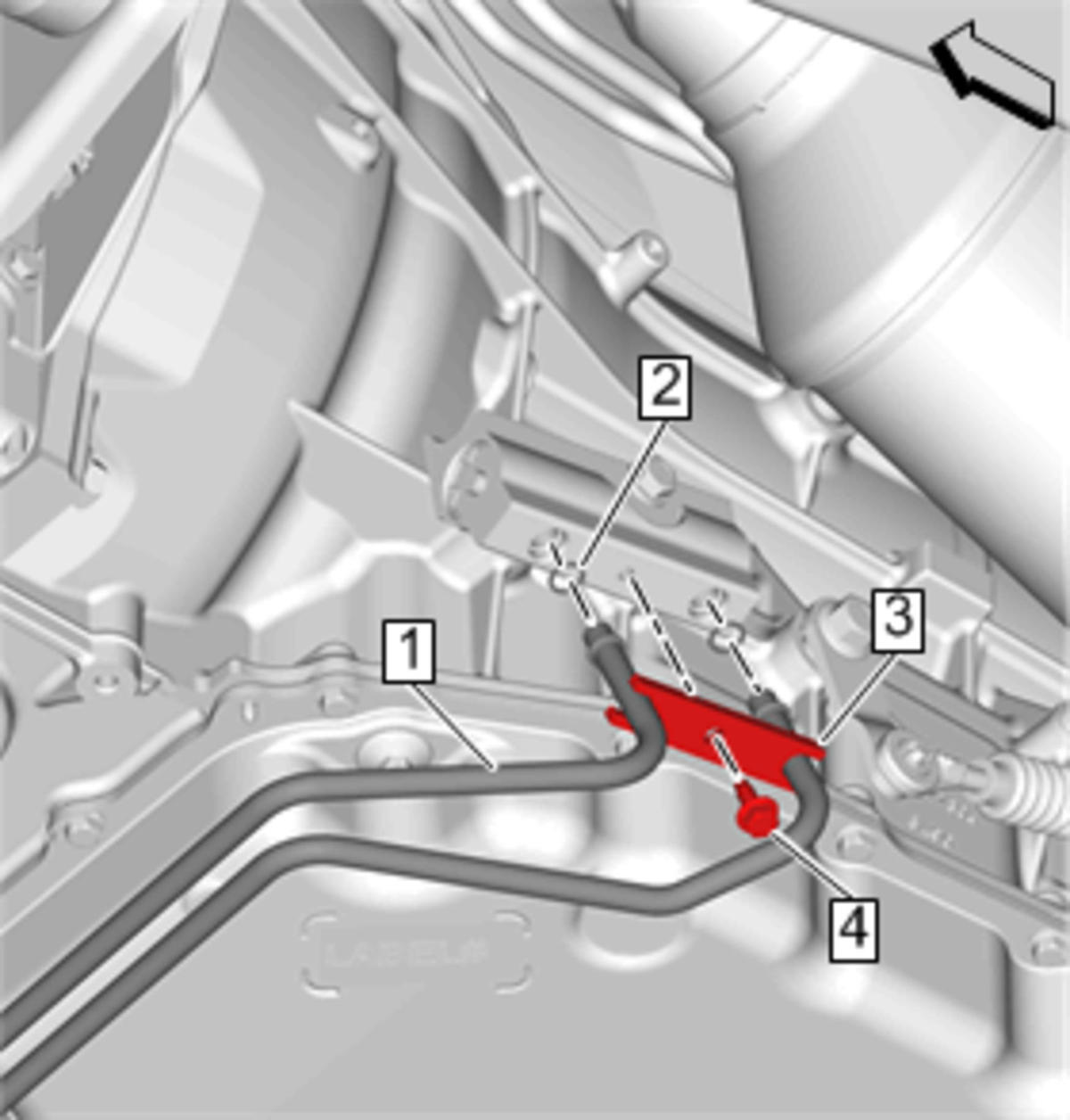

Transmission Fluid Cooler Inlet and Outlet Pipe Bolt (4) - Remove
- Transmission Fluid Cooler Inlet and Outlet Pipe Retainer (3) - Remove
- Transmission Fluid Cooler Inlet and Outlet Pipe (1) - Remove
- Transmission Fluid Cooler Pipe Fitting Seal (2) - Remove and DISCARD[2x]
- Remove the transmission fluid cooler inlet and outlet pipe (1) from the vehicle.
