Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Route the transmission fluid cooler pipes into proper position.
- NOTE:
Remove the caps from the fittings and plugs from the holes before installing the transmission fluid cooler pipes.
Transmission Fluid Cooler Pipe Fitting Seal (4) - Install a NEW seal.
- Transmission Fluid Cooler Pipe (3) - Install
- Transmission Fluid Cooler Pipe Retainer (2) - Install
- Transmission Fluid Cooler Pipe Bolt (1)Install and tighten22 N.m (16 lb ft)

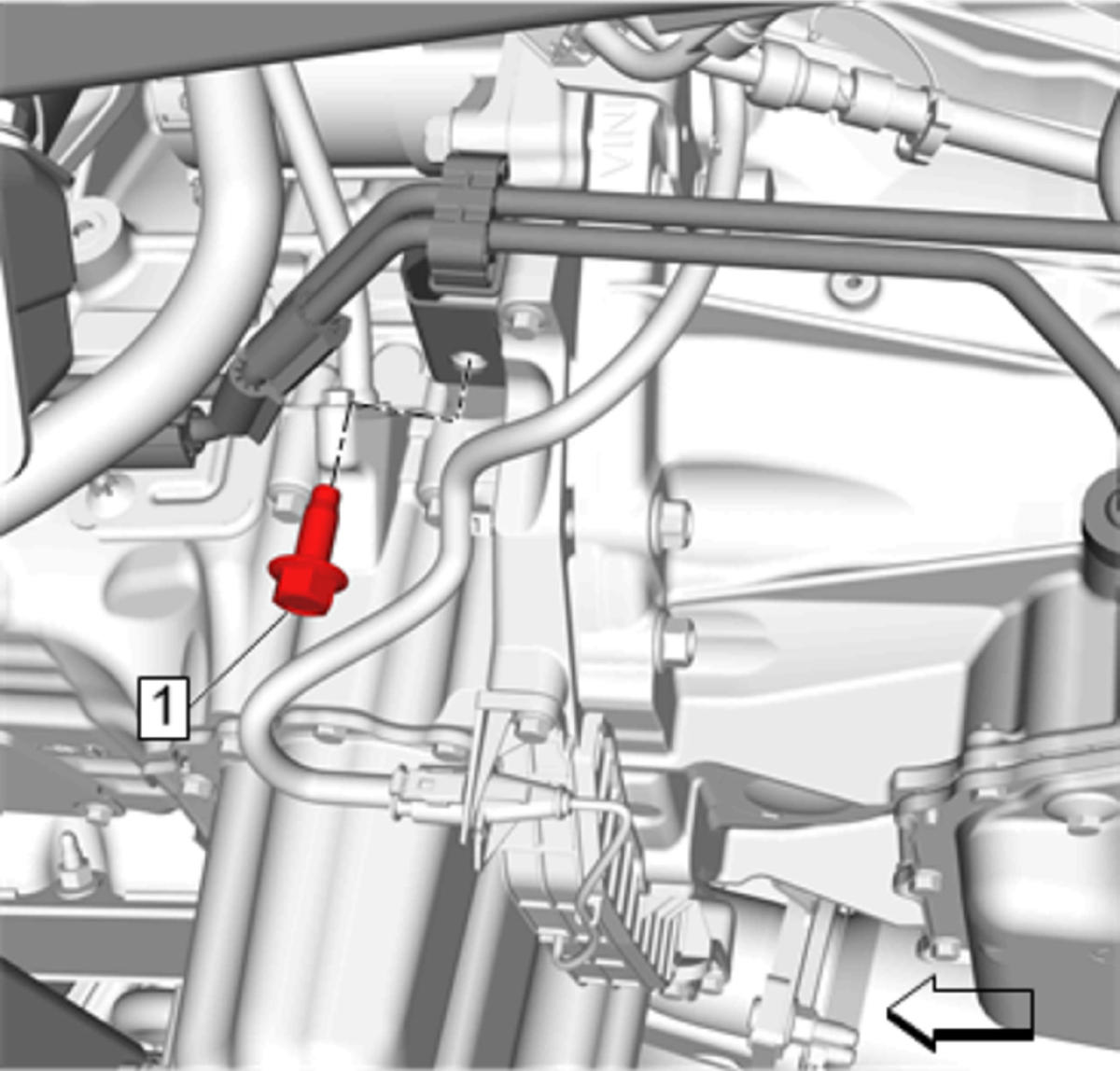

Transmission Fluid Cooler Pipe Clip Bolt (1) @ Engine Block - Install and tighten35 N.m (26 lb ft)
Transmission Fluid Cooler Pipe Clip Bolt (1) @ Engine Block - Install and tighten9 N.m (80 lb in)

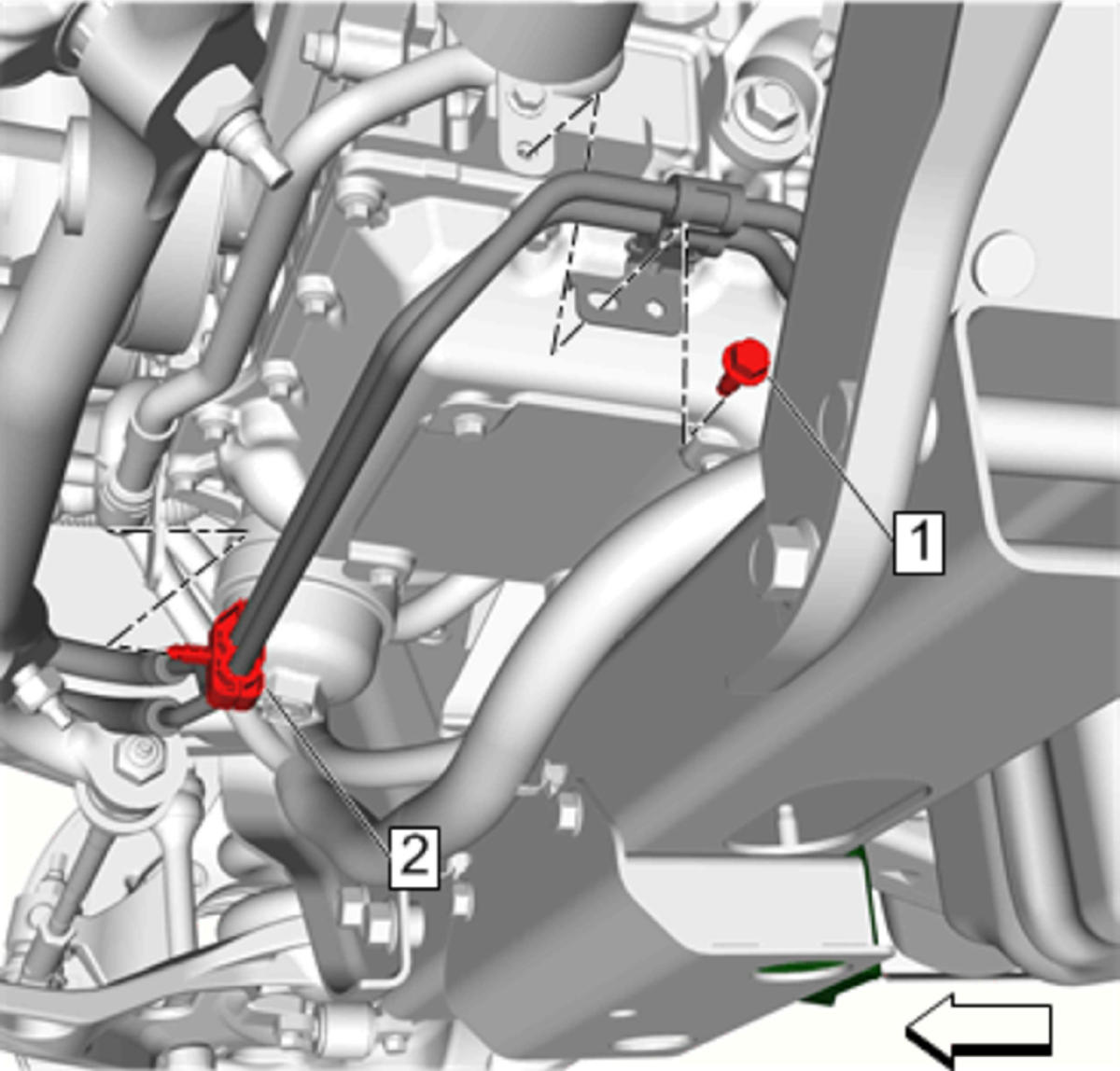

- Transmission Fluid Cooler Pipe Clip (2) @ Transmission Fluid Cooler Pipe Bracket - Install
Transmission Fluid Cooler Pipe (2) @ Transmission Fluid Cooler Pipe Clip (3) - Install
- Transmission Fluid Cooler Pipe Clip (1) @ - Engine Coolant Fan Shroud - Install
Front Wheelhouse Splash Shield-Right Side (1) - Install - Wheelhouse Splash Shield Replacement (Left Side)Wheelhouse Splash Shield Replacement (Right Side)
Lower the vehicle. Lifting and Jacking the Vehicle .
- Transmission Fluid Cooler Pipe (1) @ Radiator (2) - Install - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection [2x]
- Check the transmission fluid level. Transmission Fluid Level and Condition Check
- Inspect for transmission fluid leaks.
- Remove the drain pan.
CAUTION:
Refer to Fastener Caution
