Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

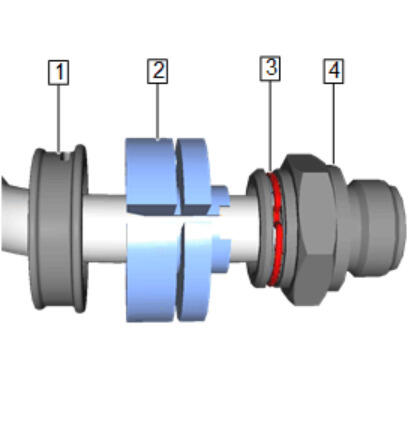

Pull the plastic cap (1) back from the quick connect fitting (4)and down along the cooler pipe enough to expose the transmission fluid cooler pipe fitting retainer (3).
- Install the J-41623-B cooler quick connect tool (2)onto the cooler pipe.
- While pushing the J-41623-B cooler quick connect tool (2)into the quick connect fitting (4), twist slightly to release the cooler pipe fitting retainer (3).
Pull the cooler pipe (1) straight out from the quick connect fitting (2).
