Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Install the transmission fluid auxiliary cooler (2) into the vehicle.

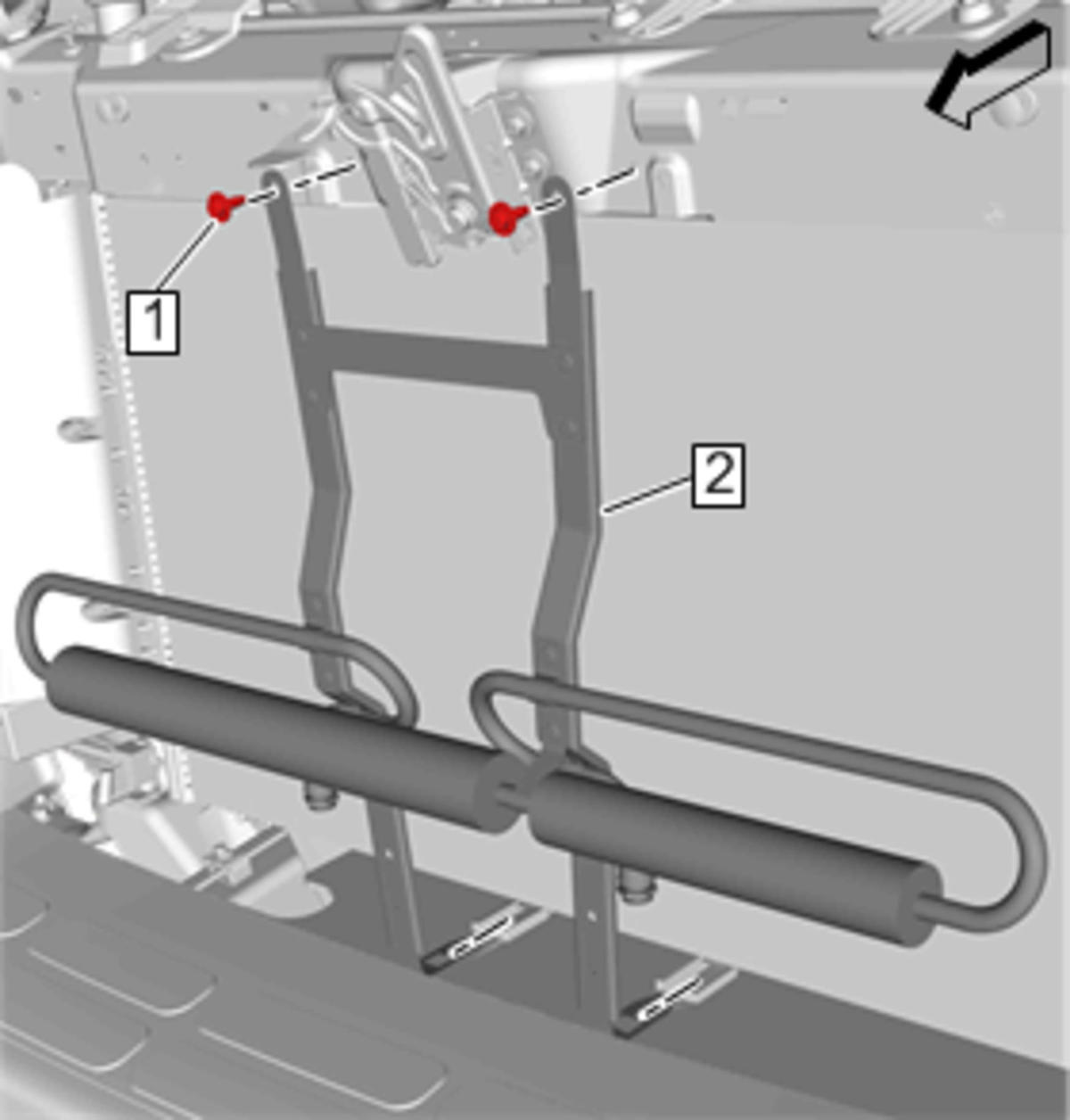

- Transmission Fluid Auxiliary Cooler (2) @ Radiator Air Lower Baffle - Engage
- Transmission Fluid Auxiliary Cooler Bolt (1) @ Front End Upper Tie Bar - Install and tighten[2x]9 N.m (80 lb in)

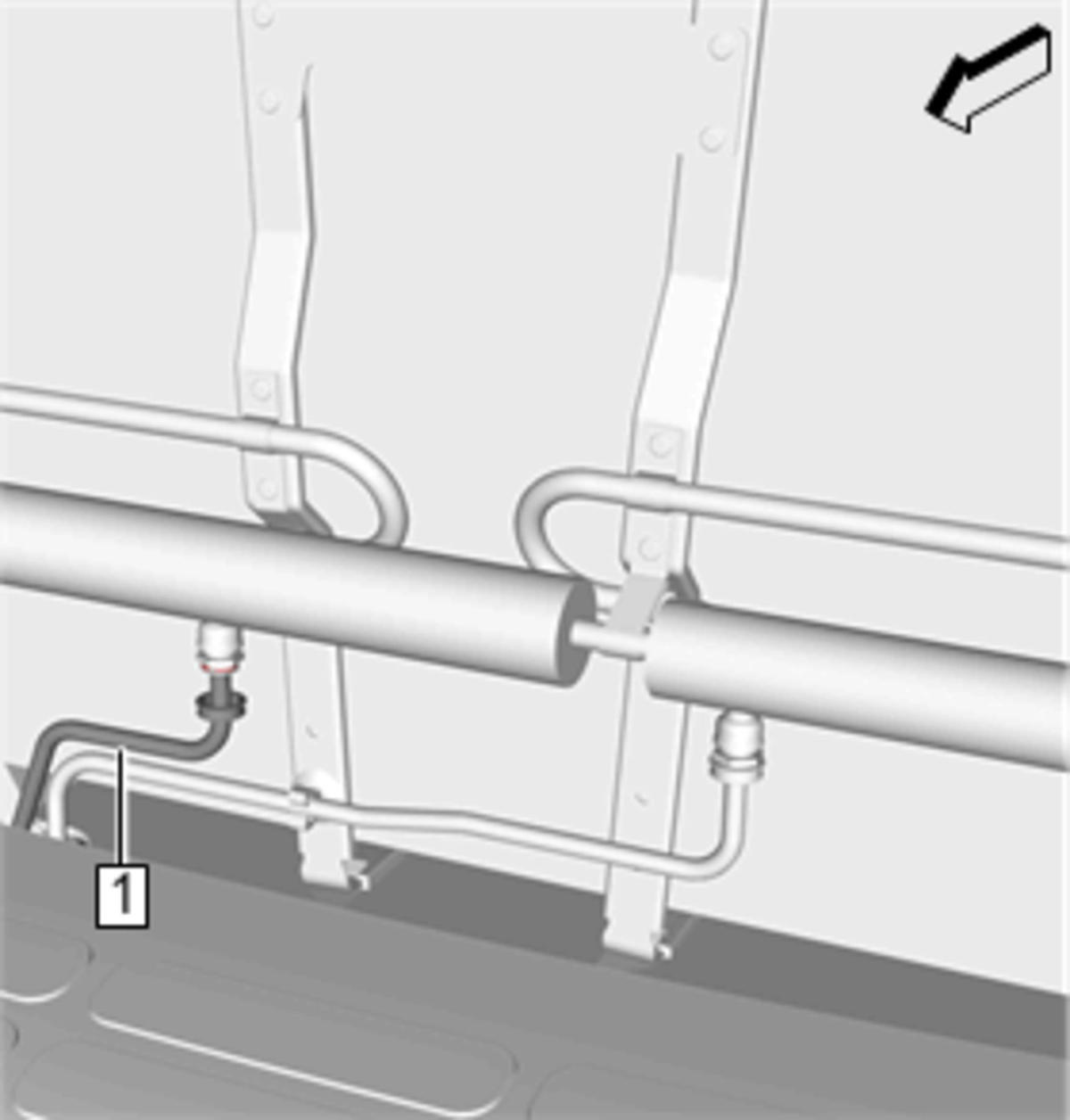

Transmission Fluid Auxiliary Cooler Inlet Pipe (1) @ Transmission Fluid Auxiliary Cooler - Install - Transmission Fluid Auxiliary Cooler Inlet Pipe Replacement (MYD)

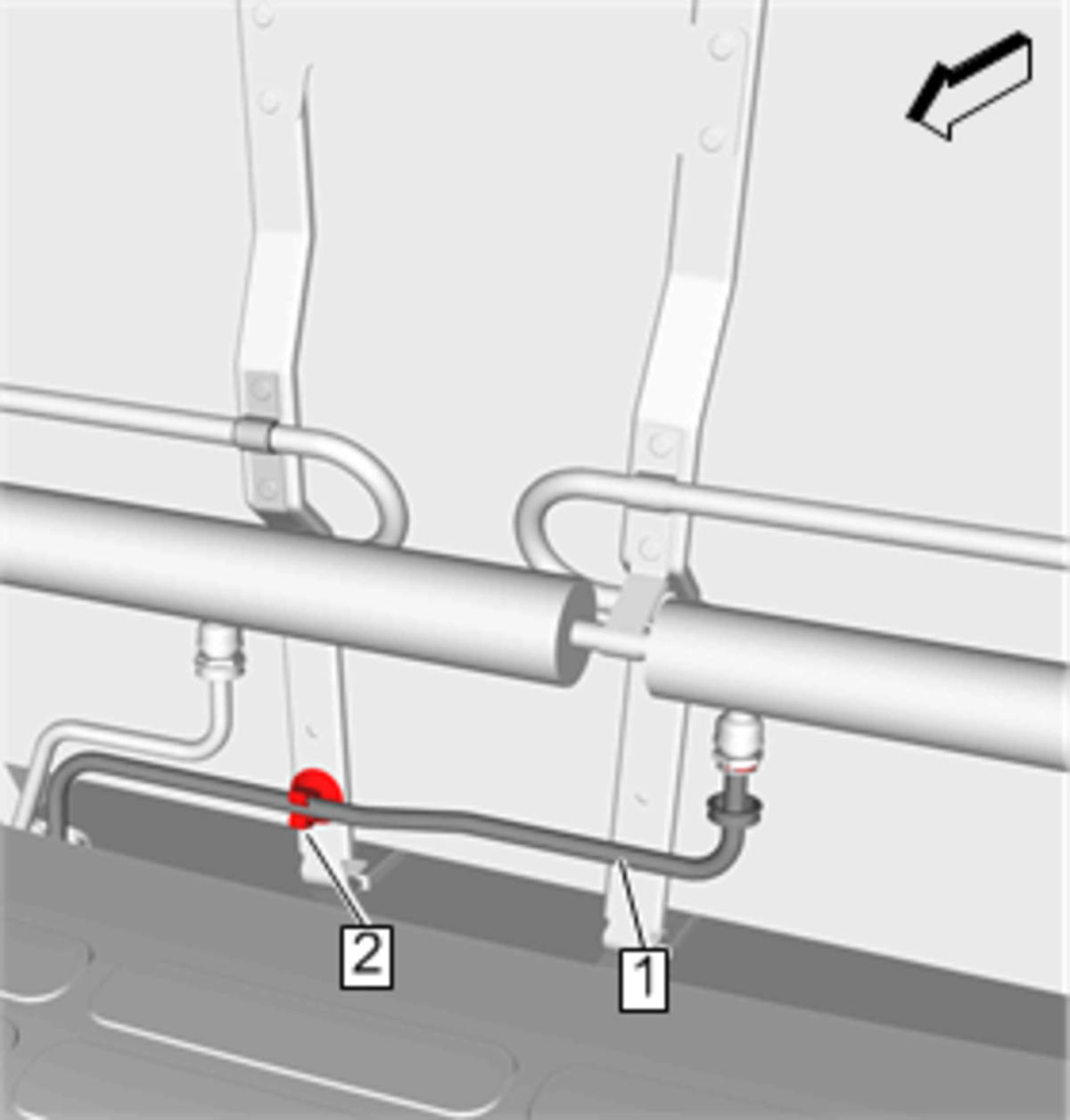

Transmission Fluid Cooler Pipe (1) @ Transmission Fluid Auxiliary Cooler - Install - Transmission Fluid Cooler Hose/Pipe Replacement (M5U) Transmission Fluid Cooler Hose/Pipe Replacement (MYD)
- Front Grille - Install - Front Grille Replacement (Chevrolet)Front Grille Replacement (GMC)
- Check the transmission fluid level. Transmission Fluid Level and Condition Check
- Inspect for transmission fluid leaks.
- Remove the drain pan.
CAUTION:
Refer to Fastener Caution
