Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4824075Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster- Left Side (1) - Remove - Instrument Panel Knee Bolster Replacement (Left Side)

  2. GM4824438Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster- Right Side (1) - Remove - Instrument Panel Knee Bolster Replacement (Right Side)

  3. GM4826303Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Remove - Instrument Panel Cluster Trim Plate Replacement

  4. GM4840731Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Control (2) - Remove - Heater and Air Conditioning Control Replacement

  5. GM4831159Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Remove - Instrument Panel Upper Trim Panel Replacement

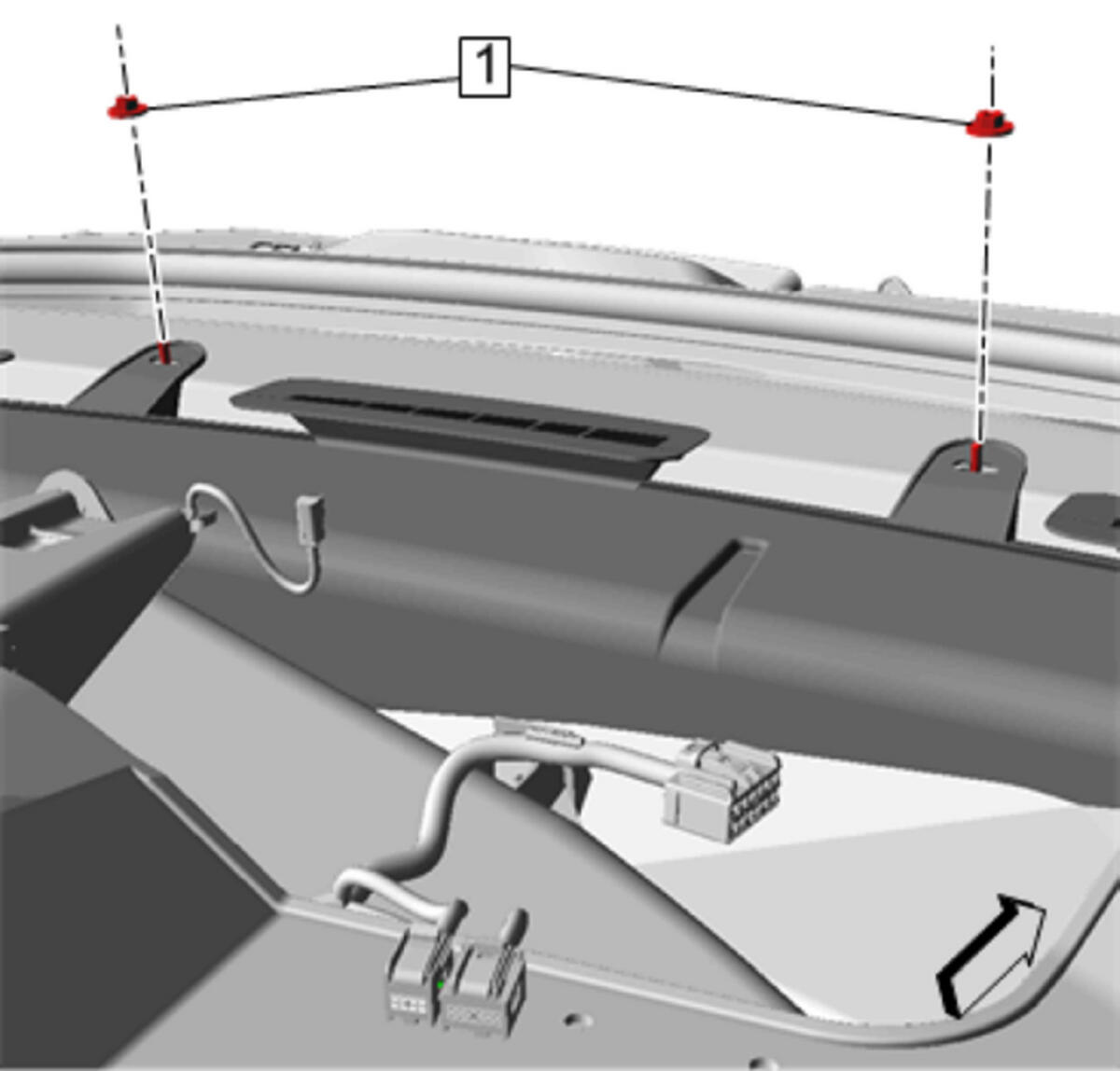

  6. GM4867079Courtesy of GENERAL MOTORS COMPANY

    Windshield Defroster Outlet Duct Nut (1) - Remove [2x]

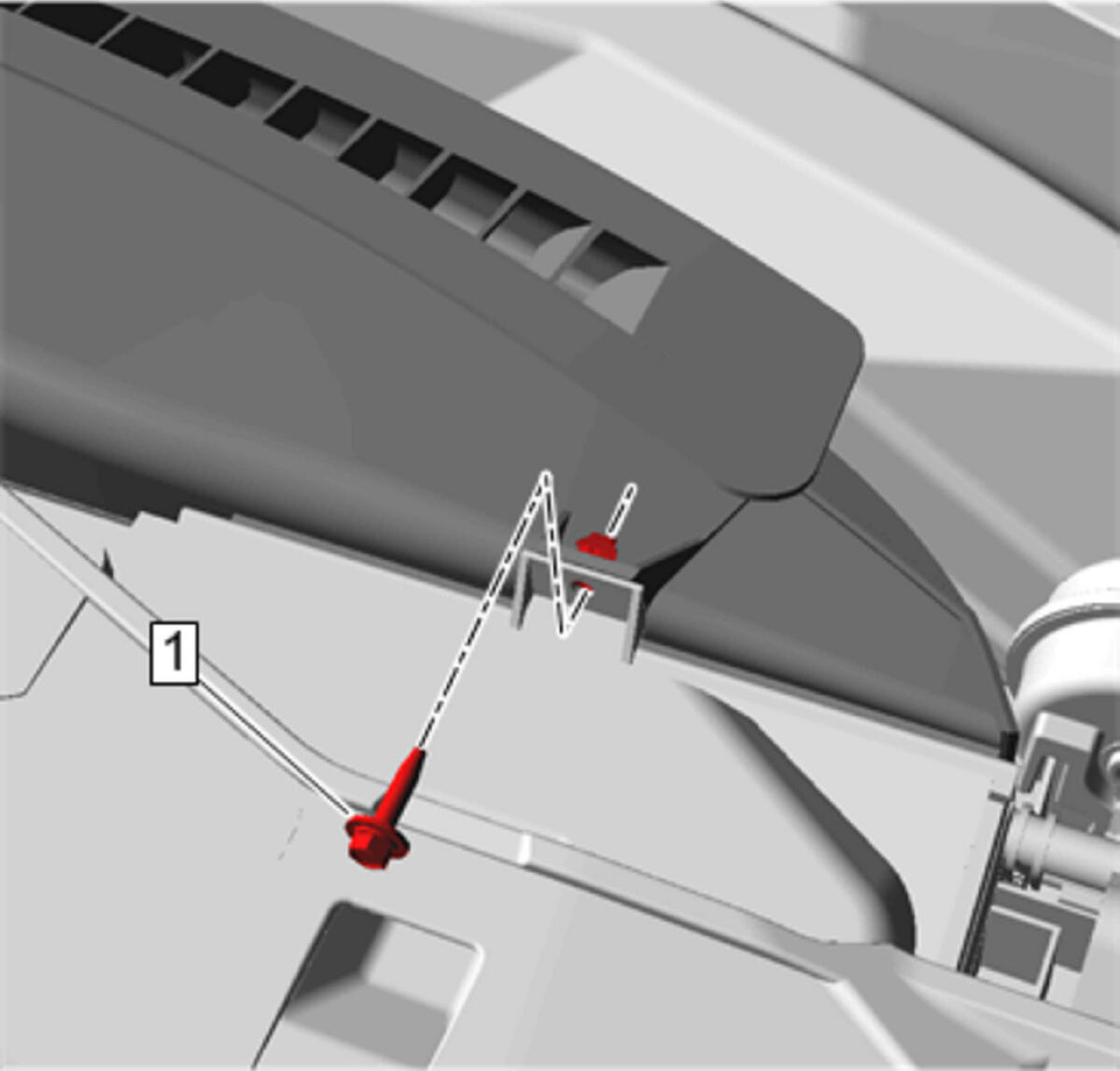

  7. GM4867080Courtesy of GENERAL MOTORS COMPANY

    Windshield Defroster Outlet Duct Bolt (1) - Remove

  8. GM4866603Courtesy of GENERAL MOTORS COMPANY

    Windshield Defroster Outlet Duct (1) - Remove
