Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4850465Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding (3) - Remove - Windshield Garnish Molding Replacement

  2. GM4824438Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster-Right Side (1) - Remove - Instrument Panel Knee Bolster Replacement (Right Side)

  3. GM4824075Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster- Left Side (1) - Remove - Instrument Panel Knee Bolster Replacement (Left Side)

  4. GM4826303Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Remove - Instrument Panel Cluster Trim Plate Replacement

  5. GM4829957Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Release

  6. GM4829960Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Remove - Instrument Panel Extension Replacement

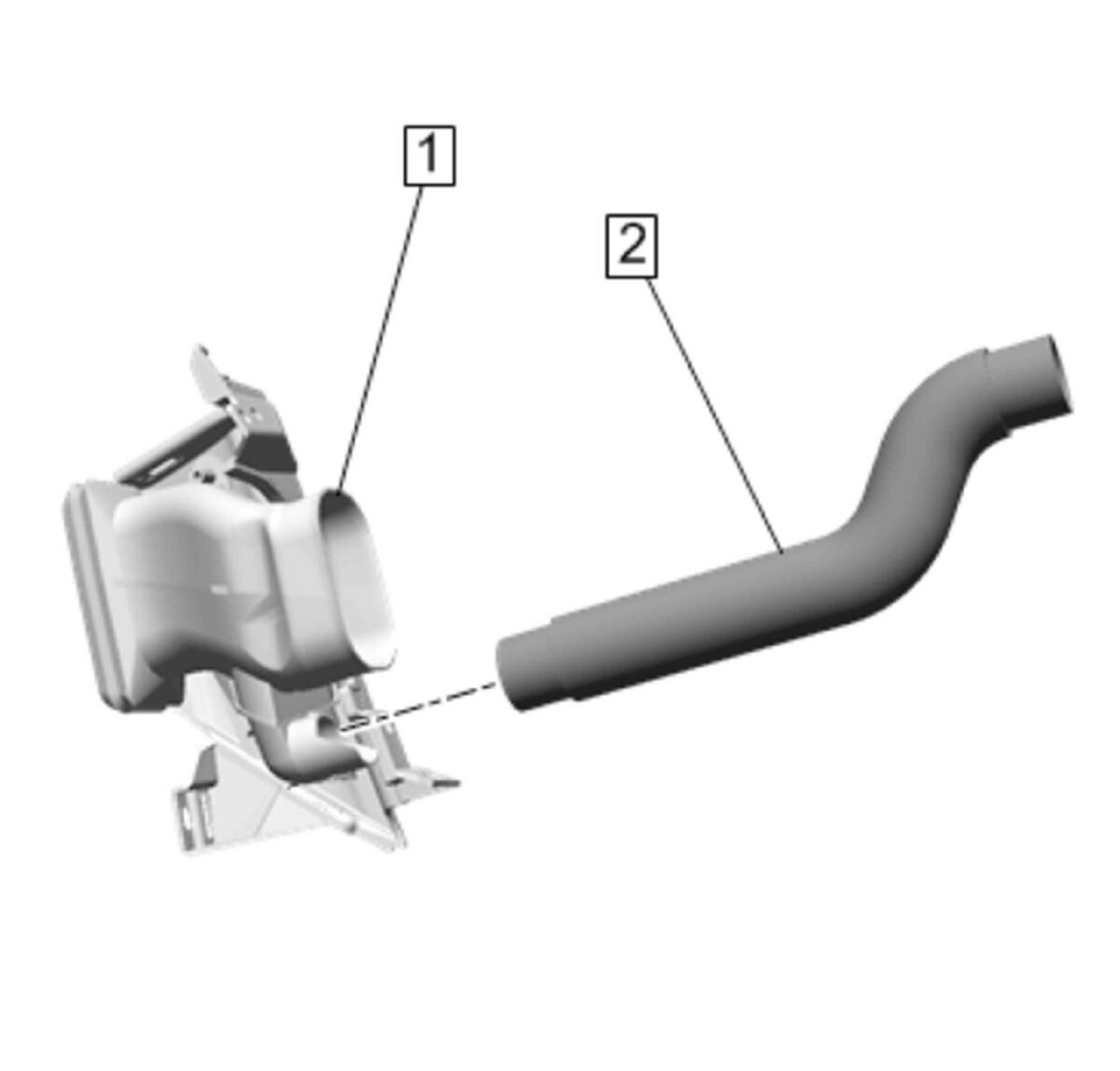

  7. GM4871187Courtesy of GENERAL MOTORS COMPANY

    Separate the instrument panel outer air outlet duct (1) from the left side window defogger outlet duct (2).
