Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Auxiliary Heater (1) - Remove - Auxiliary Heater Replacement (Cargo Van C36) , or Auxiliary Heater Replacement (Passenger Van C36)
Courtesy of GENERAL MOTORS COMPANY

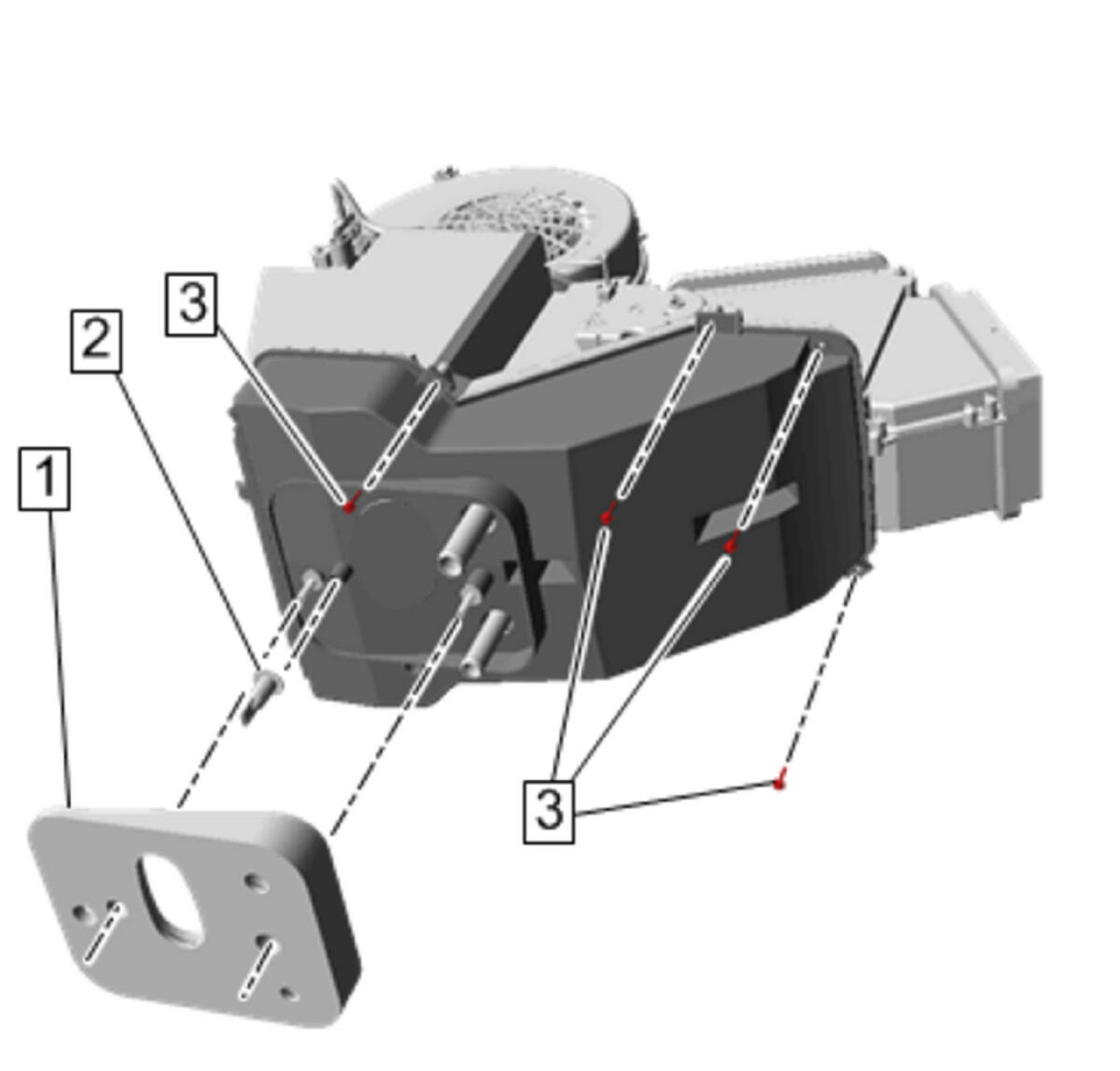

Air Conditioning Evaporator Tube seal (1) - Remove
Auxiliary Air Conditioning Evaporator and Blower Module Drain Valve (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

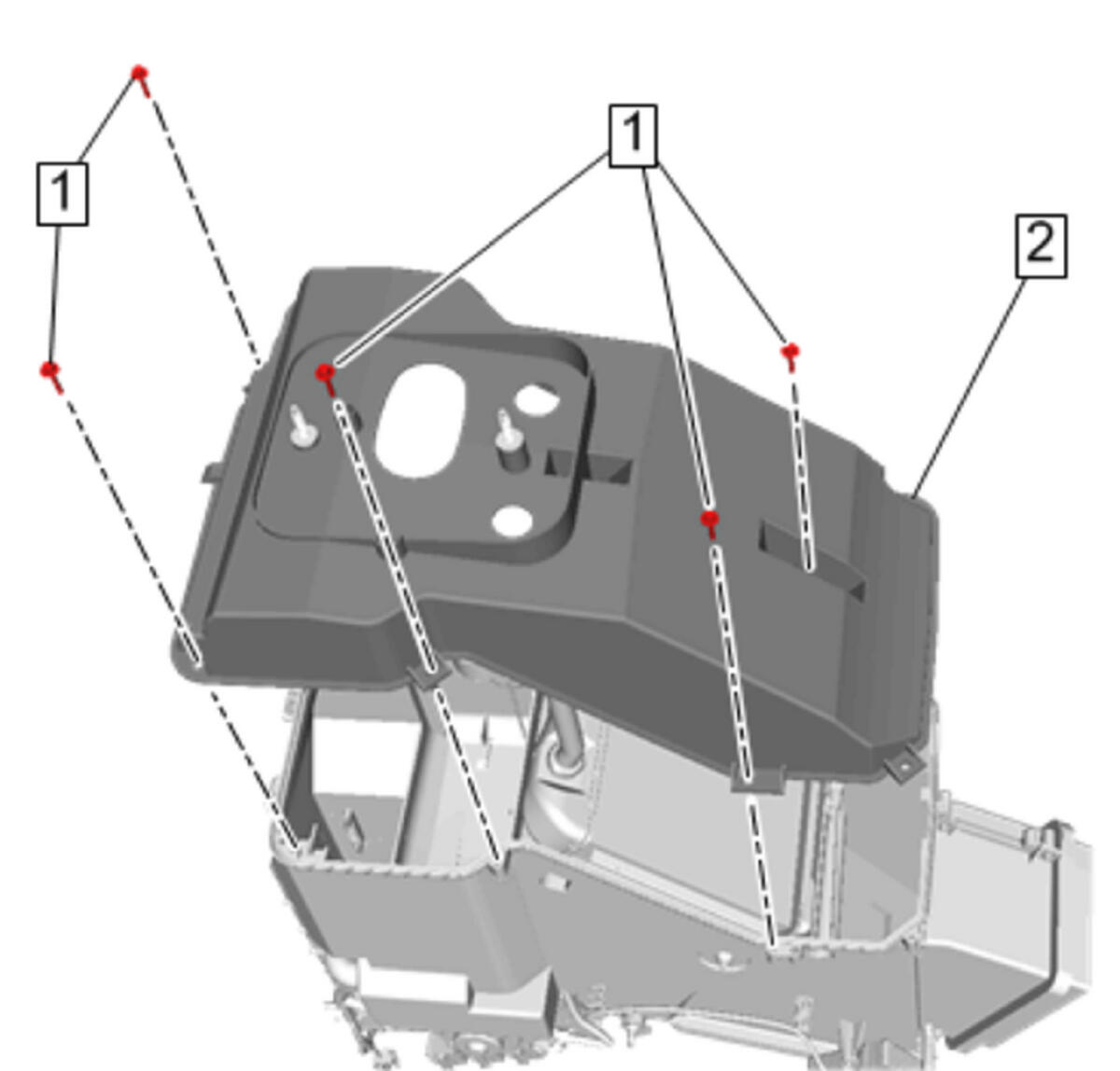

Auxiliary Air Conditioning Evaporator and Blower Module Cover (2) - Remove - Auxiliary Air Conditioning Evaporator and Blower Module Cover Replacement (C36 Cargo Van) , or Auxiliary Air Conditioning Evaporator and Blower Module Cover Replacement (Passenger Van C69)
Courtesy of GENERAL MOTORS COMPANY

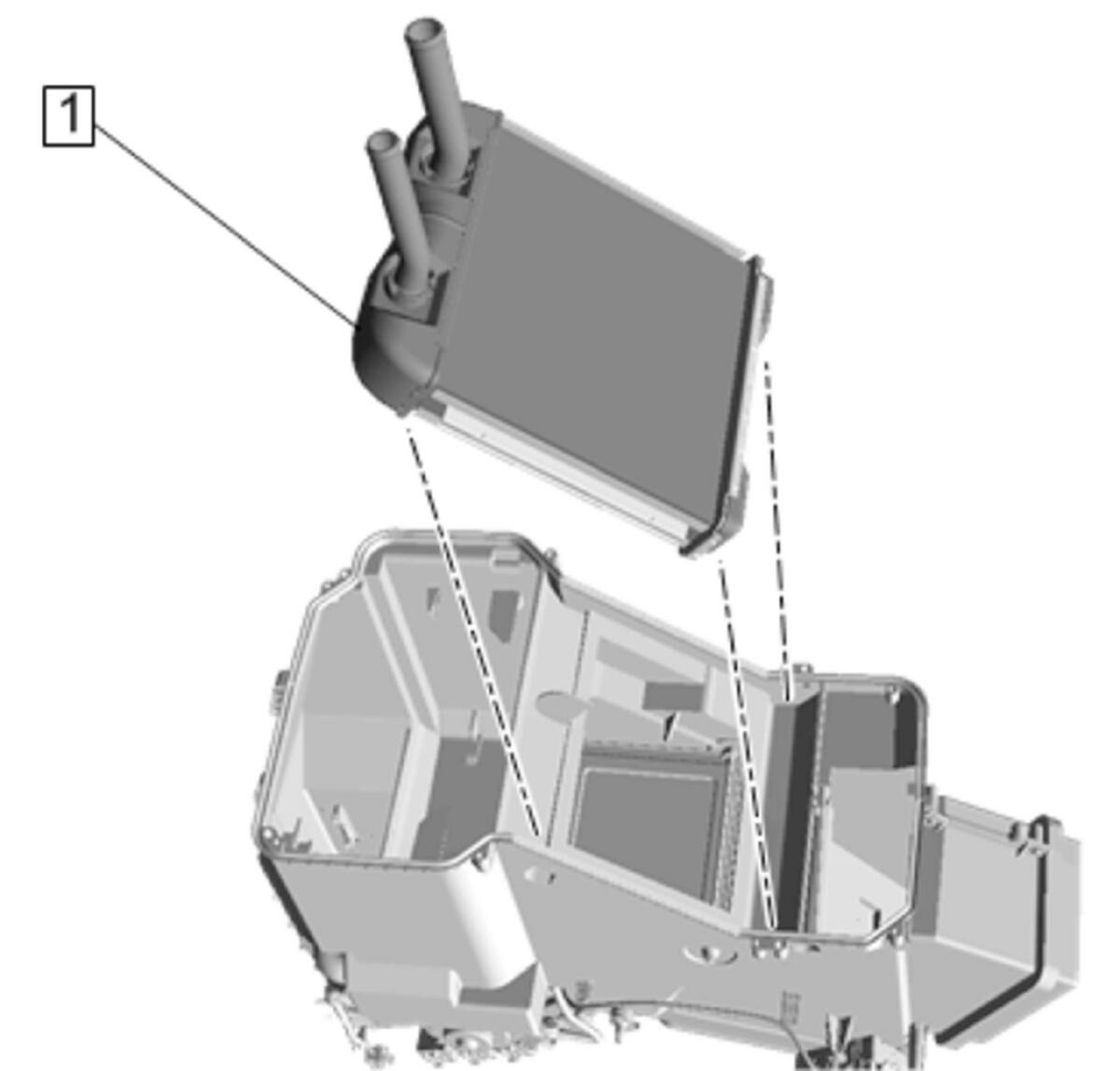

Auxiliary Heater Core (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

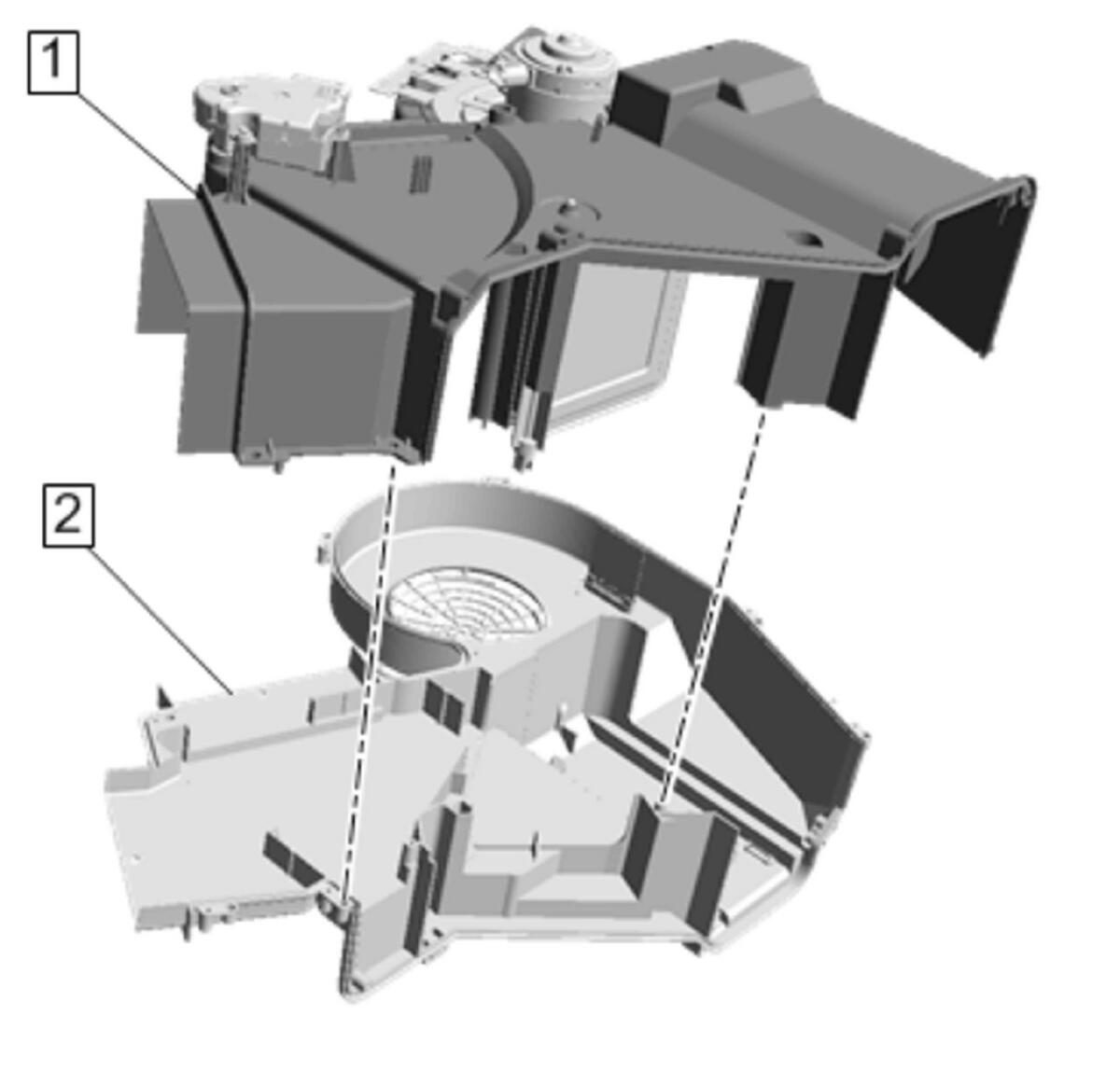

Auxiliary Heater Case - Outboard (1) @ Auxiliary Heater Case - Inboard (2) - Remove - Auxiliary Air Conditioning Evaporator and Blower Case Replacement - Outboard (C69)
Courtesy of GENERAL MOTORS COMPANY

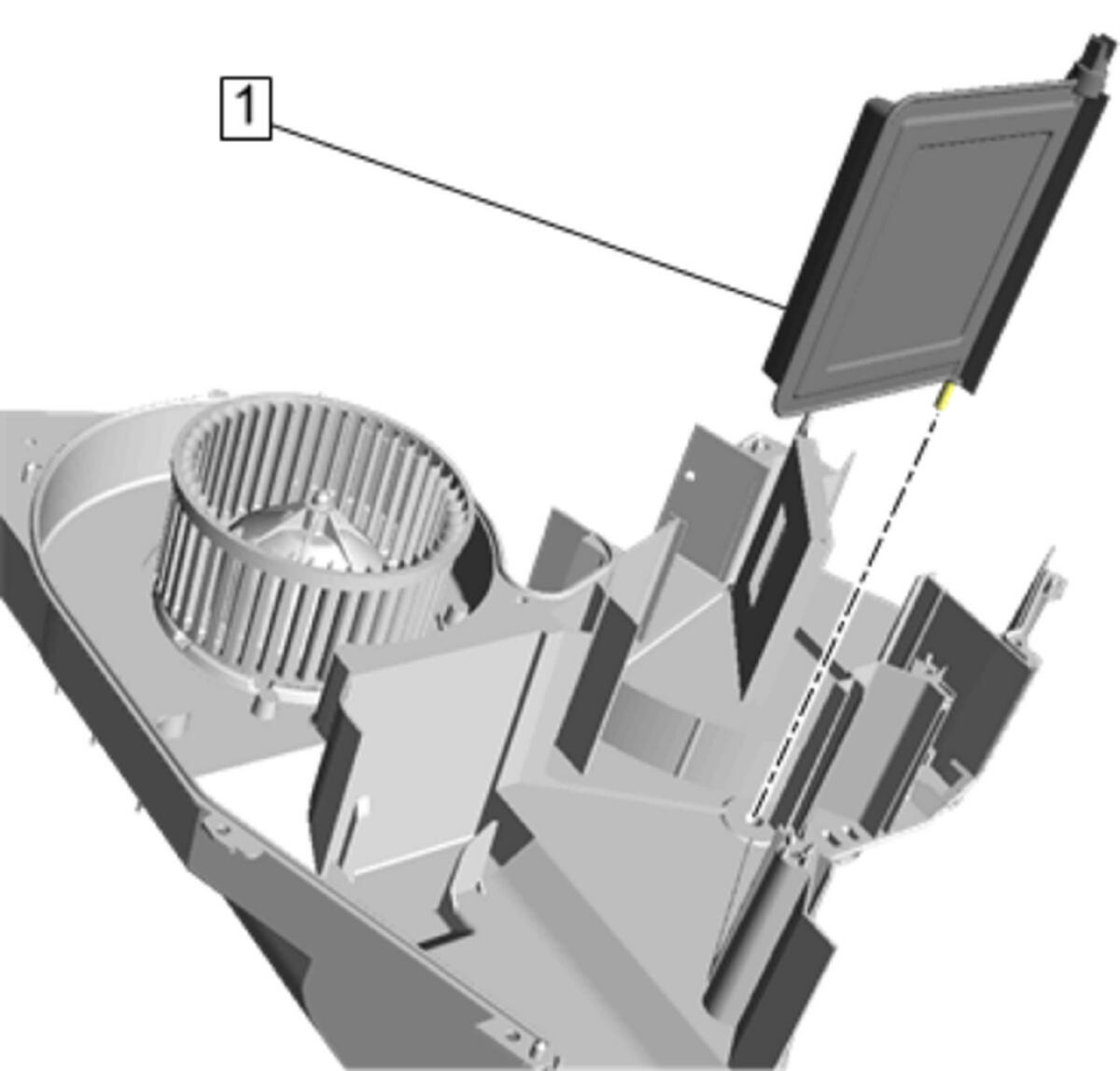

Mode Valve (1) @ Auxiliary Heater Case - Outboard - Remove
