Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

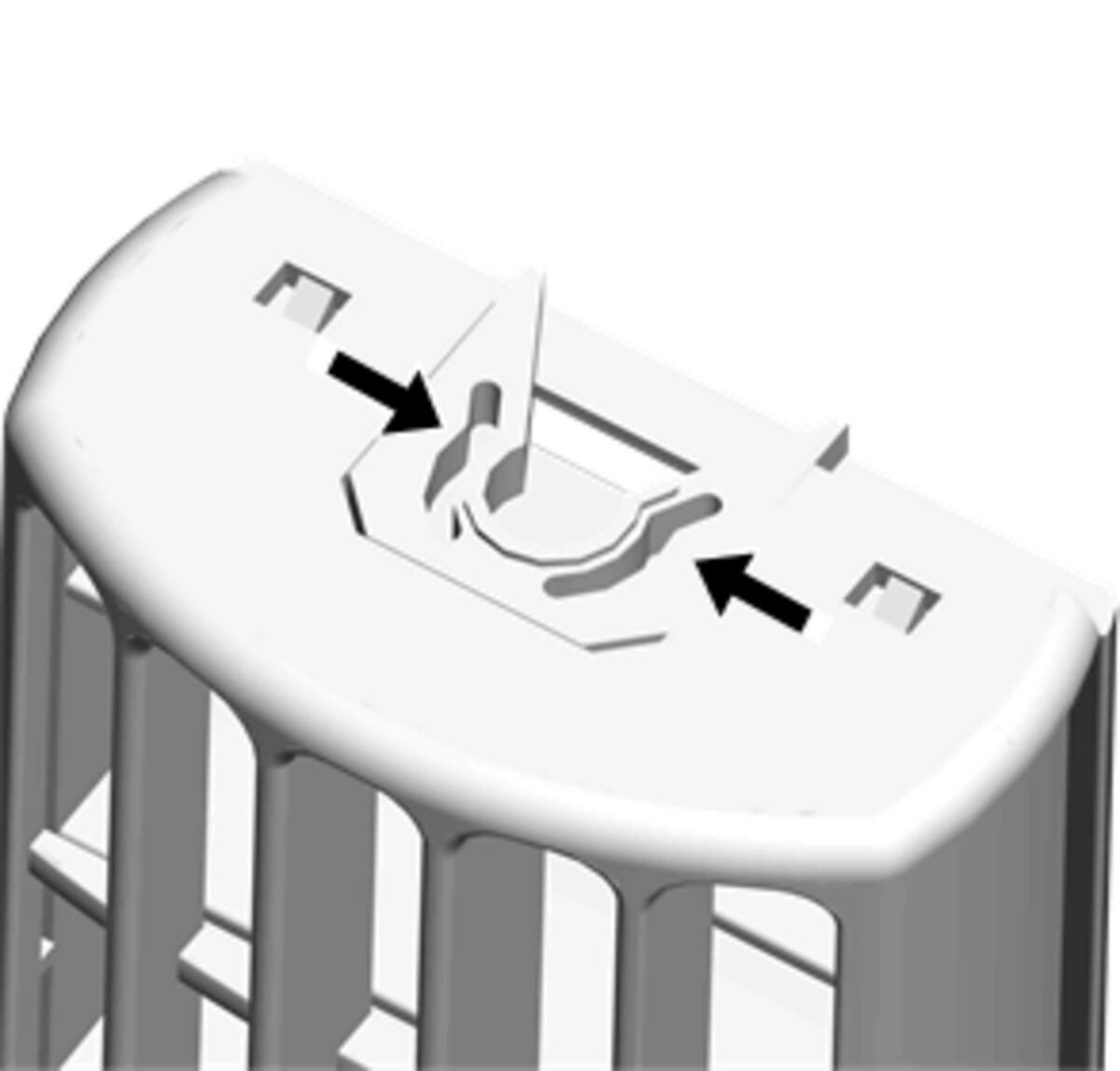

  1. GM4838906Courtesy of GENERAL MOTORS COMPANY

    Use a flat bladed plastic trim tool in order to release the air outlet from the post.

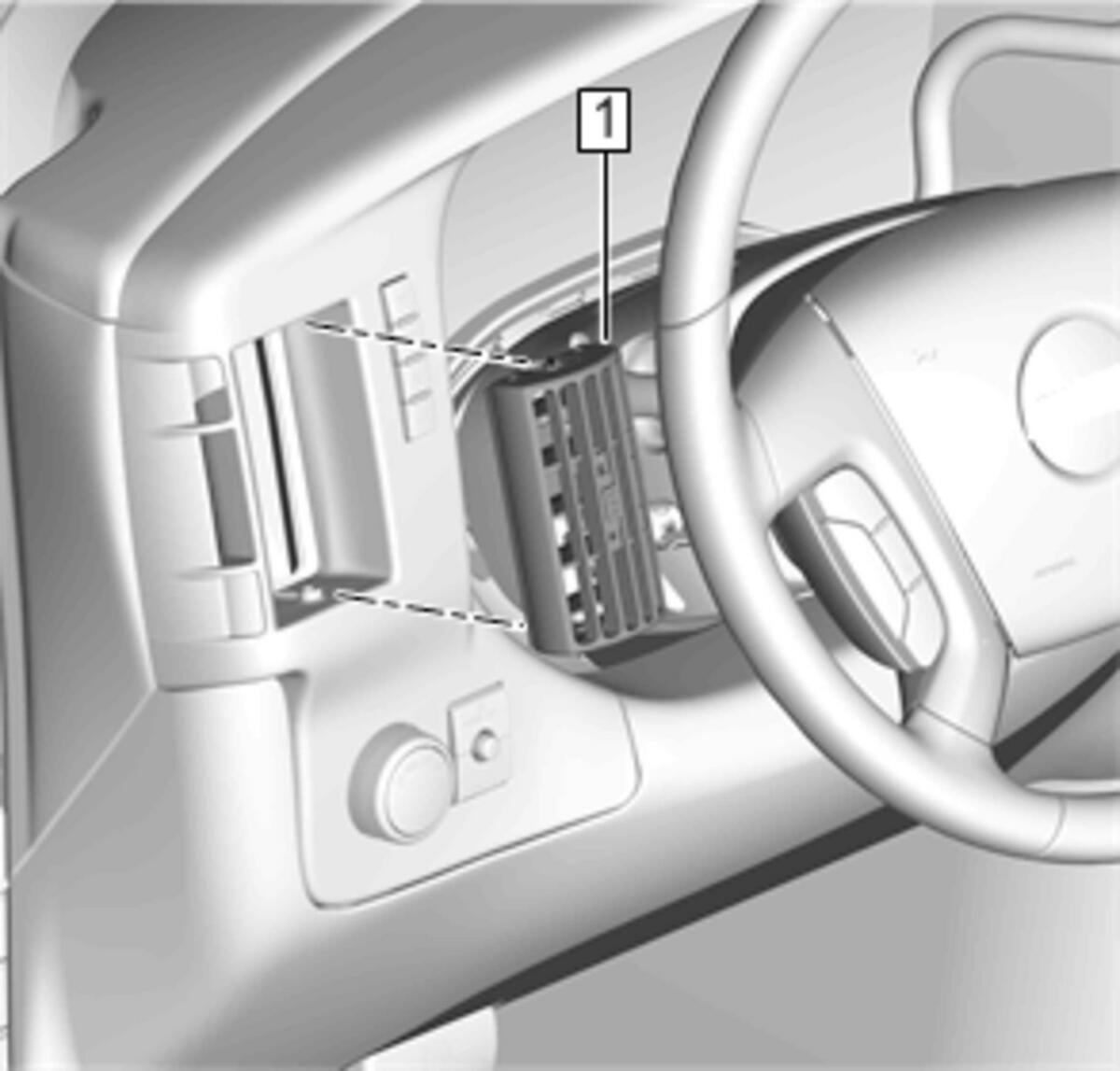

  2. GM4838907Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet (1) - Remove

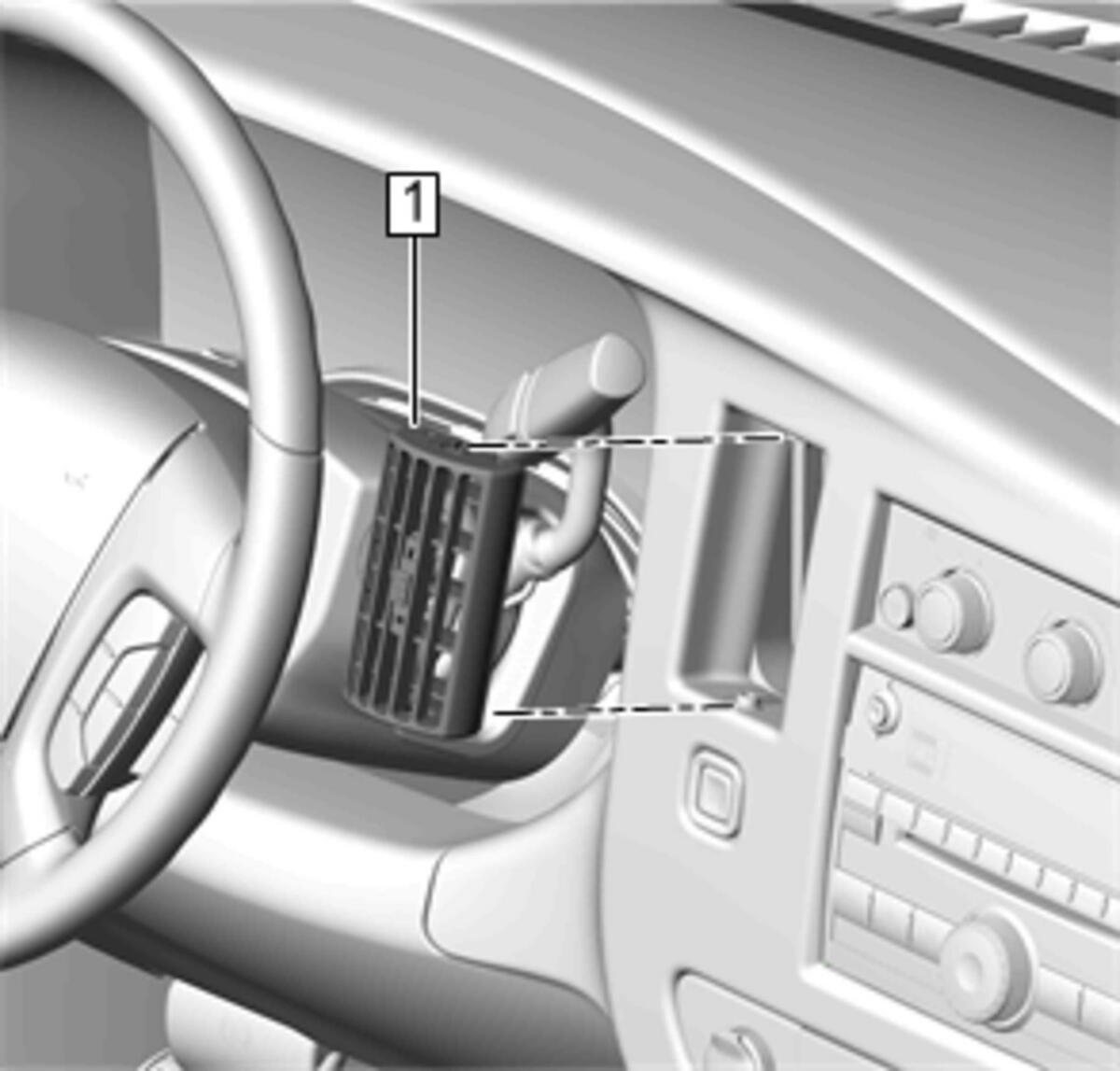

  3. GM4838908Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet (1) - Remove

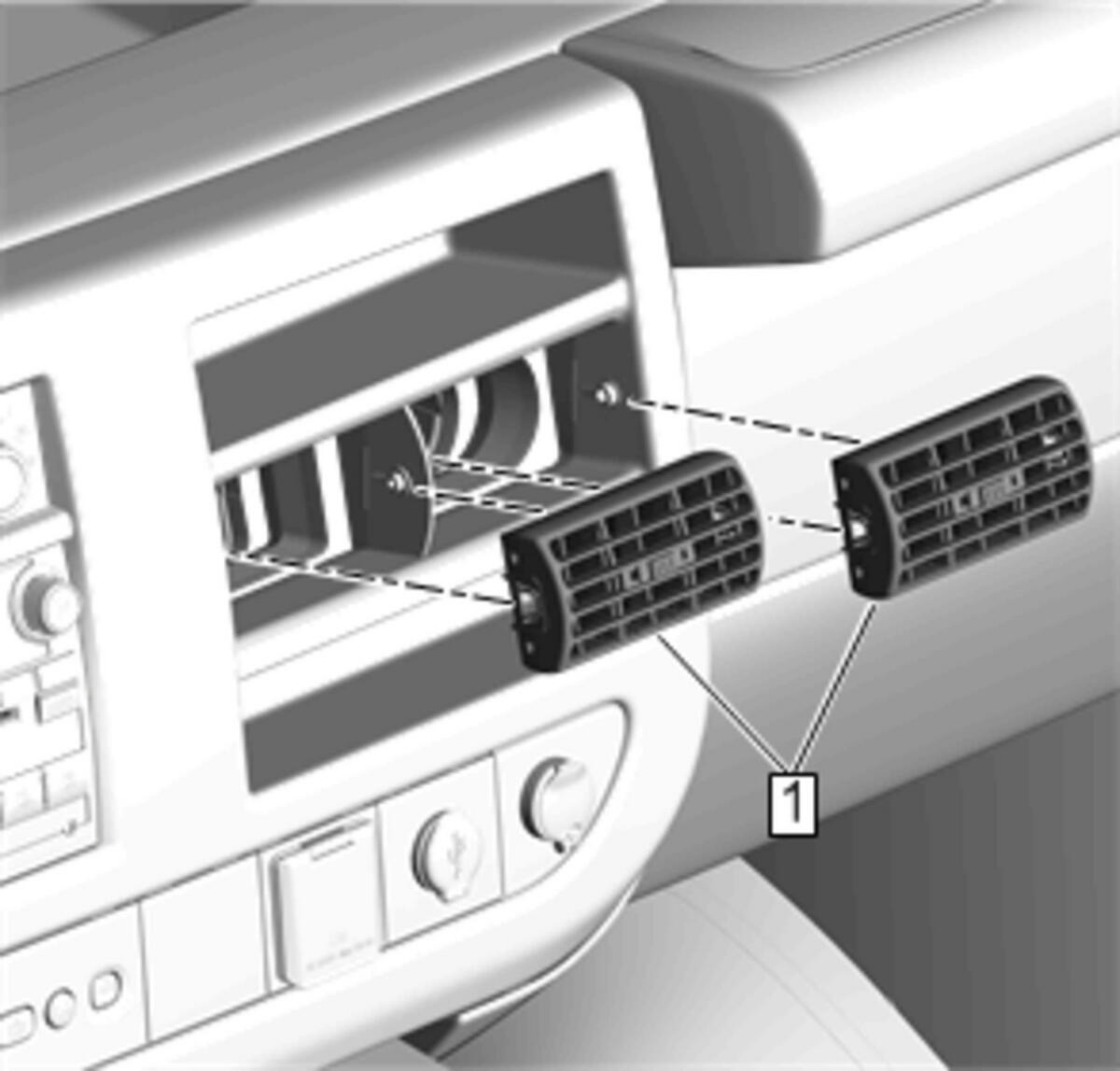

  4. GM4838909Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet (1) - Remove [2x]

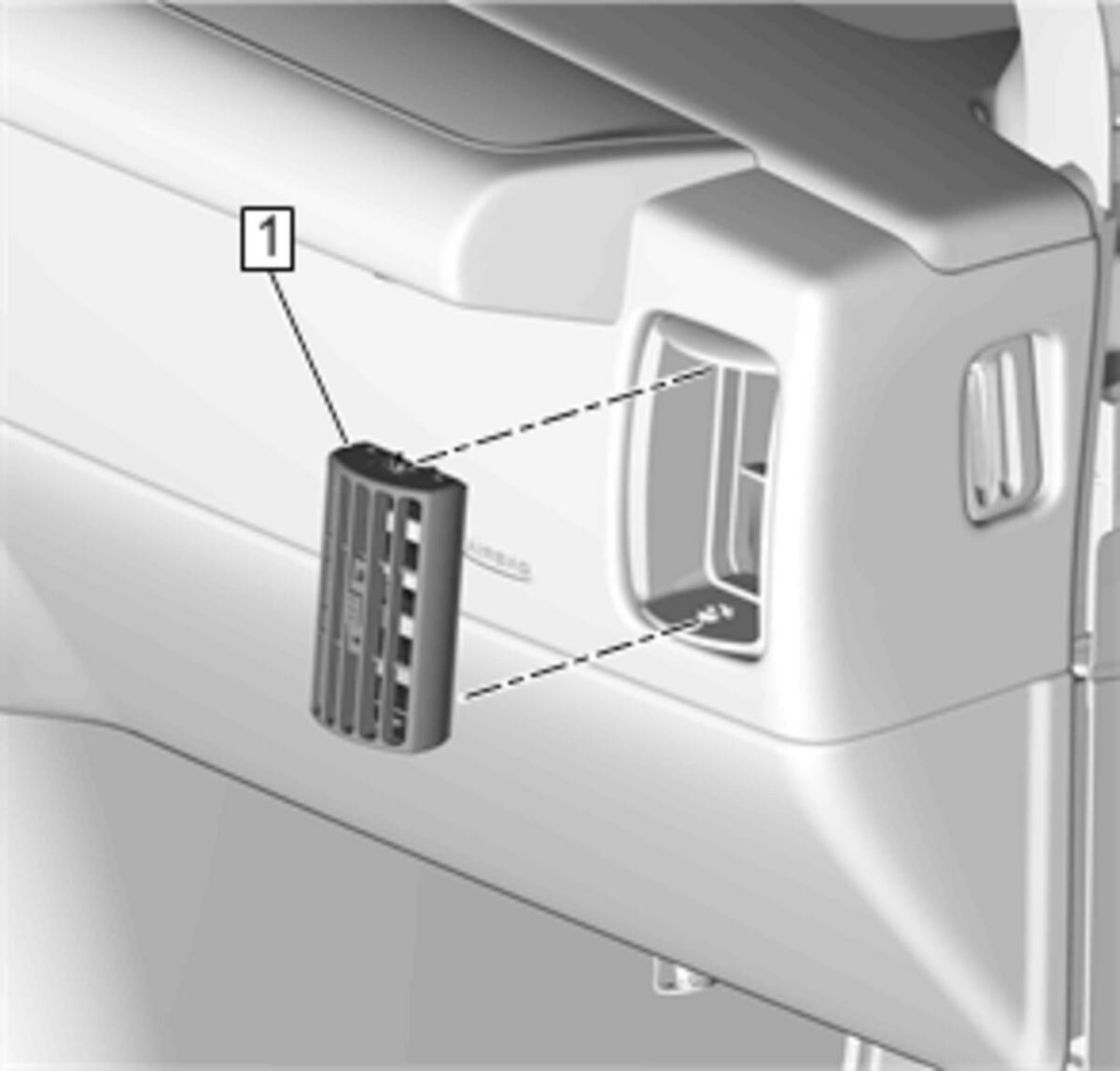

  5. GM4838910Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet (1) - Remove
