Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Windshield Garnish Molding (3) - Remove - Windshield Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster-Right Side (1) - Remove - Instrument Panel Knee Bolster Replacement (Right Side)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster- Left Side (1) - Remove - Instrument Panel Knee Bolster Replacement (Left Side)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Cluster Trim Plate (1) - Remove - Instrument Panel Cluster Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Upper Trim Panel (1) - Release
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Extension (1) - Remove - Instrument Panel Extension Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The instrument panel outer air outlet duct is fastened onto the instrument panel extension by the heat staking method.

CAUTION:
Refer to HVAC Duct Heat Stake Caution .

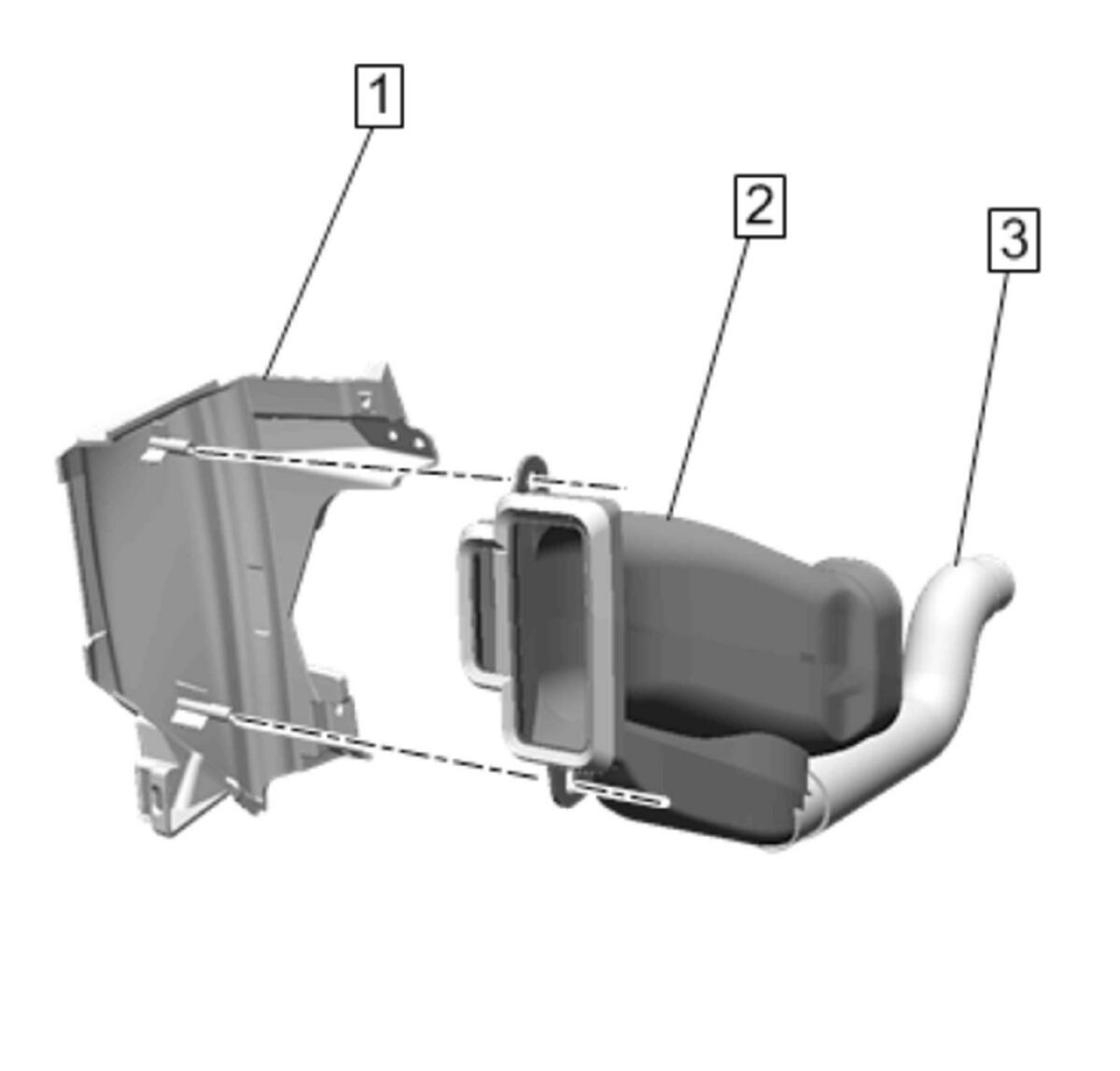

Separate the instrument panel outer air outlet duct (1) from the instrument panel extension (2).
Transfer the side window defogger outlet duct (3).
