Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
Front Wheelhouse Splash Shield-Right Side (3) - Remove - Wheelhouse Splash Shield Replacement (Left Side)

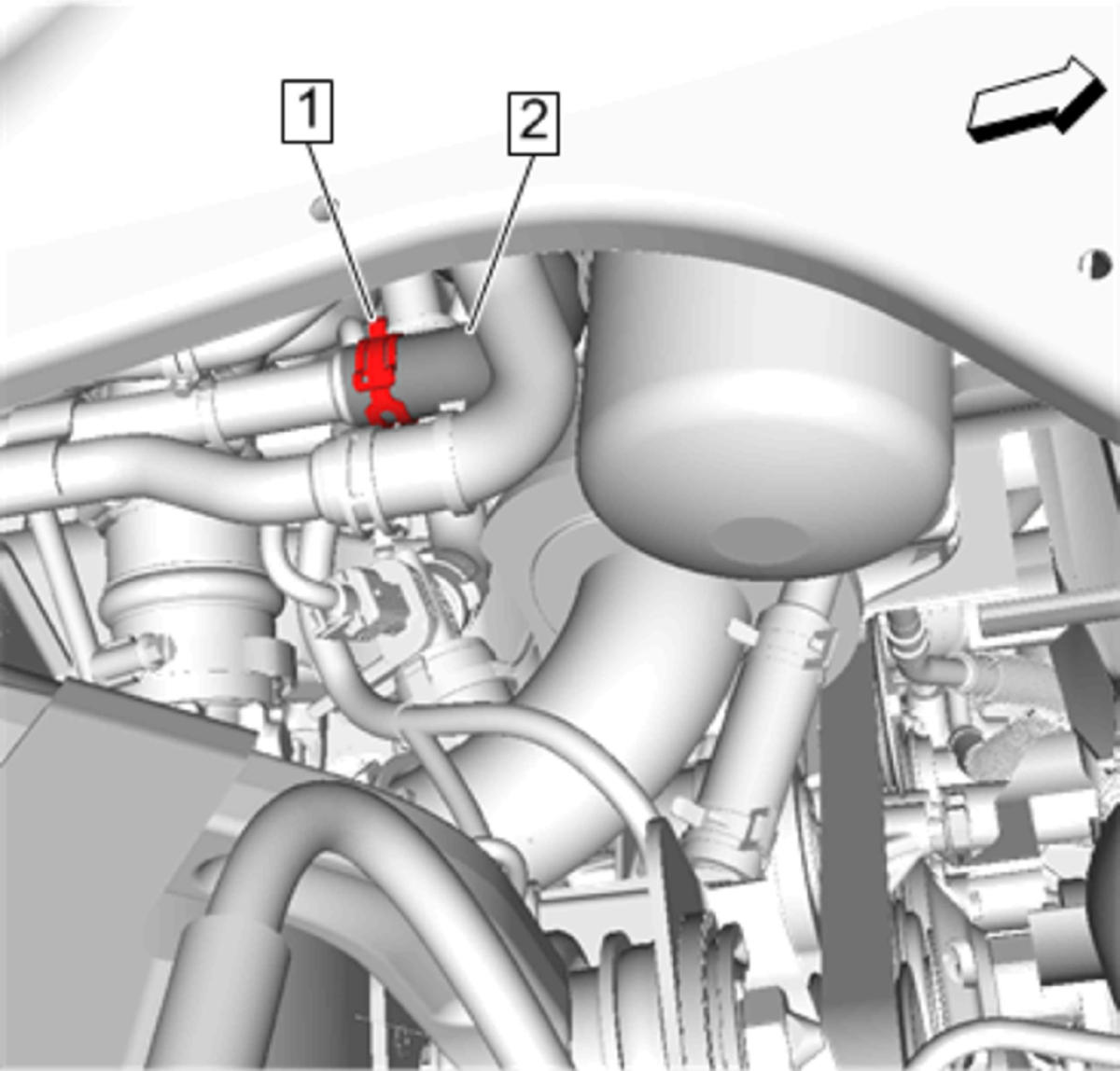

Heater Inlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Heater Inlet Hose (2) @ Heater Inlet and Outlet Pipe - Remove
- Lower the vehicle.
Charge Air Cooler Inlet Air Hose (2) - Remove - Charge Air Cooler Inlet Air Hose Replacement
Plenum Drain Tube (2) - Remove - Plenum Drain Tube Replacement (Without LWN) , or Plenum Drain Tube Replacement (With LWN)
Heater Outlet Hose Clip (1) @ Heater Inlet Hose - Remove
- Heater Inlet Hose Clamp (2) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Heater Inlet Hose (3) @ Heater Core Inlet Tube - Remove
- Heater Inlet Hose (3) - Remove
