Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Heater Inlet Hose (2) @ Heater Inlet and Outlet Hose - Install
- Heater Inlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type

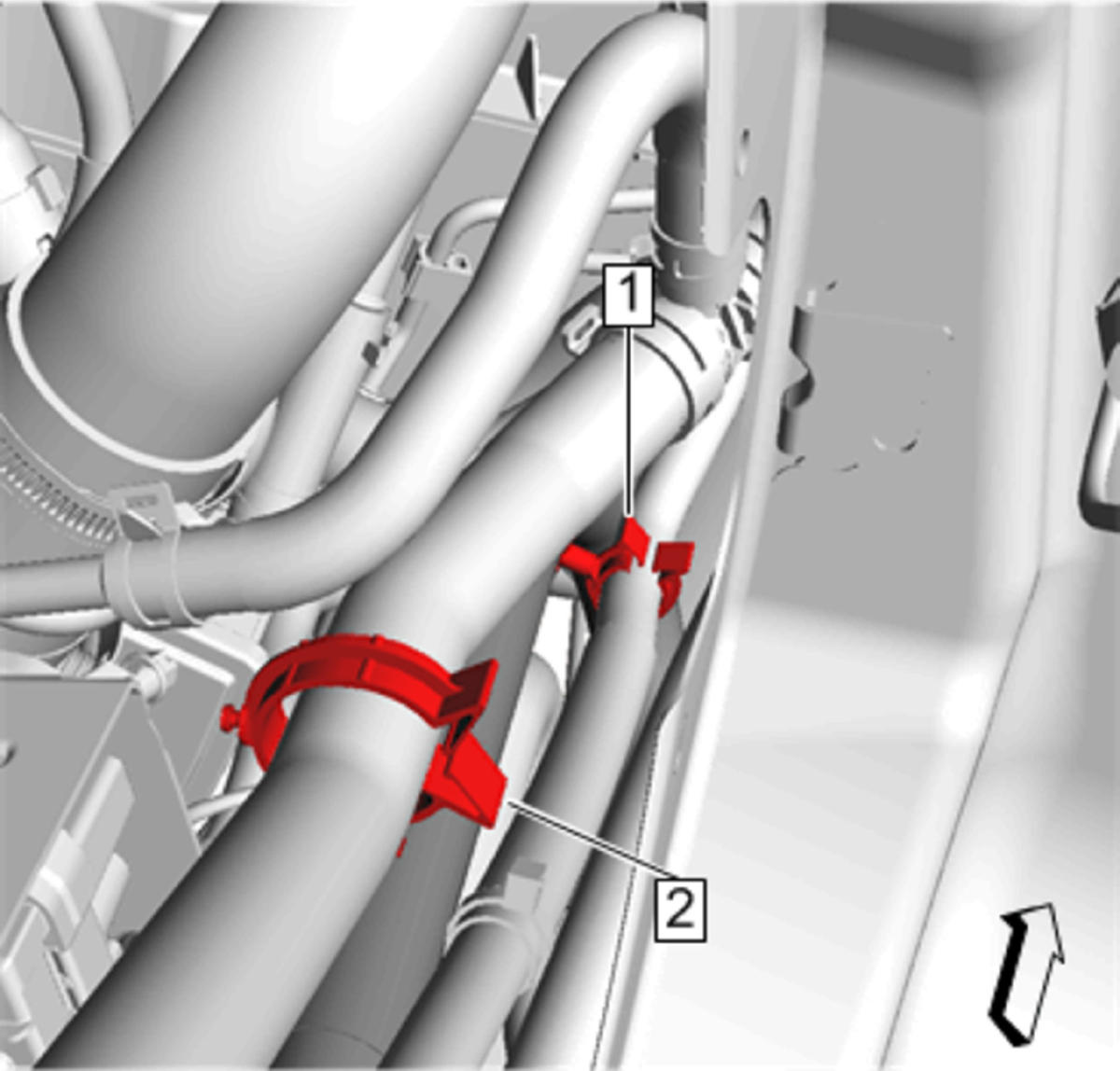

Heater Inlet Hose Retainer (2) @ Radiator Vent Inlet Hose - Install
- Heater Inlet Hose Retainer (1) @ Vacuum Hose - Install

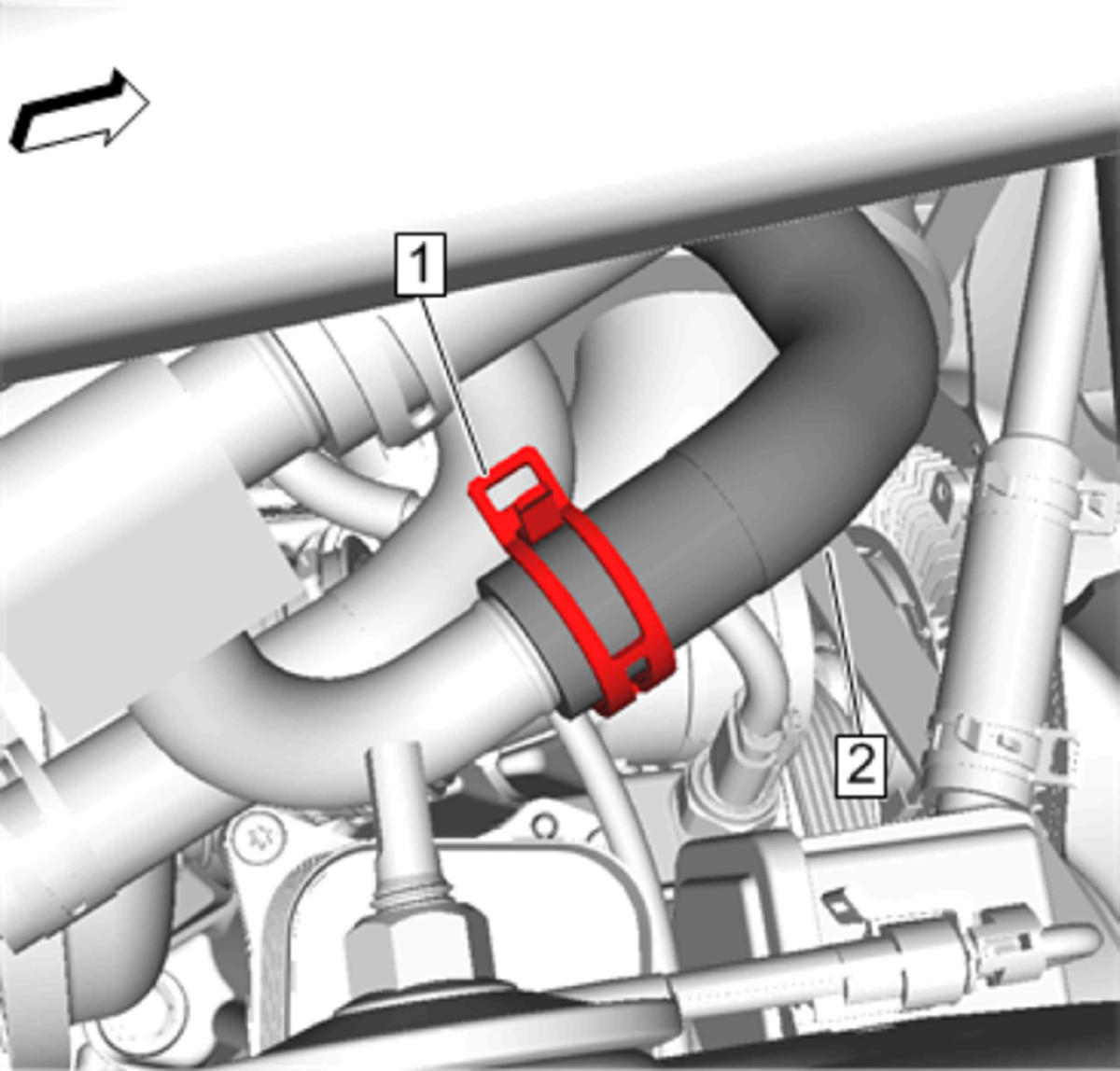

Heater Inlet Hose (2) @ Auxiliary Air Conditioning Evaporator Outlet Rear Hose - Install
- Heater Inlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Front Wheelhouse Splash Shield-Right Side (3) - Install - Wheelhouse Splash Shield Replacement (Right Side)
- Lower the vehicle.
- Fill the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
- Start the engine and check for coolant leaks.
