Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
Coolant Recovery Reservoir (1) - Remove - Coolant Recovery Reservoir Replacement (LV1) , or Coolant Recovery Reservoir Replacement (L96, LC8)
- Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement
- Air Cleaner Resonator Outlet Duct - Remove - Air Cleaner Resonator Outlet Duct Replacement
- Transmission Fluid Filler Tube - Reposition - Transmission Fluid Filler Tube and Seal Replacement
- Oil Level Indicator Tube - Reposition - Oil Level Indicator Tube Replacement (Upper) , or Oil Level Indicator Tube Replacement (Lower)
Plenum Drain Tube (2) - Remove - Plenum Drain Tube Replacement (Without LWN) , or Plenum Drain Tube Replacement (With LWN)

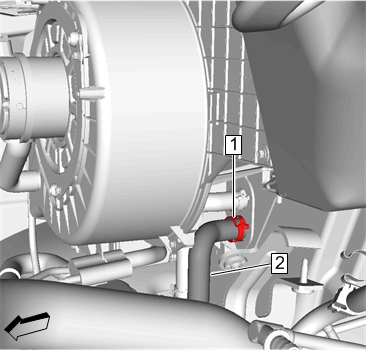

Heater Inlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Heater Inlet Hose (2) @ Heater Water Flow Control Valve - Remove
Heater Inlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Heater Inlet Hose (2) @ Heater Core Inlet Tube - Remove
- Heater Inlet Hose (2) - Remove
