Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)

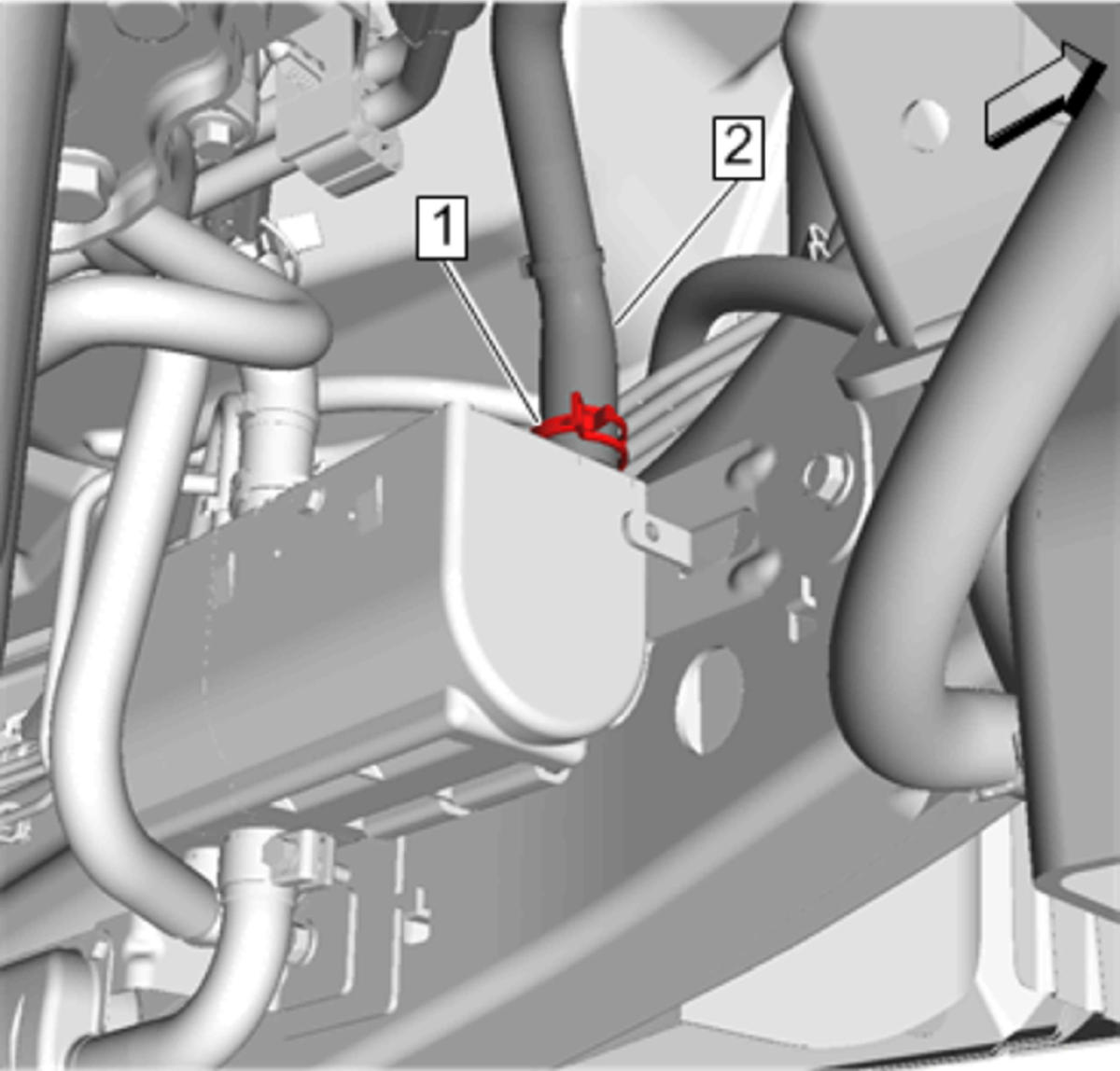

Auxiliary Heater Inlet and Outlet Pipe (2) @ Heater Coolant Heater - Remove - Auxiliary Heater Inlet and Outlet Pipe Replacement (LWN) , or Auxiliary Heater Inlet and Outlet Pipe Replacement (L96, LV1 with C36)

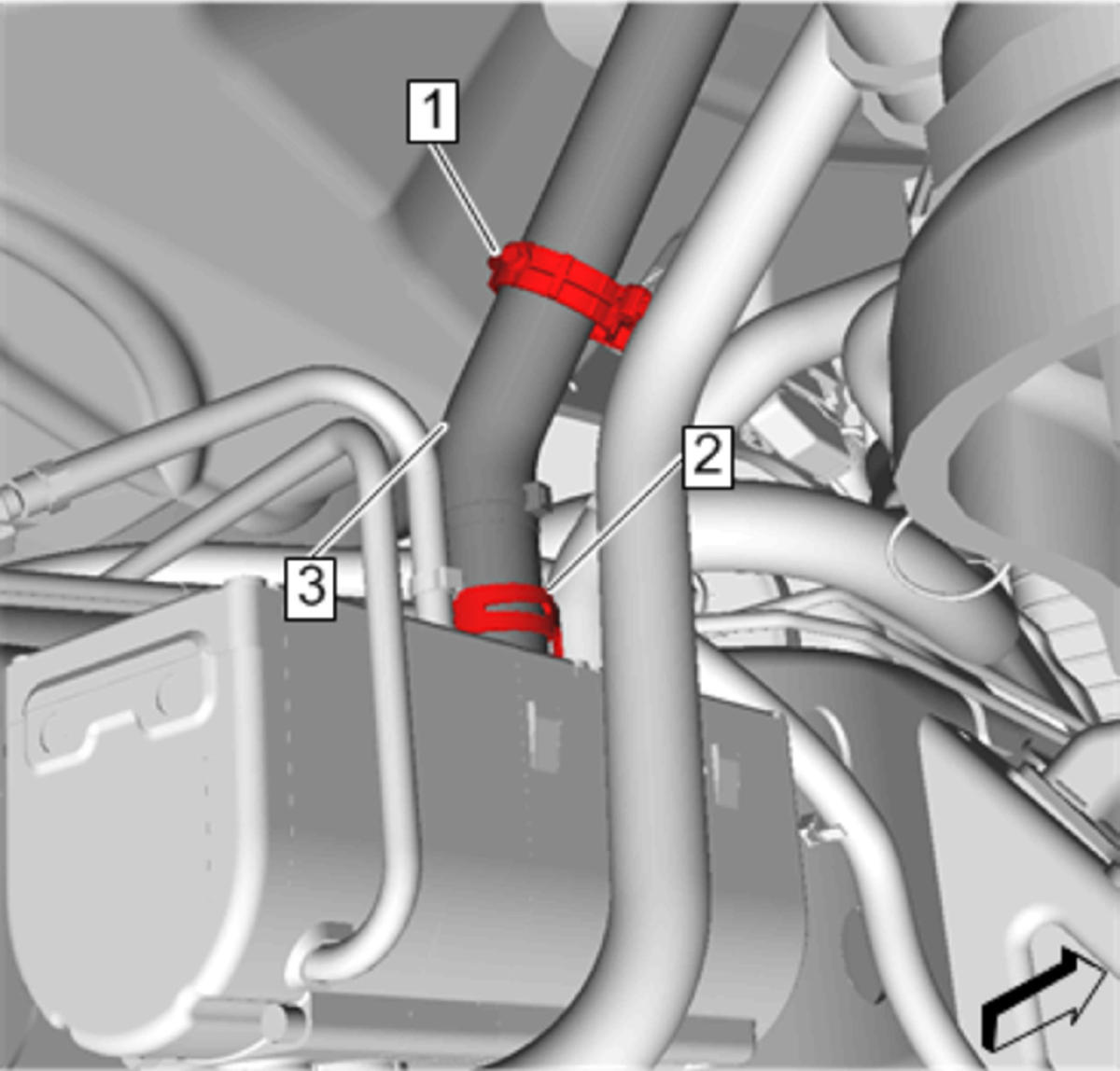

Fuel Heater Outlet Hose (3) @ Heater Coolant Heater - Remove - Fuel Heater Outlet Hose Replacement (LWN)
Fuel Heater Inlet Hose (2) @ Heater Coolant Heater - Remove - Fuel Heater Inlet Hose Replacement (LWN)

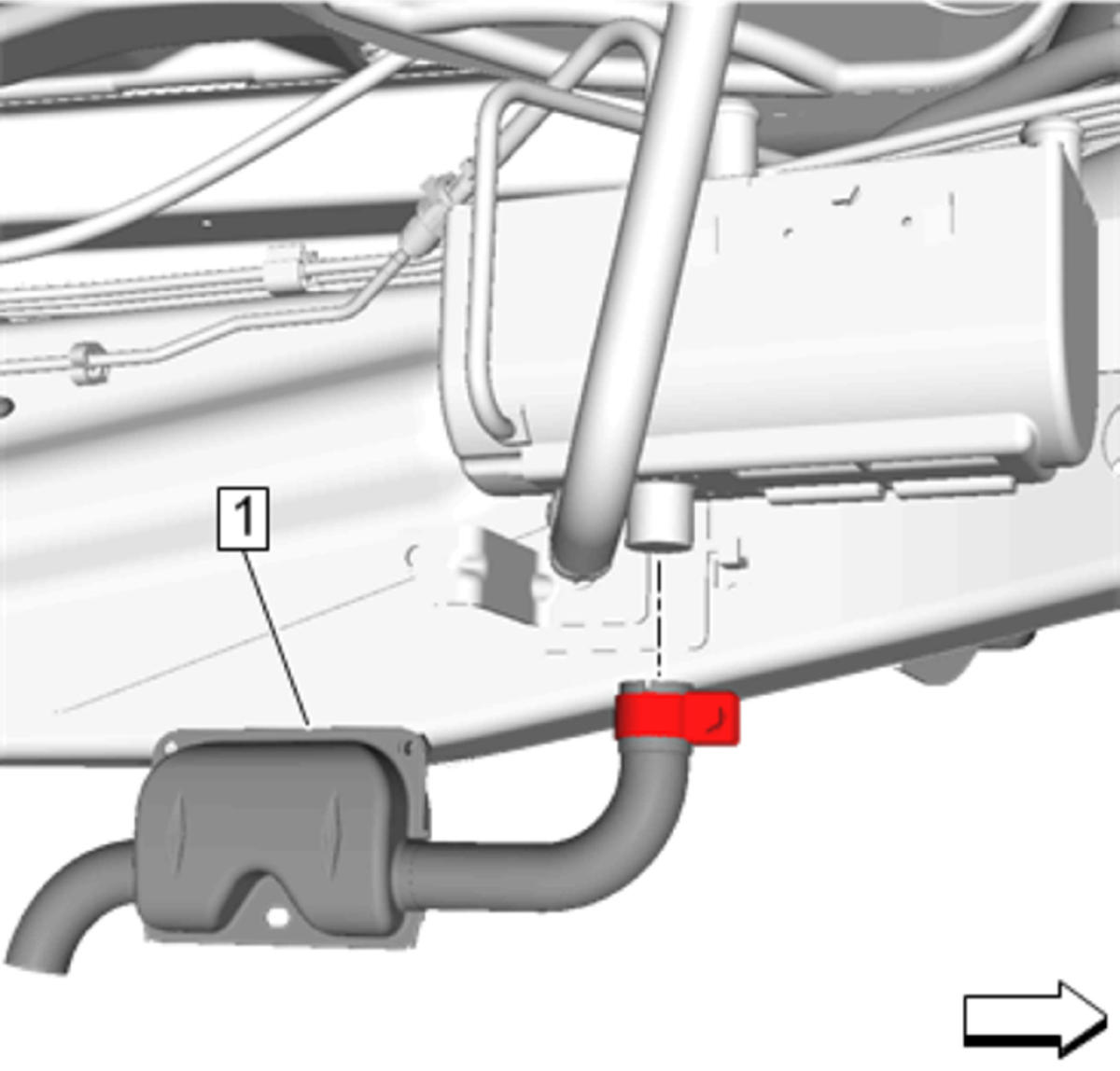

Heater Coolant Heater Exhaust Muffler (1) @ Heater Coolant Heater - Remove - Heater Coolant Heater Exhaust Muffler Replacement (LWN)
Fuel Heater Pipe (1) @ Heater Coolant Heater - Remove - Fuel Heater Pipe Replacement
- Electrical Connector @ Heater Coolant Heater - Disconnect

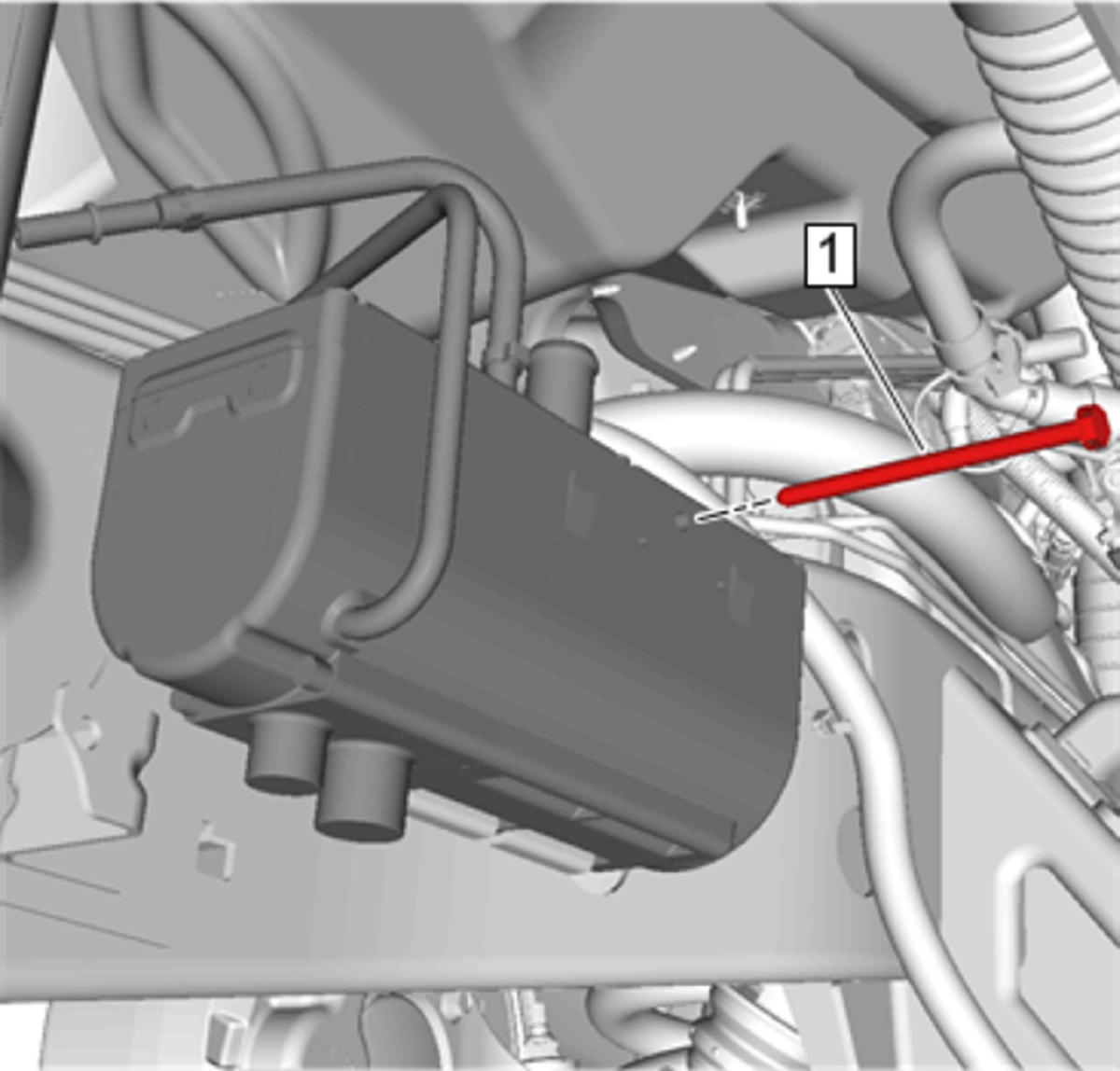

Heater Coolant Heater Bolt (1) - Remove

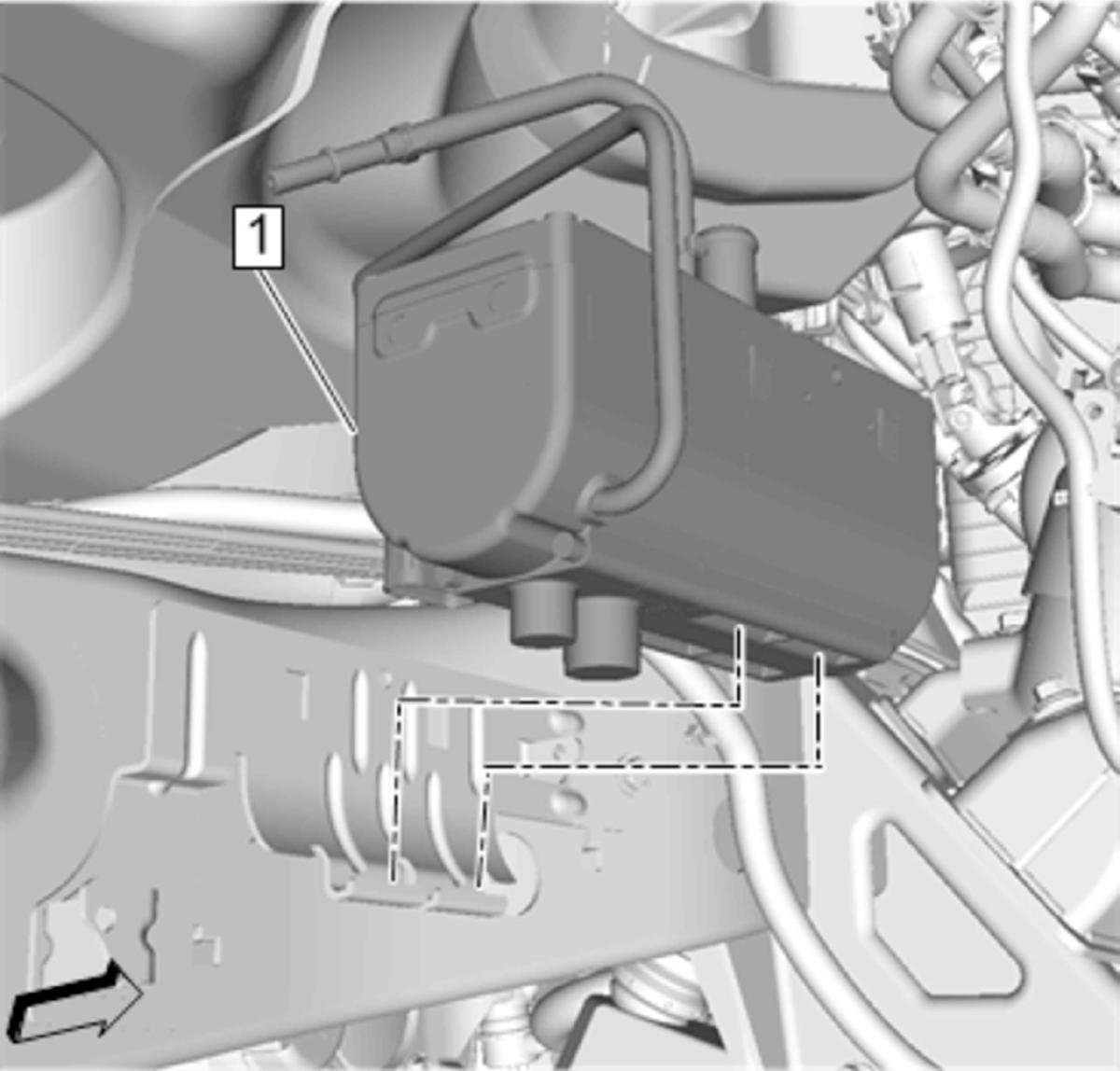

Heater Coolant Heater (1) @ Heater Coolant Heater Bracket - Remove
- Heater Coolant Heater (1) - Remove
