Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

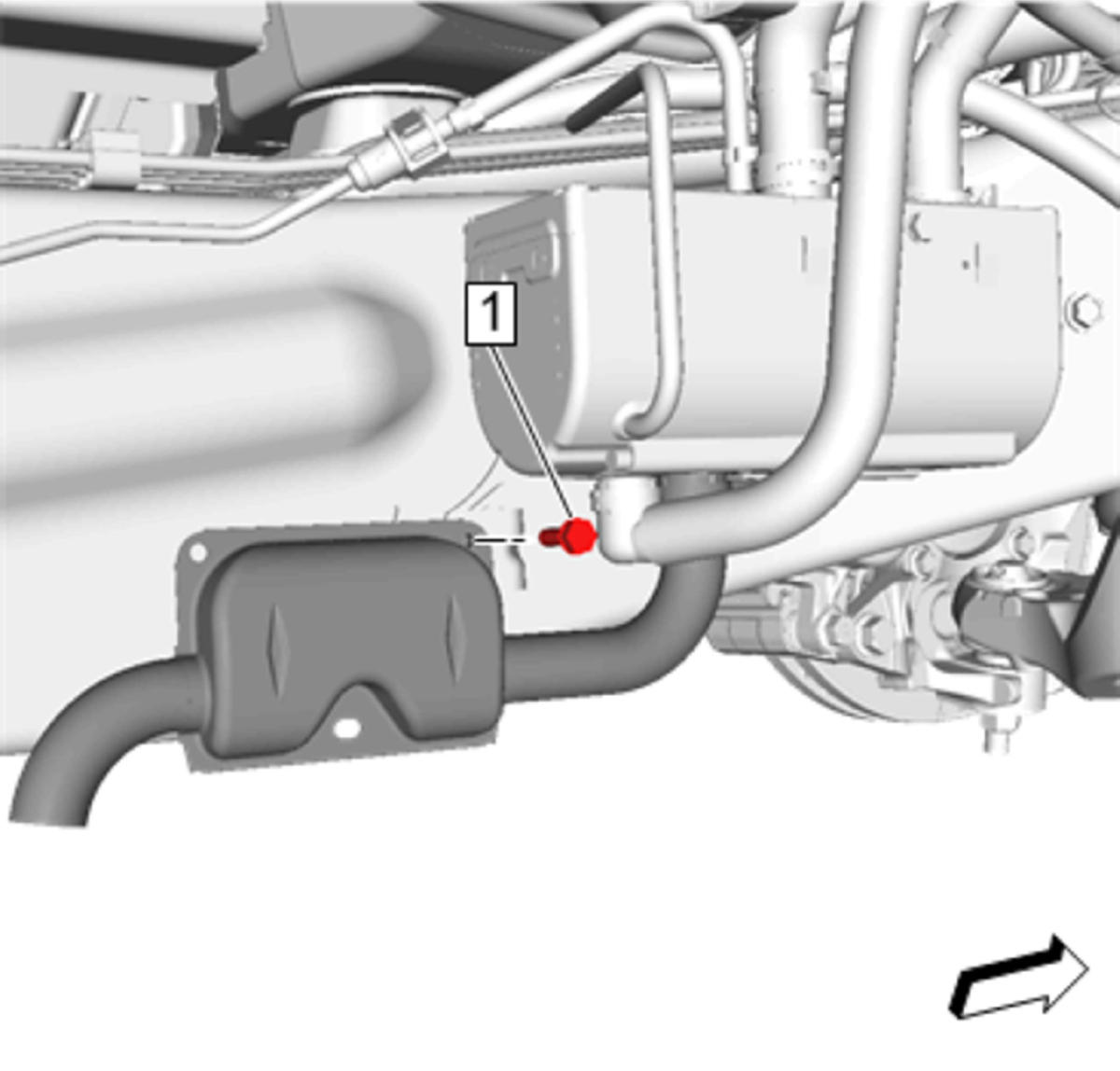

  2. GM4602803Courtesy of GENERAL MOTORS COMPANY

    Heater Coolant Heater Exhaust Muffler Bolt (1) - Remove

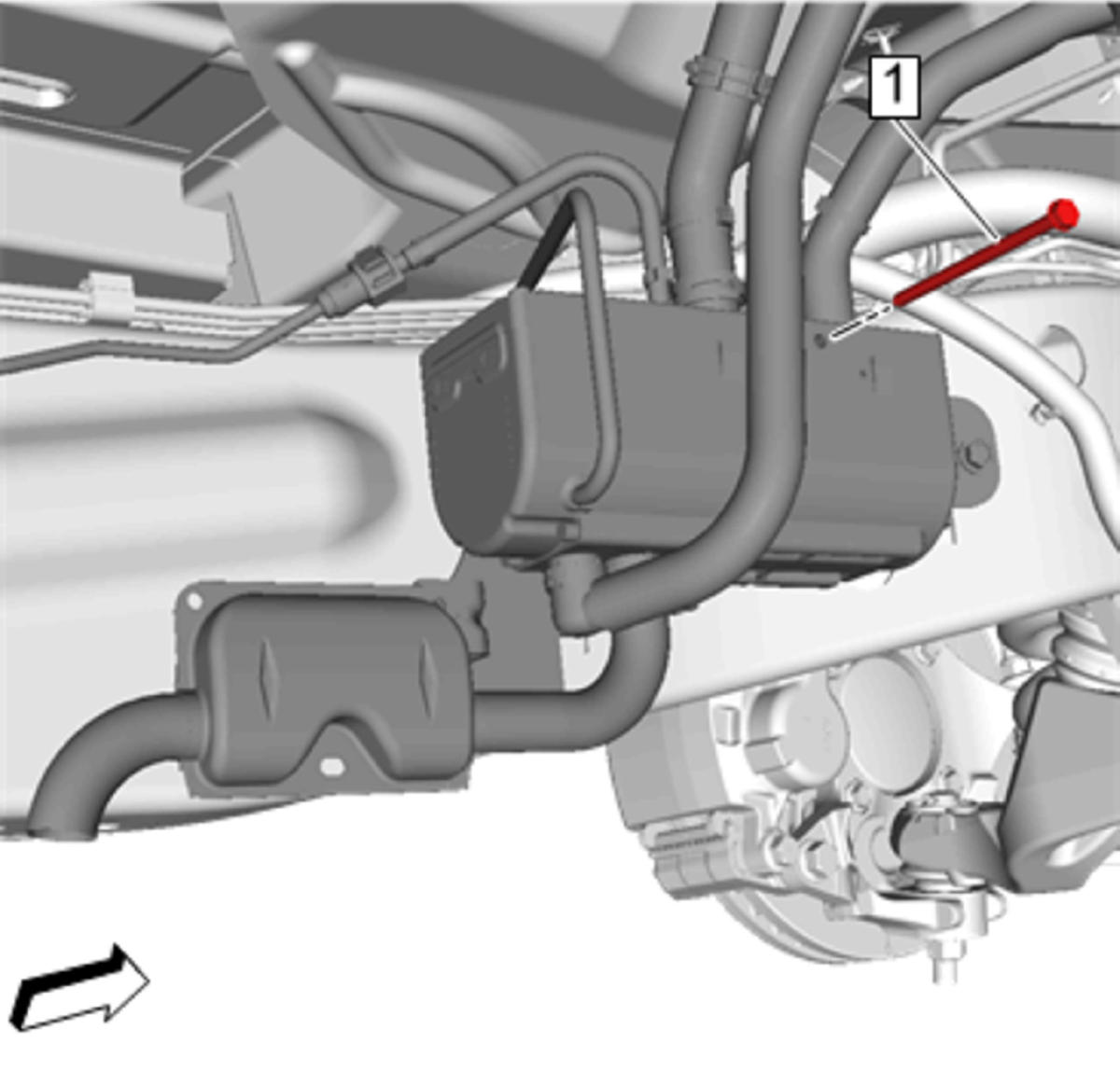

  3. GM4604050Courtesy of GENERAL MOTORS COMPANY

    Heater Coolant Heater Bolt (1) - Remove

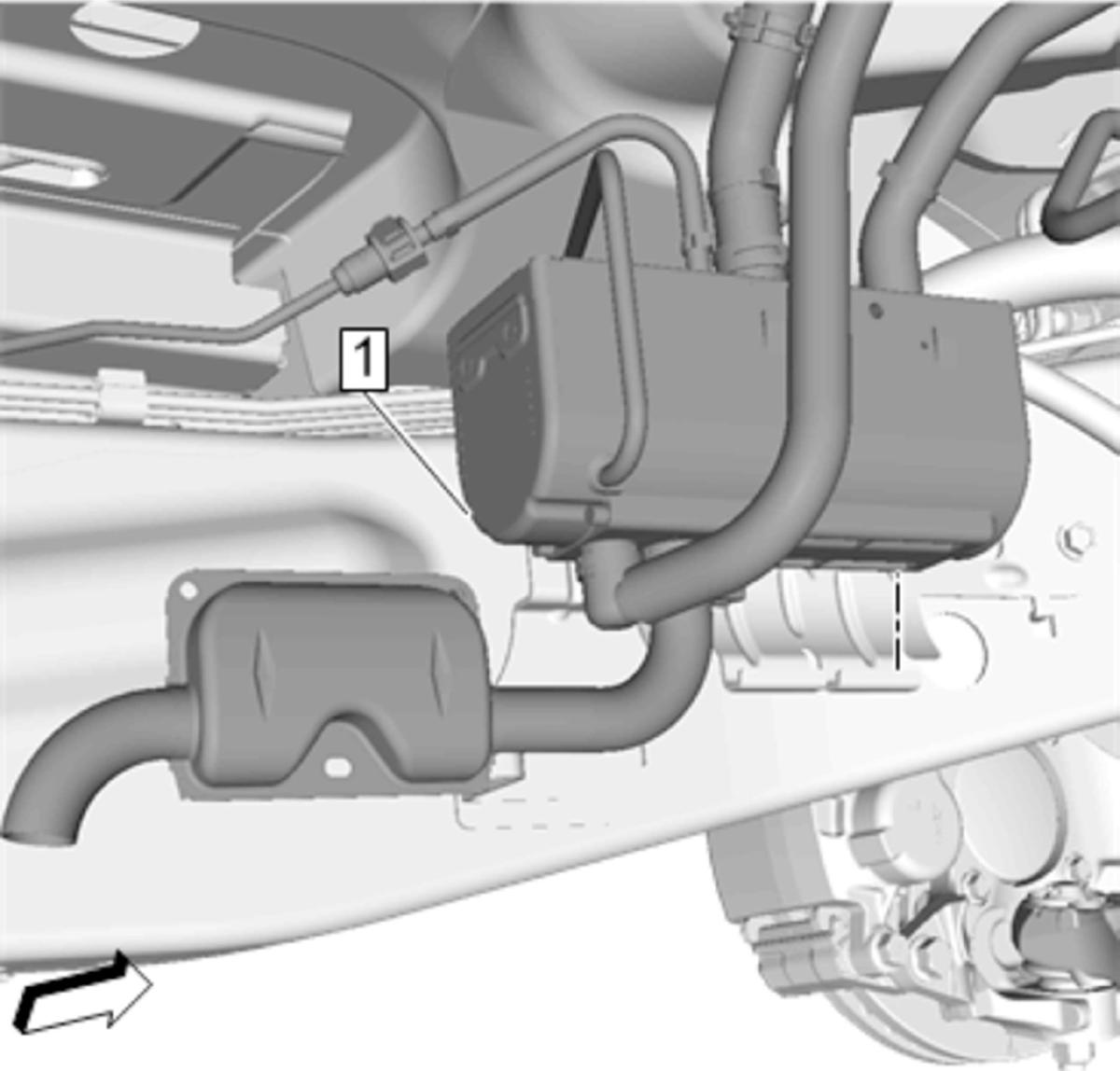

  4. GM4603950Courtesy of GENERAL MOTORS COMPANY

    Lift the Heater Coolant Heater and Heater Coolant Heater Exhaust Muffler (1) as an assembly off the Heater Coolant Heater Bracket.

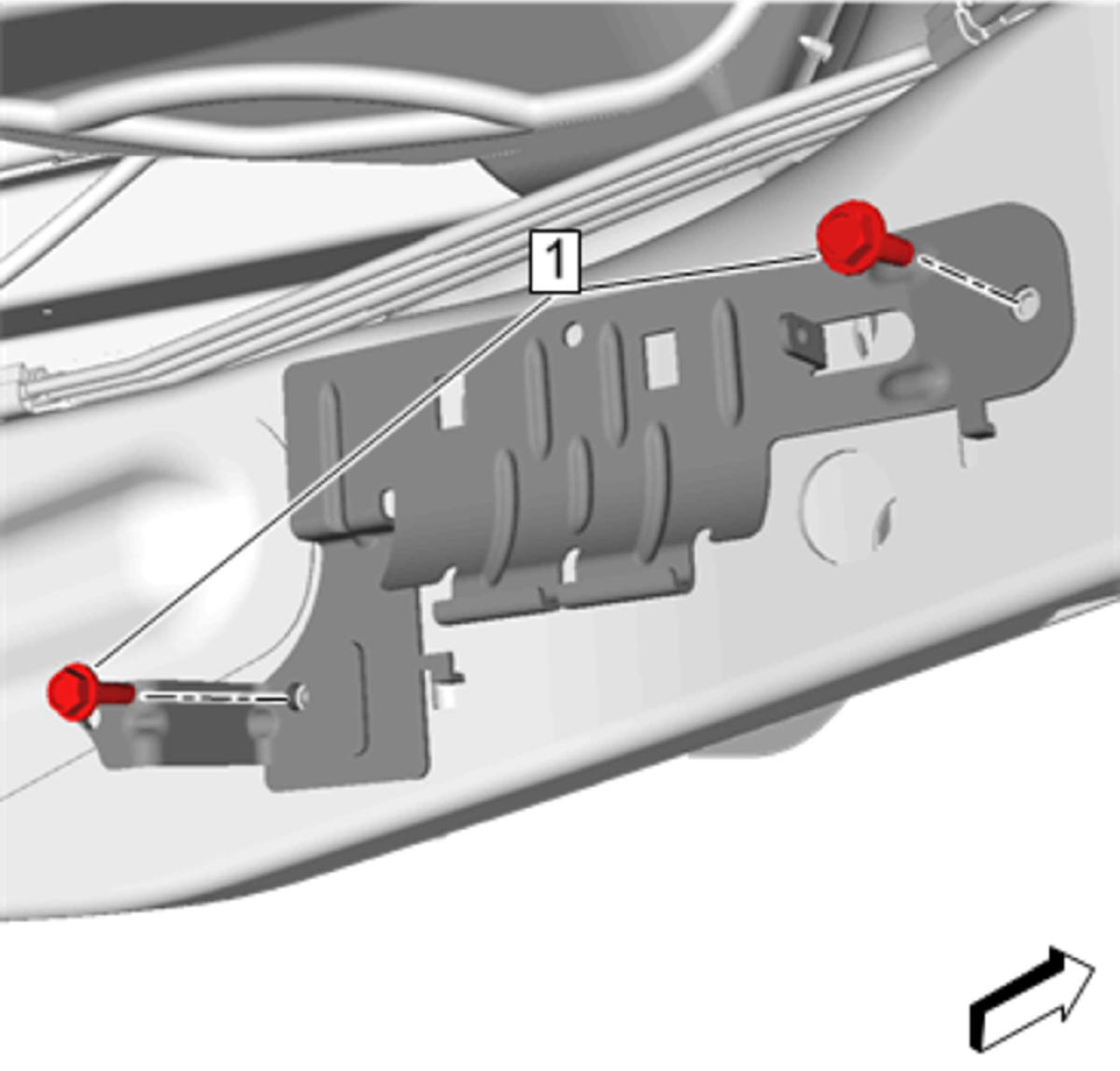

  5. GM4603948Courtesy of GENERAL MOTORS COMPANY

    Heater Coolant Heater Bracket Bolt (1) - Remove [2x]

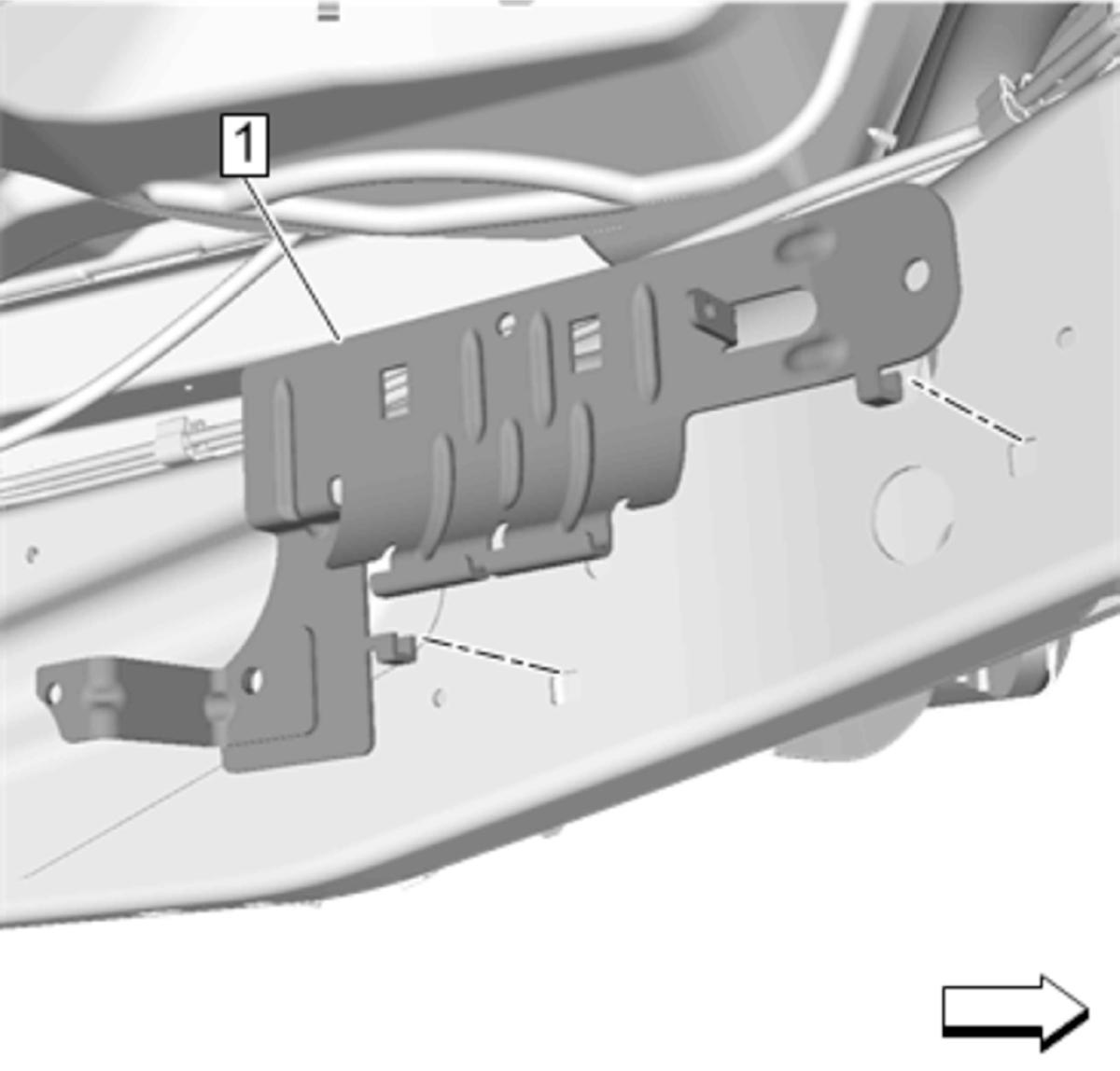

  6. GM4603949Courtesy of GENERAL MOTORS COMPANY

    Heater Coolant Heater Bracket (1) - Remove
