Floor Front Air Outlet Center Duct Replacement - Left Side

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

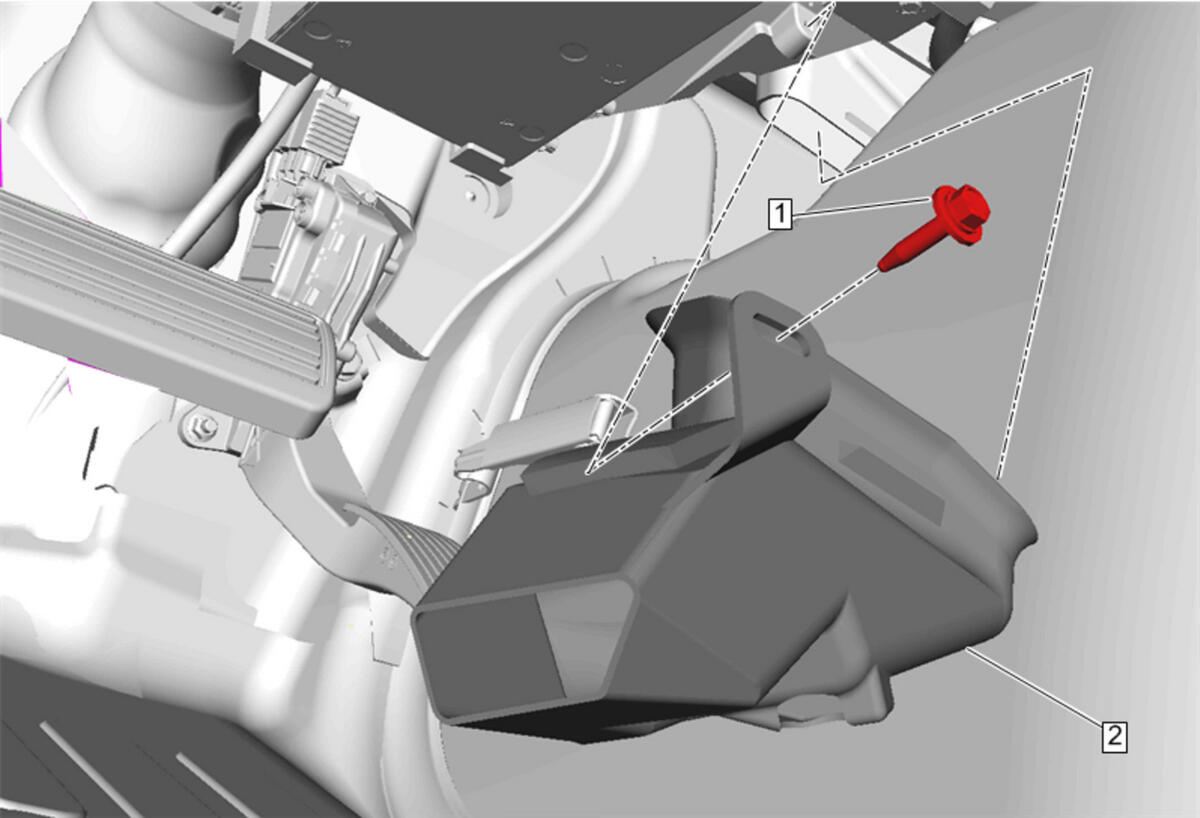

GM4859365Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Floor Front Air Outlet Center Duct Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Floor Front Air Outlet Center Duct - Left Side
