Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant. Refrigerant Recovery and Recharging .
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporator Tube (4) @ Air Conditioning Evaporator - Remove - Air Conditioning Evaporator Tube Replacement (C60) , or Air Conditioning Evaporator Tube Replacement (C69)
Courtesy of GENERAL MOTORS COMPANY

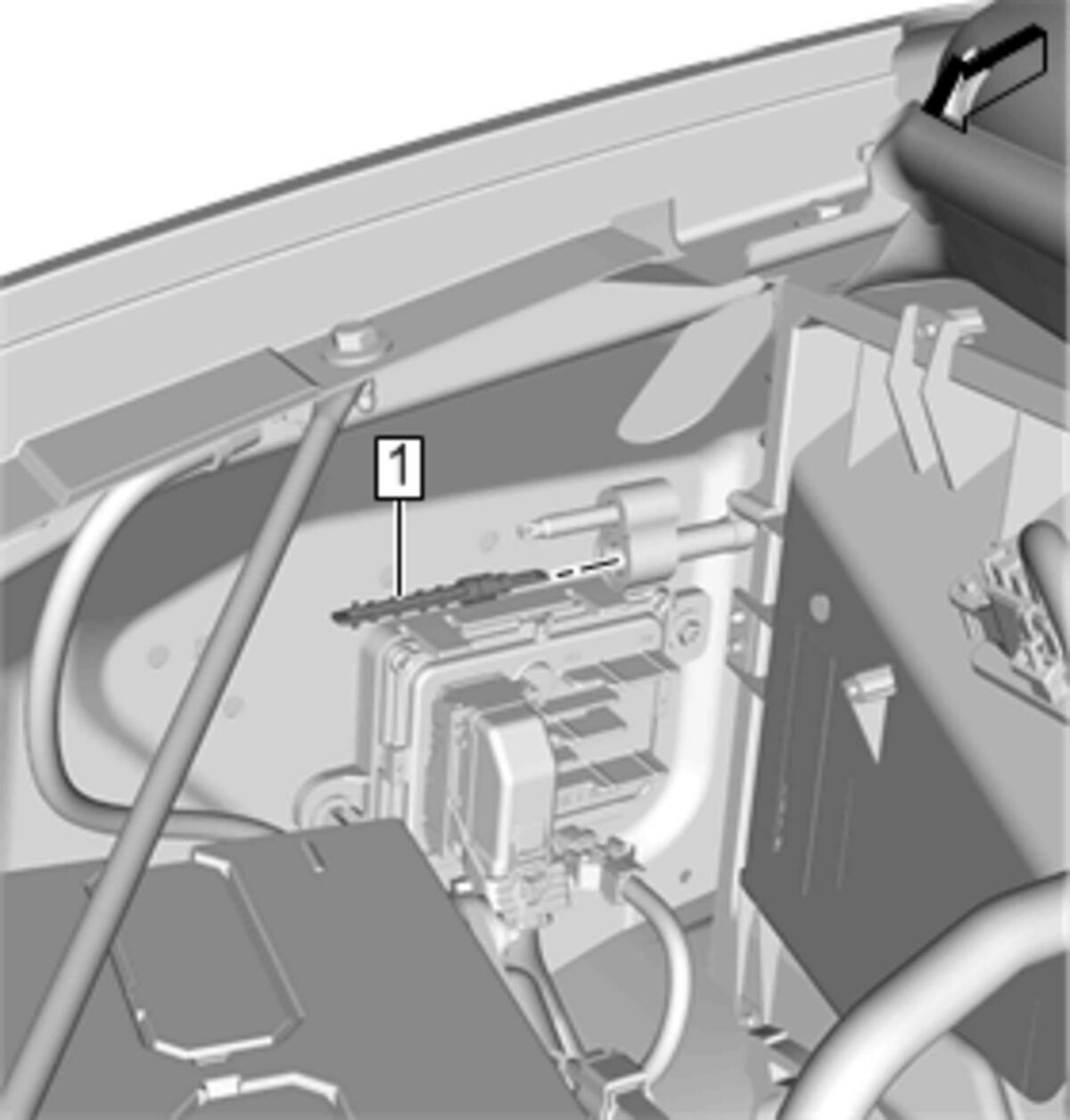

Air Conditioning Evaporator Orifice Tube (1) @ Air Conditioning Evaporator - Remove
If the air conditioning evaporator orifice tube is stuck perform the following:
- Remove as much of the impacted residue as possible.
- Carefully apply heat with a heat gun, or hair dryer 7 mm (0.25 in) from the dimples on the inlet pipe, being sure not to overheat.
- While applying heat, use a turning motion along with a push-pull motion to loosen the impacted air conditioning evaporator orifice tube and remove.
