Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

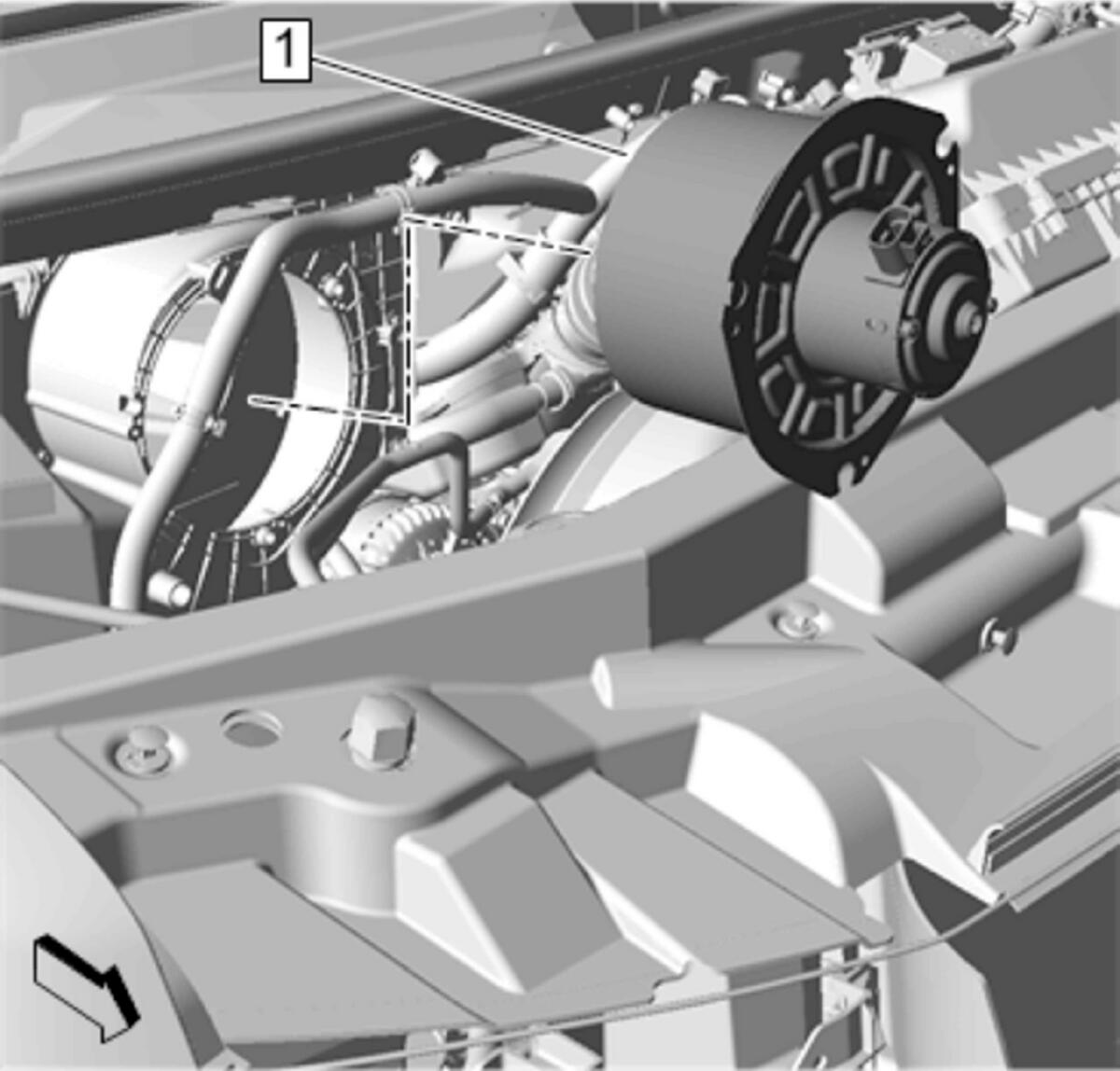

Blower Motor (1) - Install
- CAUTION:
Refer to Fastener Caution .

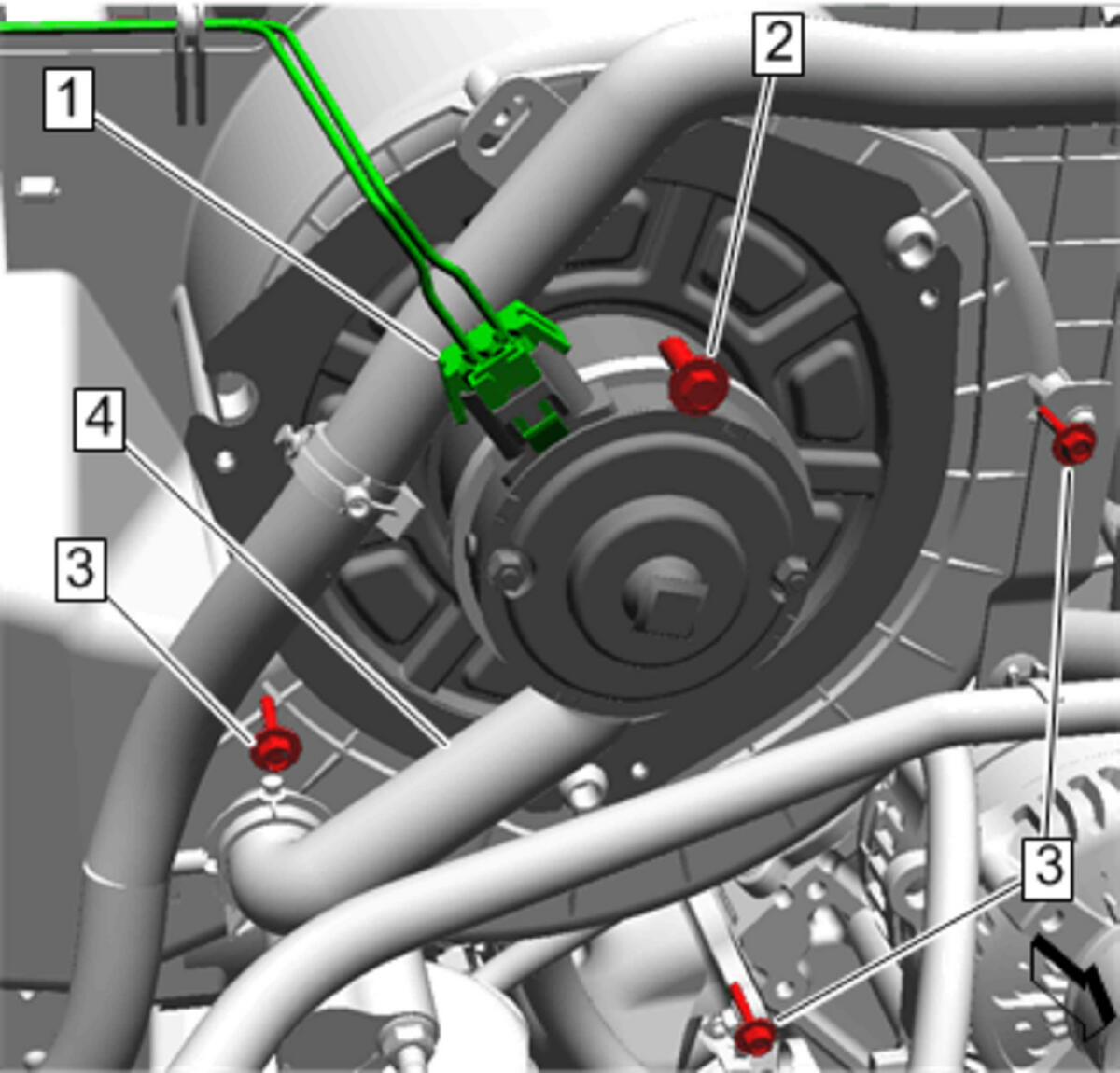

Blower Motor Bolt (3) - Install and tighten [3x] 1.9 N.m (17 lb in)
- Blower Motor Cooling Tube (4) - Install
- Reposition the wiring harness.
- Engine Wiring Harness Bolt (2) - Install and tighten 1.9 N.m (17 lb in)
- Connect the electrical connector. (1)
Coolant Recovery Reservoir (1) - Install - Coolant Recovery Reservoir Replacement (LV1) , or Coolant Recovery Reservoir Replacement (L96, LC8)
