Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

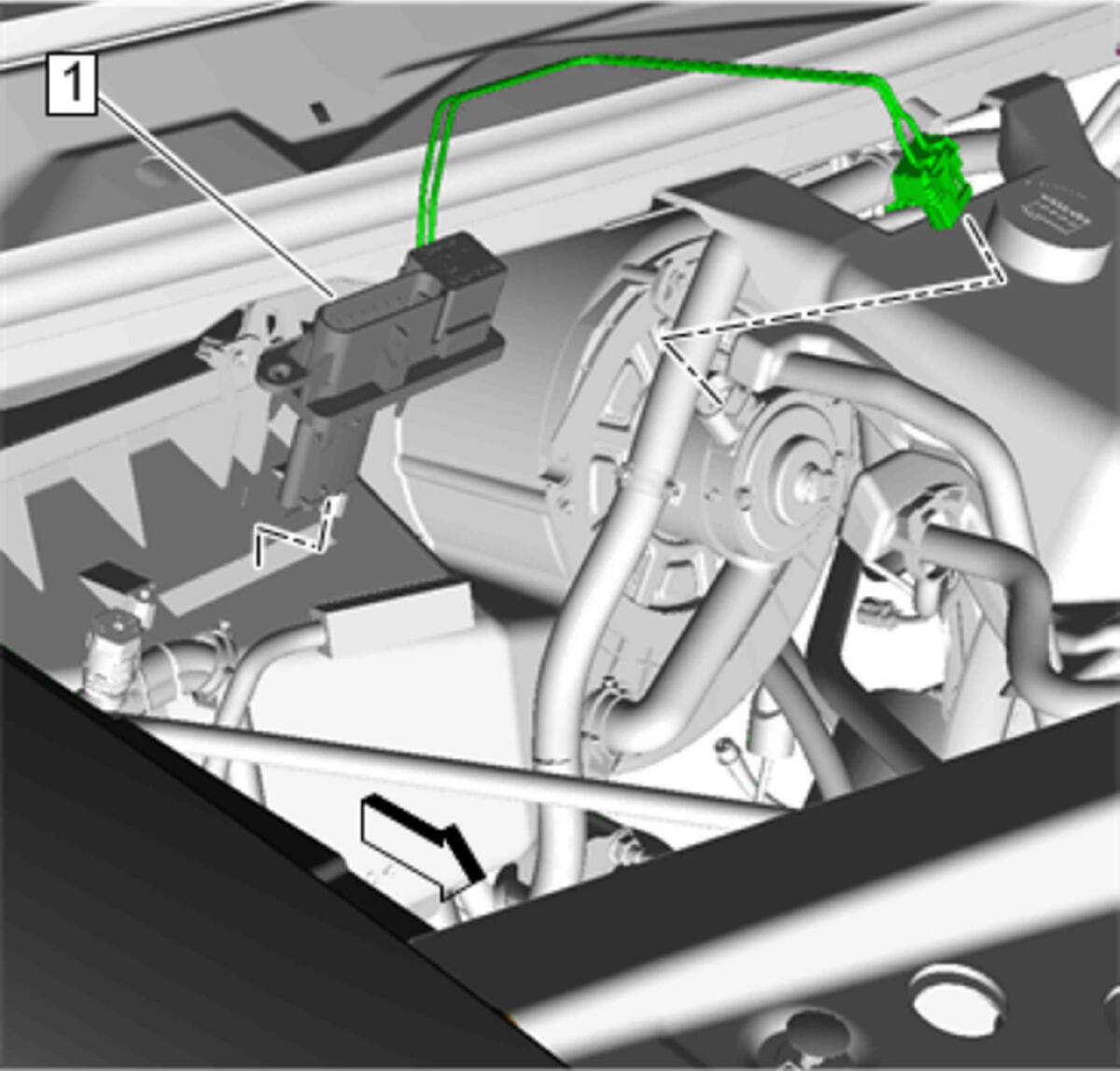

  1. GM4841298Courtesy of GENERAL MOTORS COMPANY

    Blower Motor Control Module (1) - Install

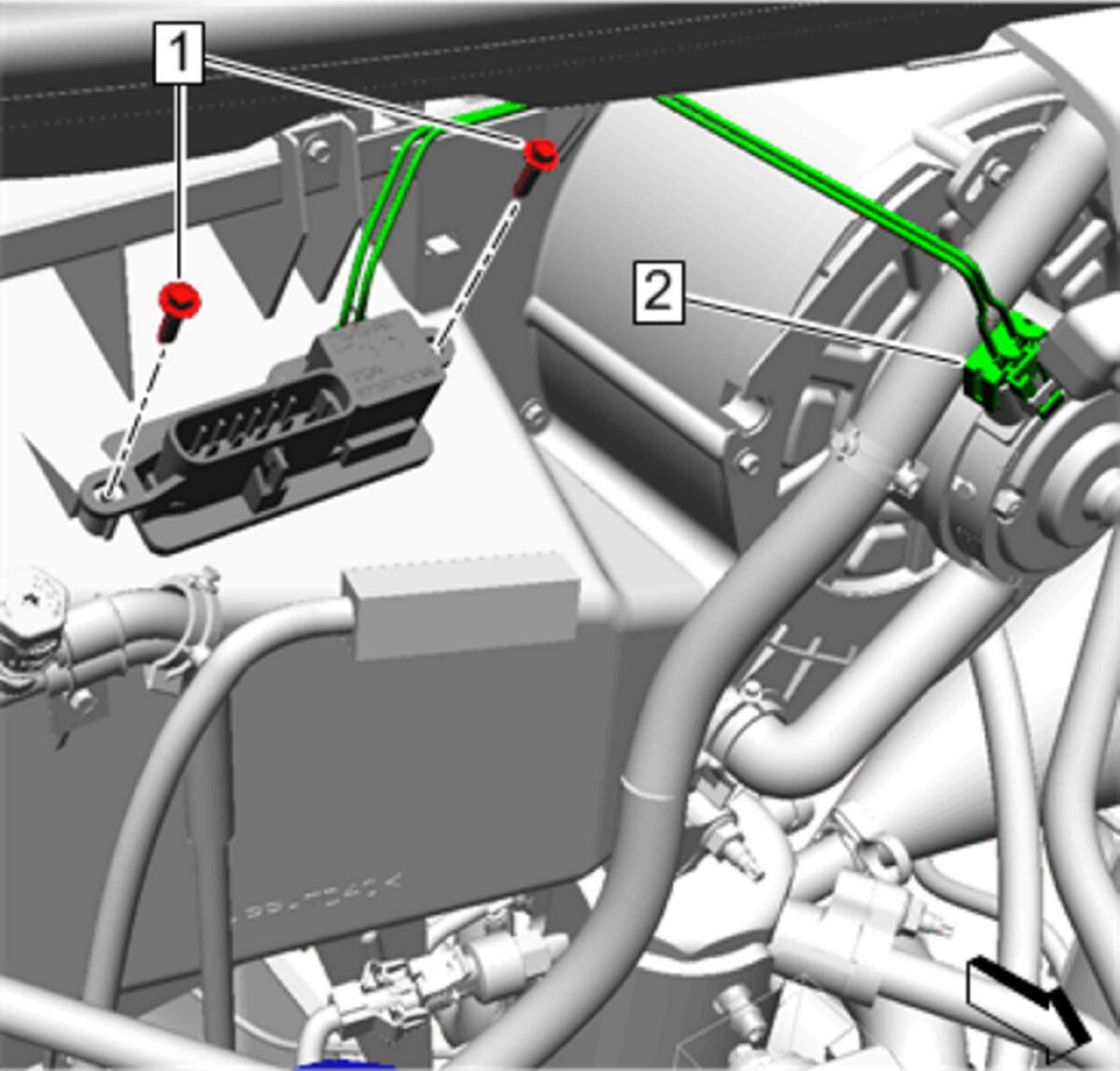

  2. GM4841285Courtesy of GENERAL MOTORS COMPANY

    Connect the blower motor electrical connector (2).

    3. CAUTION:

    Refer to Fastener Caution .

  3. Blower Motor Control Module Bolt (1) - Install and tighten [2x] 1.9 N.m (17 lb in)
  4. Connect the electrical connector.
