Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

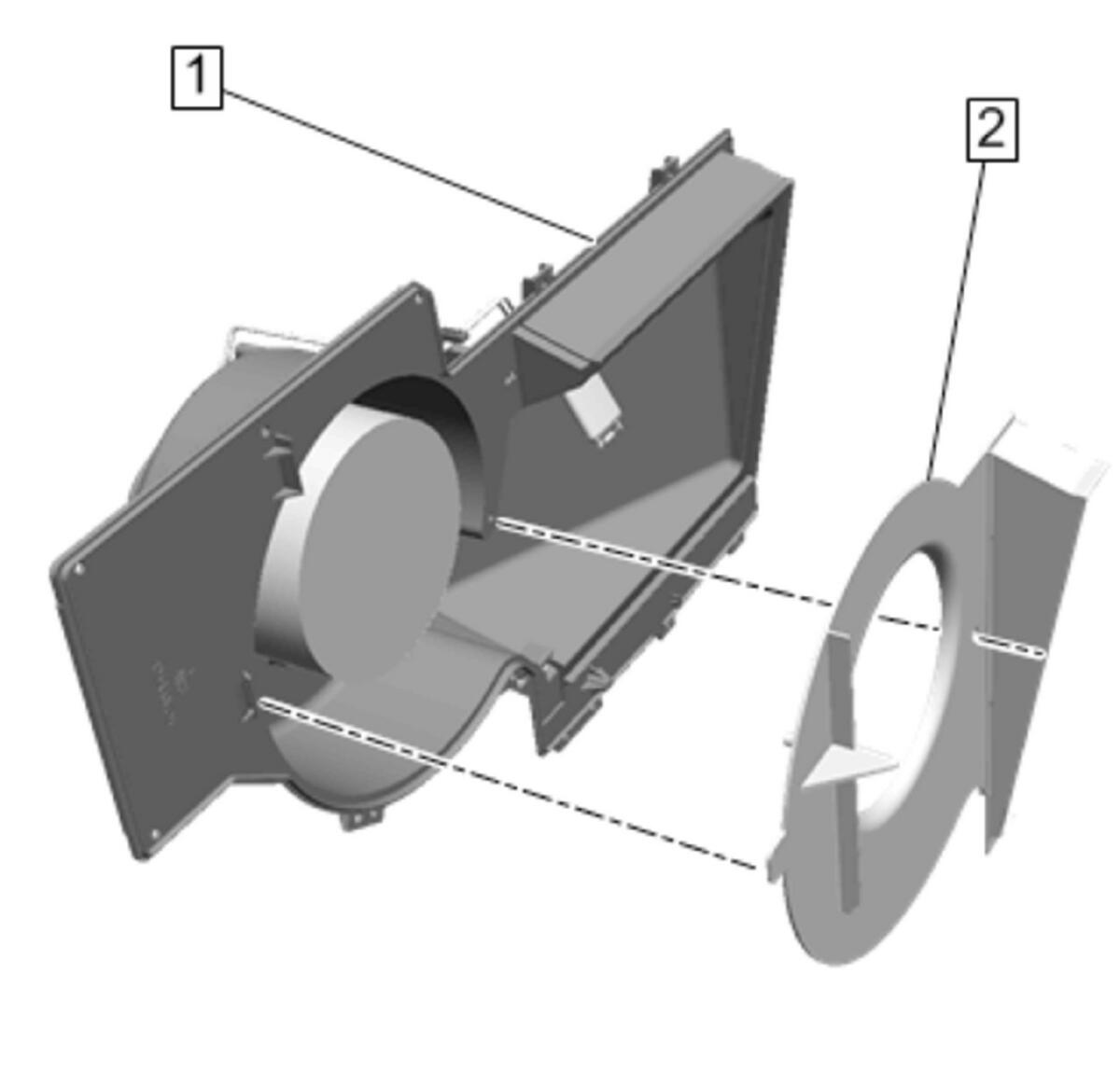

Orifice and Baffle Cutoff Case (2) @ Blower Case Assembly (1) - Install

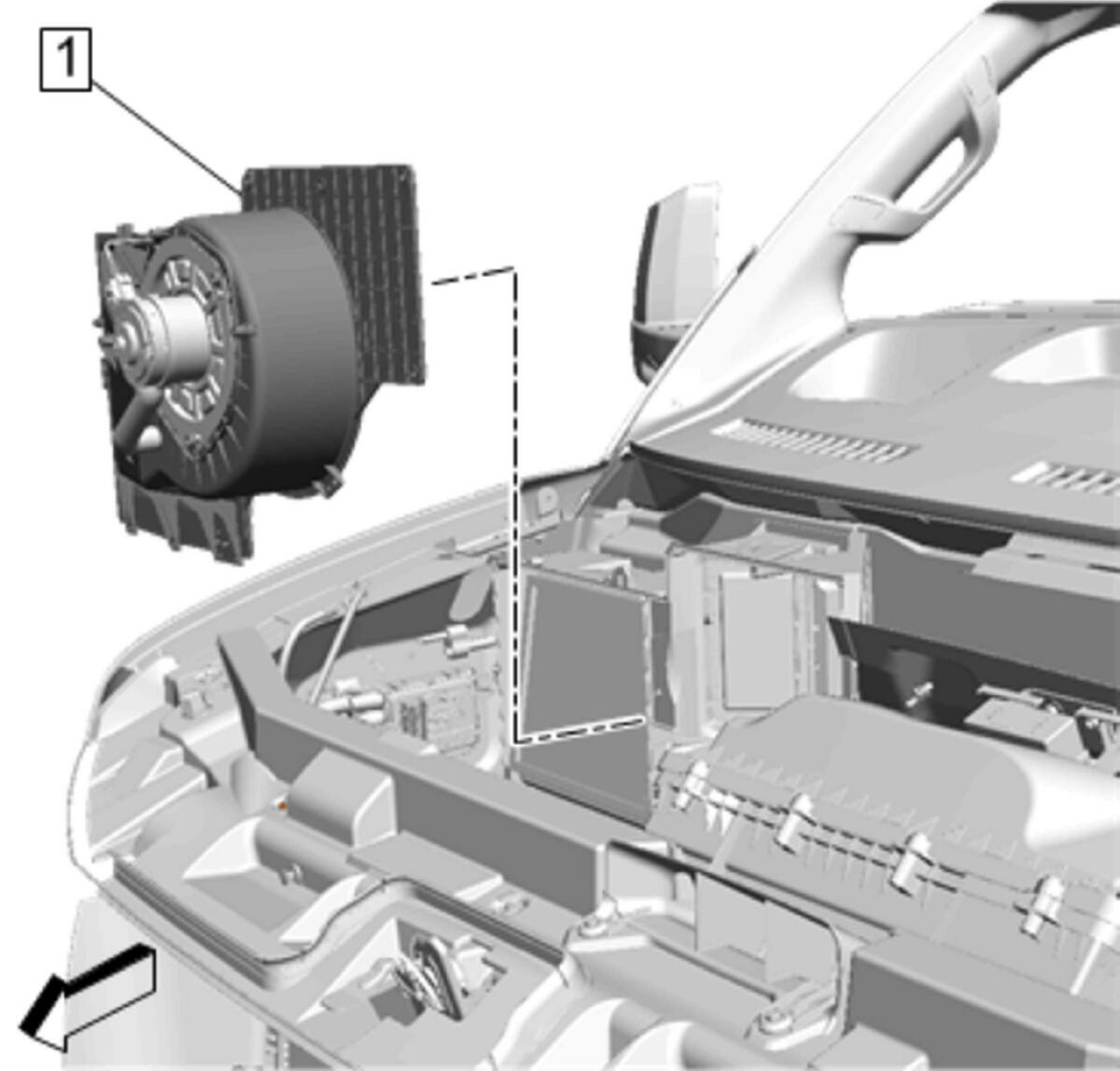

Blower Case Assembly (1) - Install
- CAUTION:
Refer to Fastener Caution .

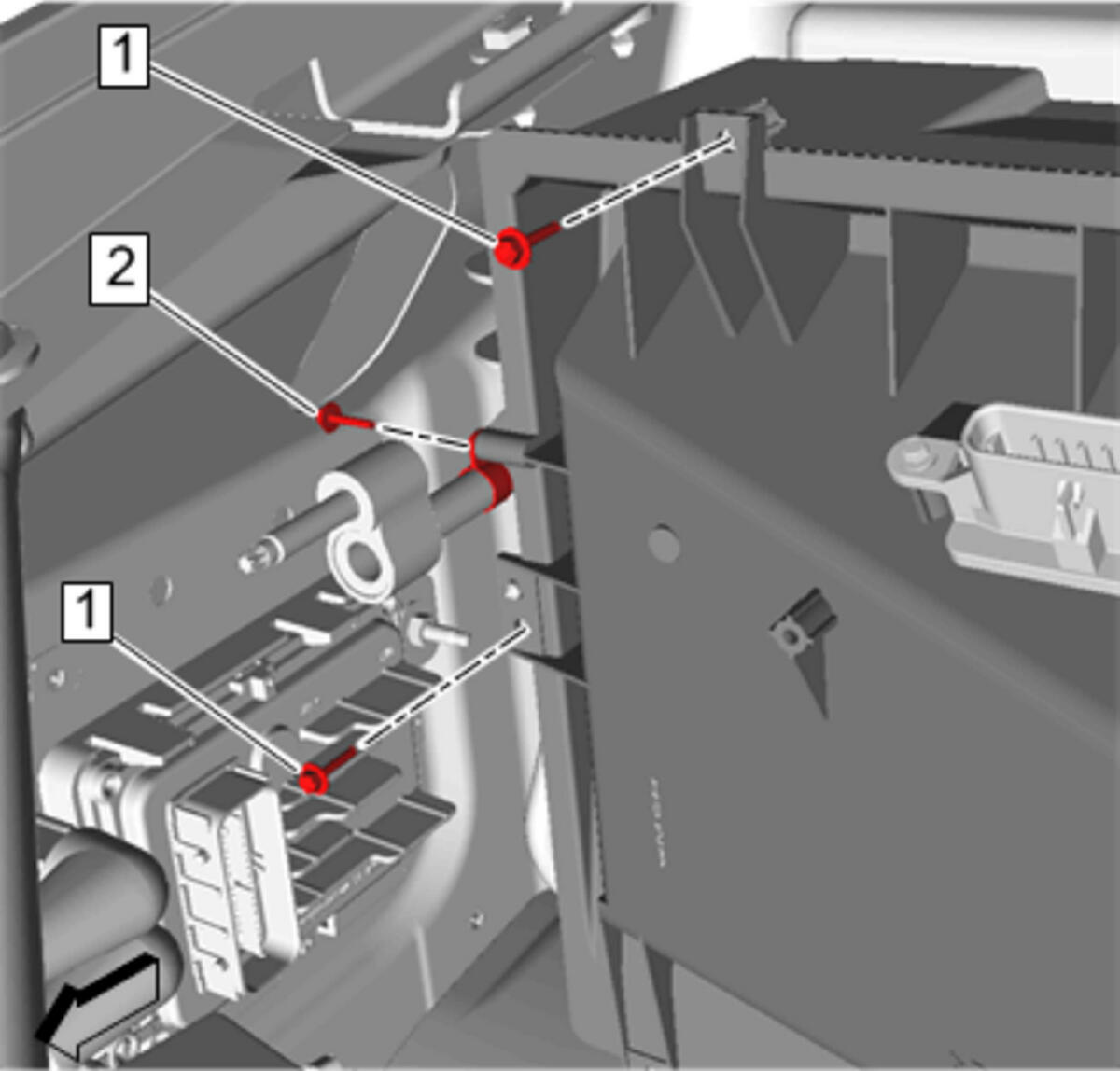

Blower Case Bolt (1) - Install and tighten [2x] 1.5 N.m (13 lb in)
- Air Conditioning Evaporator Clamp Tube Bolt (2) - Install and tighten 1.5 N.m (13 lb in)

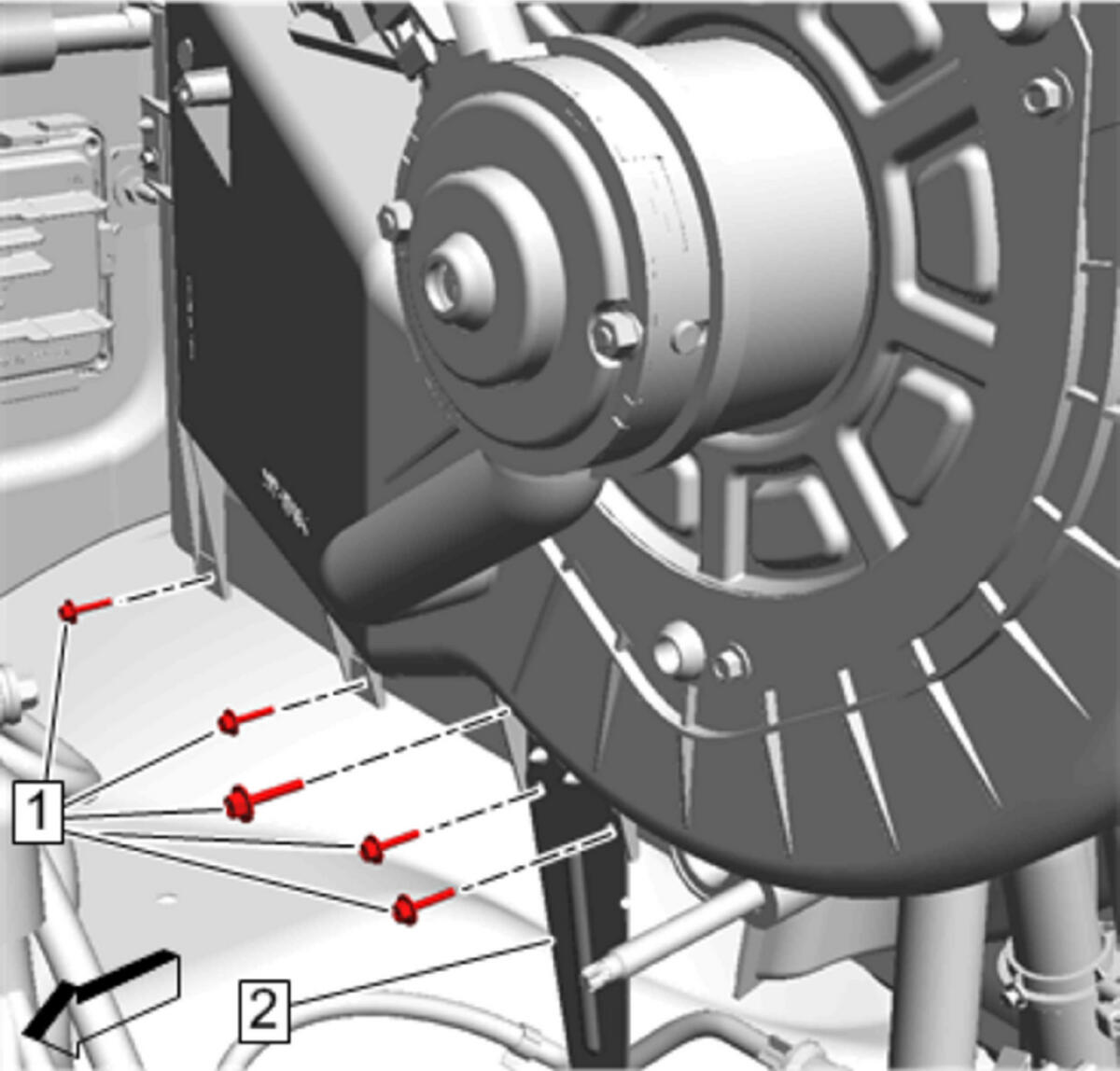

Blower Case Bolt (1) - Install and tighten [7x] 1.5 N.m (13 lb in)
Accumulator Bracket (2) - Install

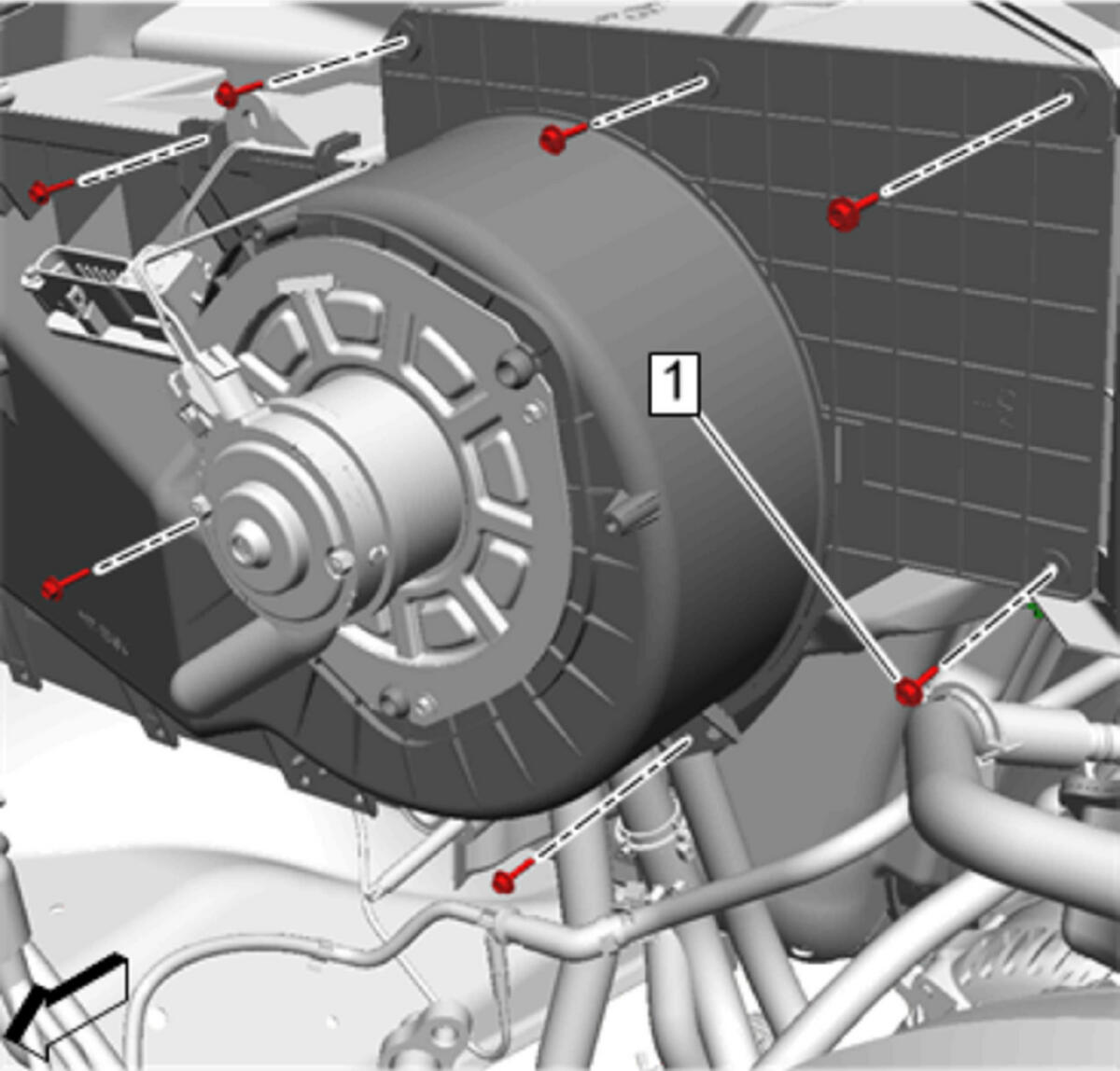

- Blower Case Bolt (1) - Install and tighten [5x] 1.5 N.m (13 lb in)

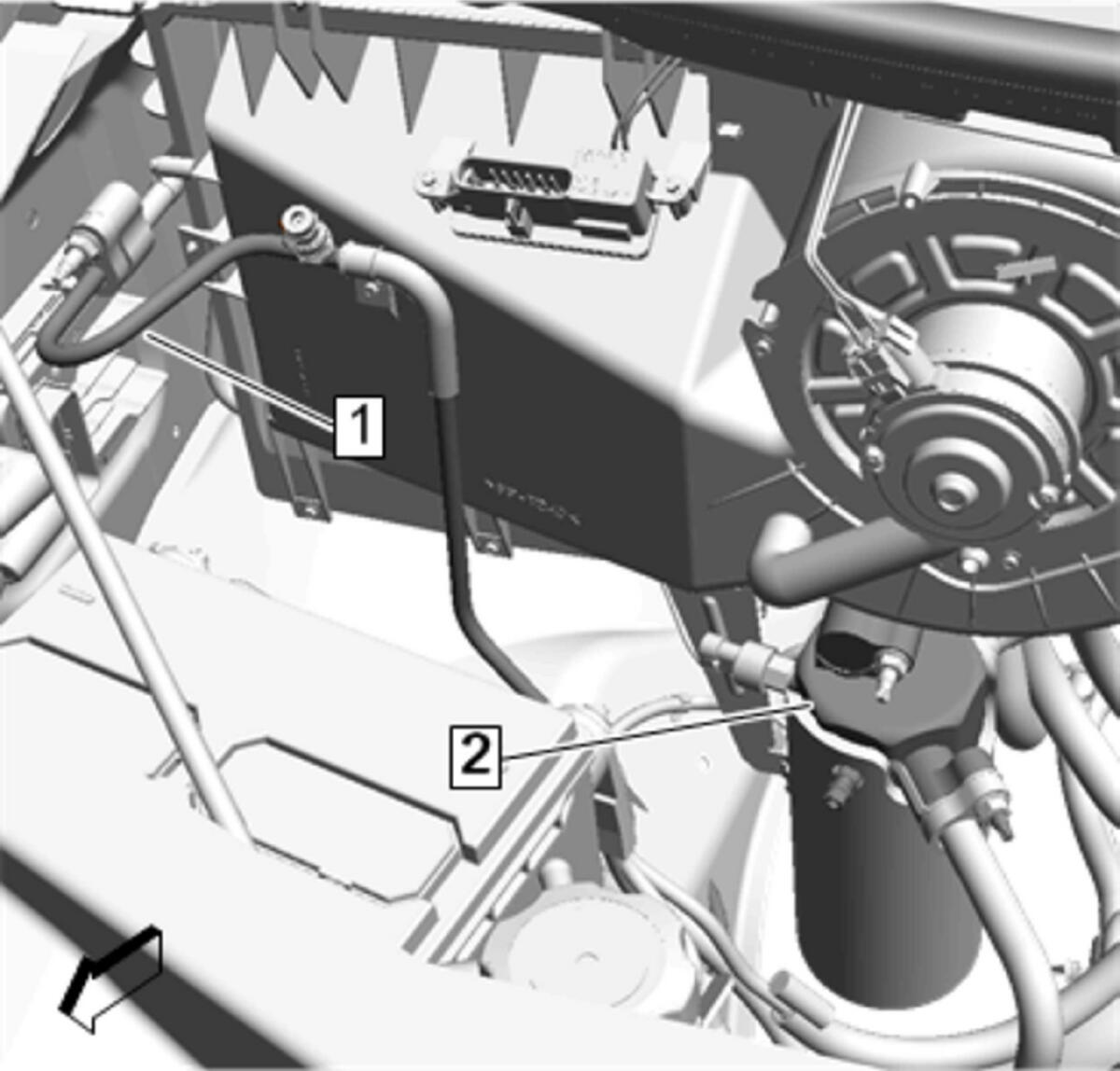

Air Conditioning Accumulator (2) @ Air Conditioning Evaporator - Install - Air Conditioning Accumulator Replacement
- Air Conditioning Evaporator Tube (1) @ Air Conditioning Evaporator - Install - Air Conditioning Evaporator Tube Replacement (C60) , or Air Conditioning Evaporator Tube Replacement (C69)

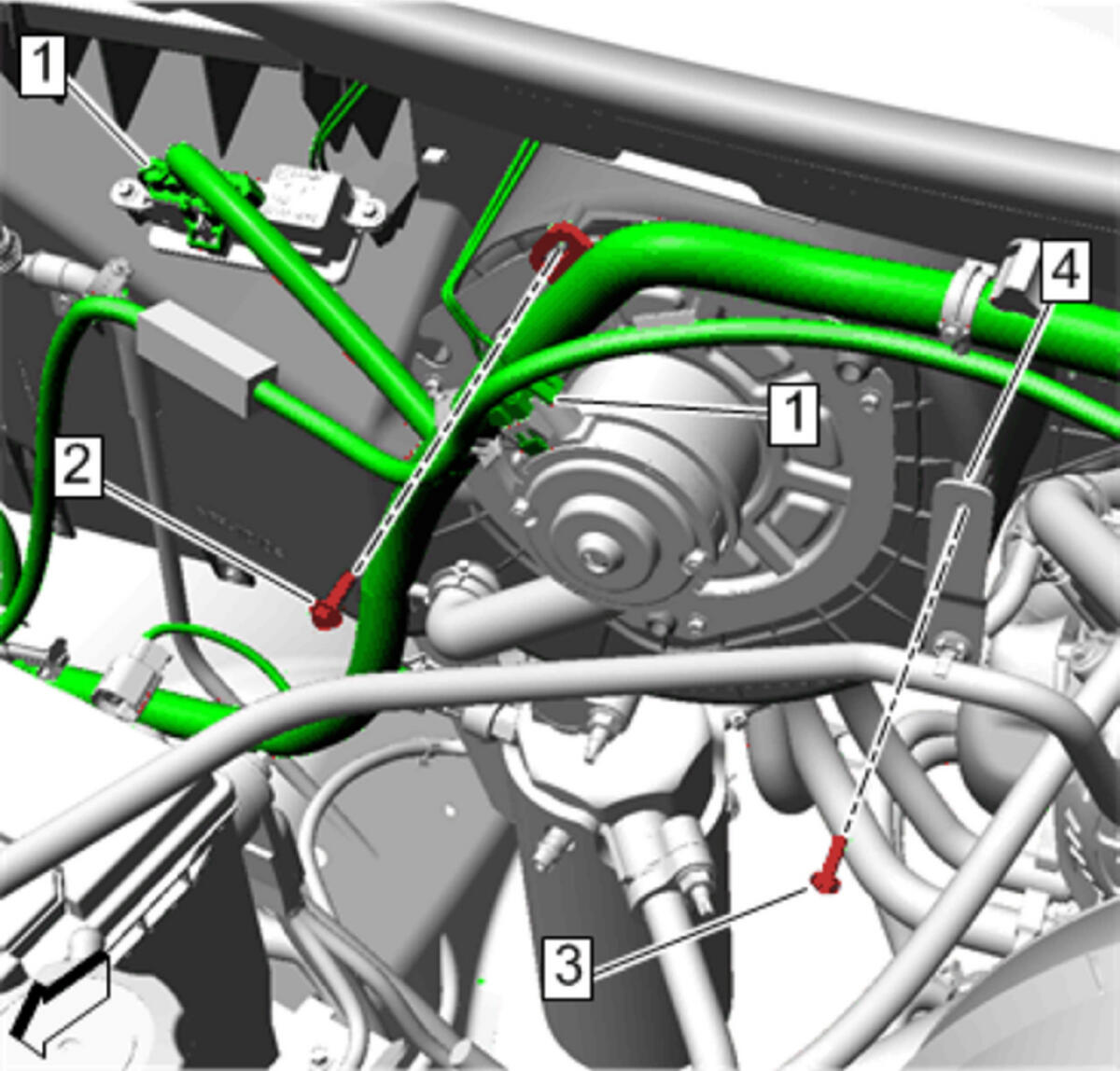

Radiator Vent Outlet Hose Bracket (4) - Install
- Radiator Vent Outlet Hose Bracket Bolt (3) - Install and tighten 1.5 N.m (13 lb in)
- Reposition the wiring harness.
- Engine Wiring Harness Bolt (2) - Install and tighten 1.9 N.m (17 lb in)
- Connect the electrical connector. (1) [2x]
Coolant Recovery Reservoir (1) - Install - Coolant Recovery Reservoir Replacement (LV1) , or Coolant Recovery Reservoir Replacement (L96, LC8)
- Evacuate and charge the refrigerant system. Refrigerant Recovery and Recharging
- Visually inspect for air conditioning system refrigerant leaks.
