Auxiliary Heater Blower Screen Replacement (Cargo Van)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

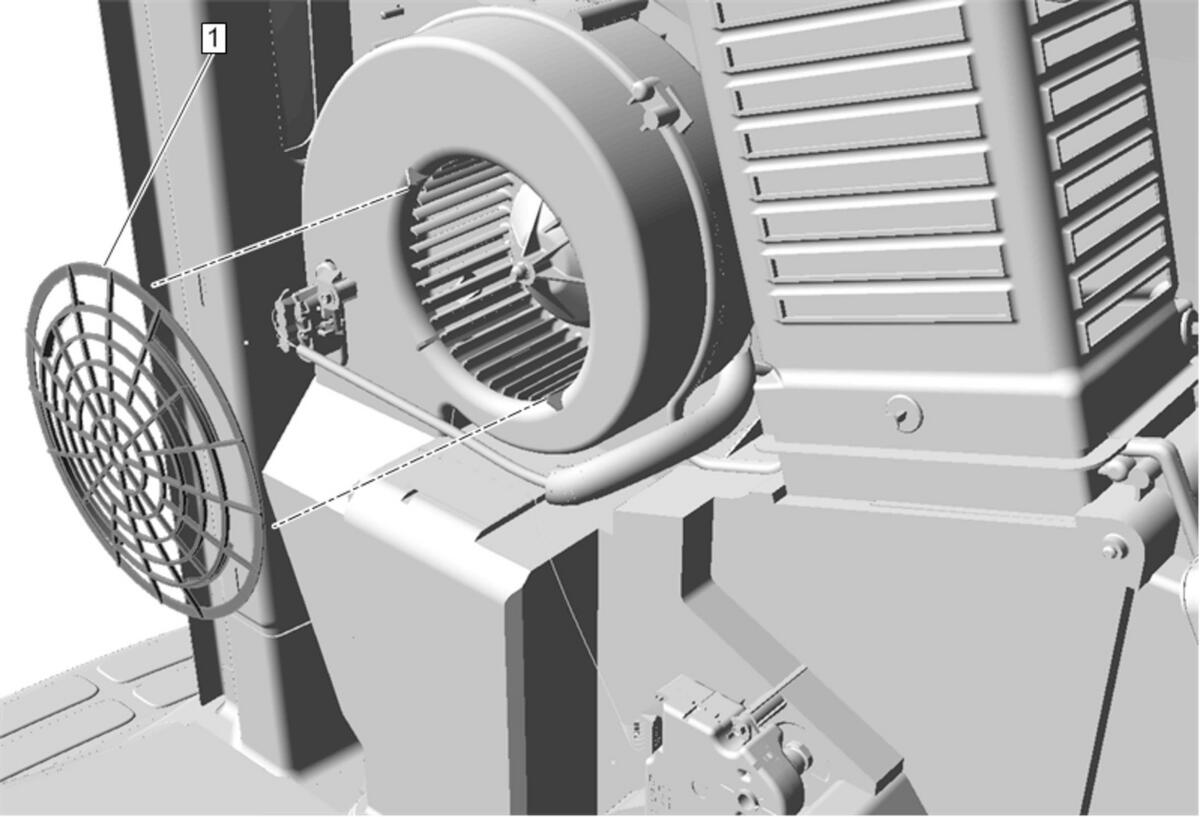

GM4846491Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Auxiliary Heater Blower Screen
Procedure
Unclip the auxiliary heater blower screen to remove.
