Auxiliary Heater Air Outlet Duct Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

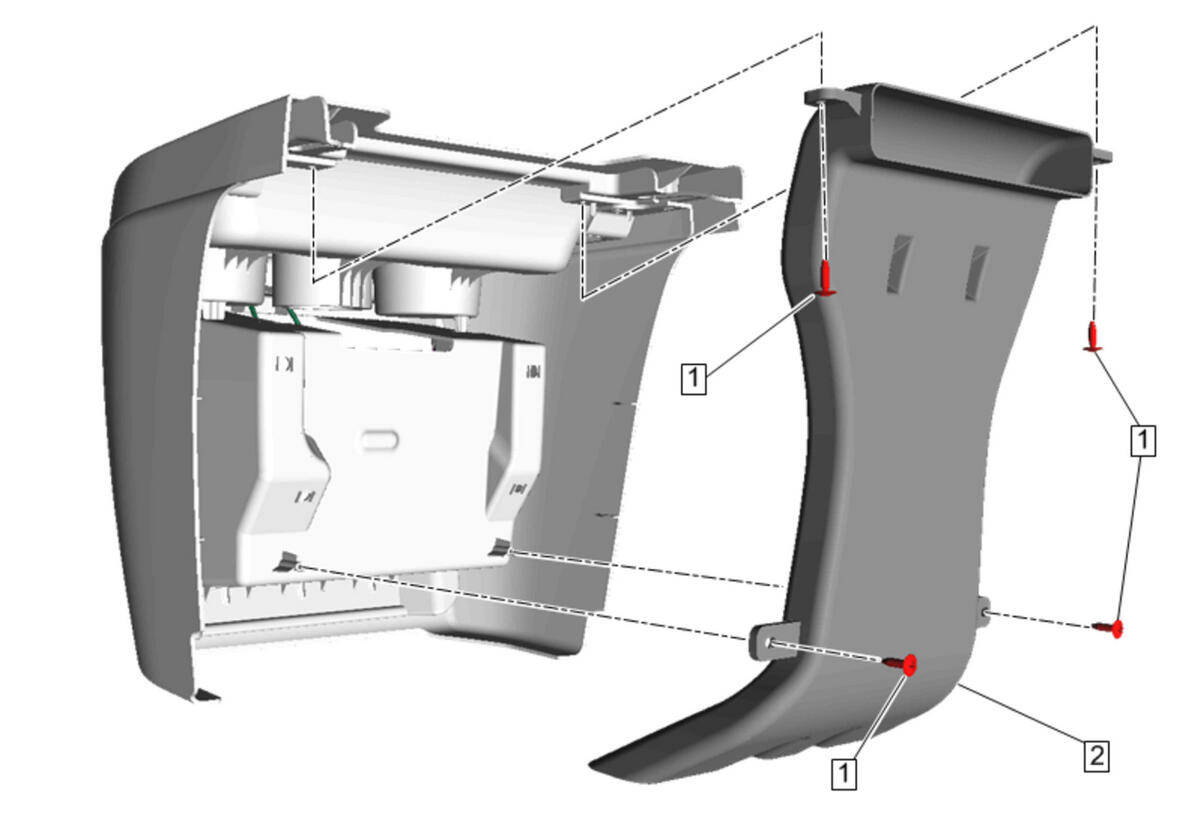

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Extension Panel Replacement |
|
| 1 | Auxiliary Heater Air Outlet Duct Screw [4x]
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Auxiliary Heater Air Outlet Duct |
