Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Coolant Recovery Reservoir (1) - Remove - Coolant Recovery Reservoir Replacement (LV1) , or Coolant Recovery Reservoir Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

Blower Case Assembly (1) - Remove - Blower Case Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel (2) - Remove - Front Floor Console Extension Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Engine Cover (1) - Remove - Engine Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Remove the right side floor front air outlet center duct (2). Floor Front Air Outlet Center Duct Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Remove the air inlet valve actuator (1). Air Inlet Valve Actuator Replacement
Courtesy of GENERAL MOTORS COMPANY

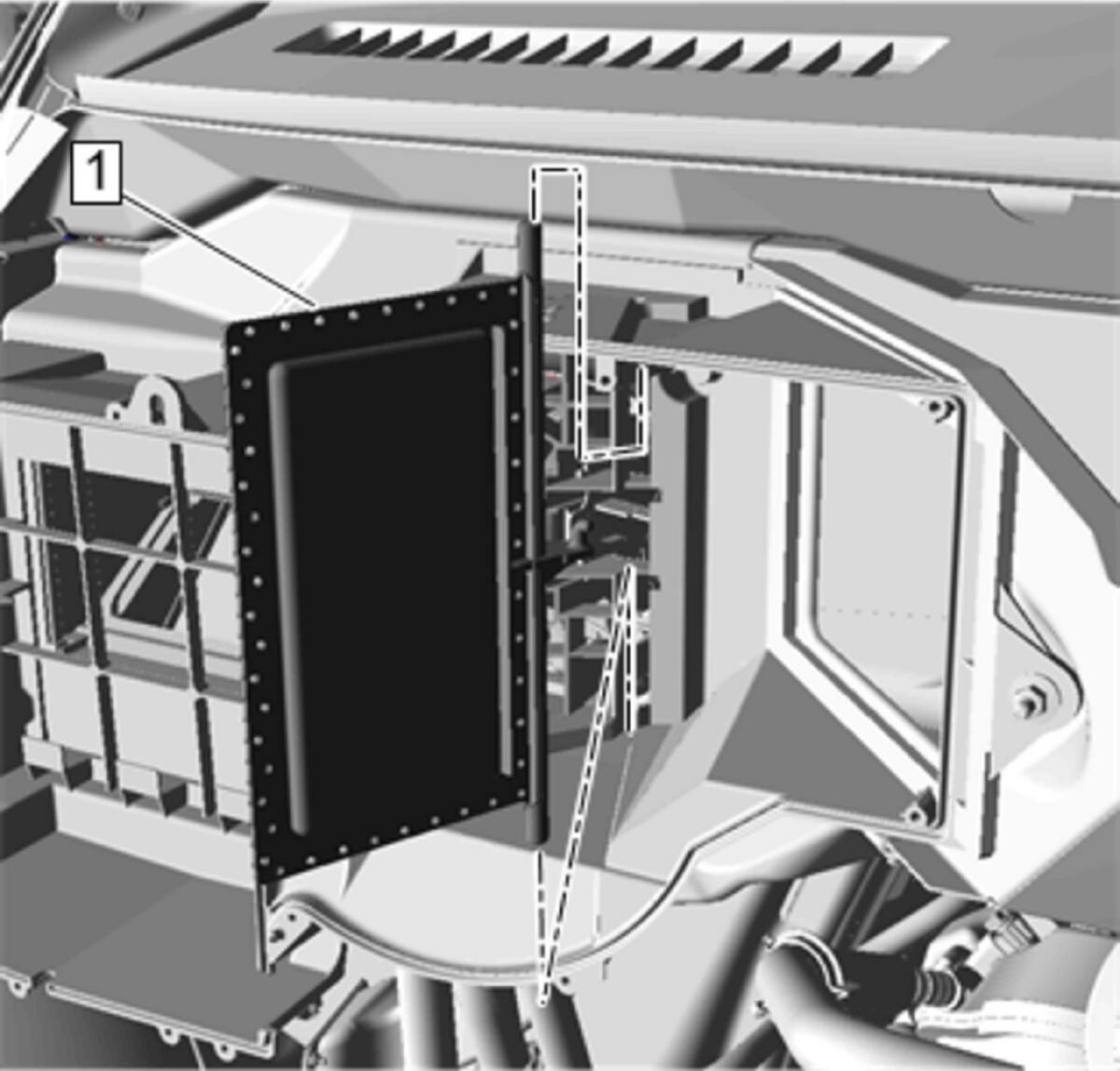

Air Inlet Valve (1) - Remove
