Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Recover the refrigerant. Refrigerant Recovery and Recharging
Air Cleaner Assembly (4) - Remove - Air Cleaner Assembly Replacement
Front Grille (3) - Remove - Front Grille Replacement (Chevrolet) , or Front Grille Replacement (GMC)
- Headlamp- Left Side - Remove - Front Headlamp Replacement
Air Conditioning Condenser Hose Nut (3) @ Air Conditioning Condenser - Remove
- Air Conditioning Condenser Hose (2) @ Air Conditioning Condenser - Remove
- Remove and DISCARD the sealing washer. (1) Air Conditioning System Seal Replacement

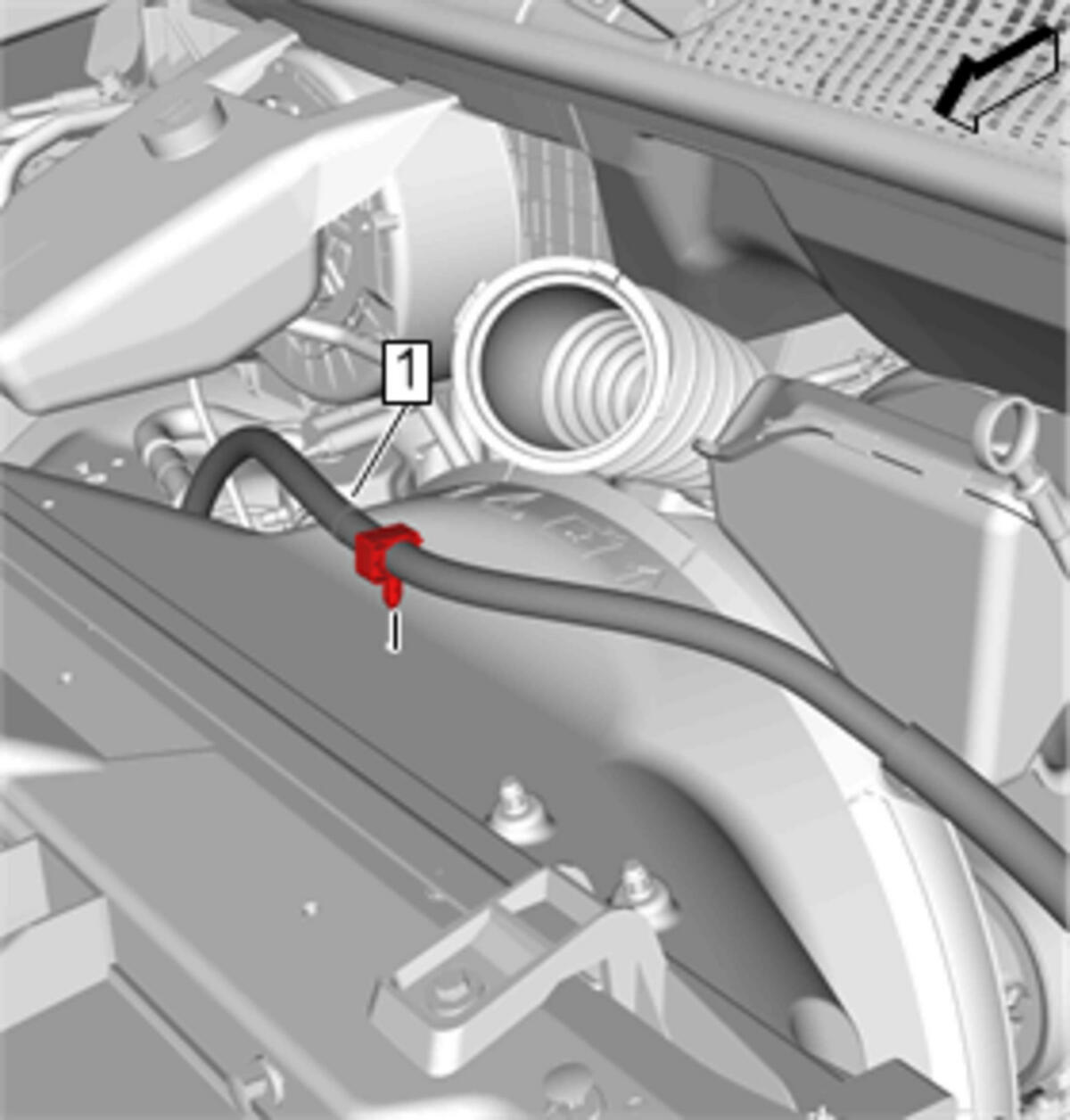

Air Conditioning Condenser Hose (1) @ Engine Coolant Fan Upper Shroud - Remove
- Disconnect the electrical connector.
Front Wheelhouse Splash Shield-Right Side (3) - Remove - Wheelhouse Splash Shield Replacement (Right Side)
Air Conditioning Condenser Hose Bolt (1) @ Air Conditioning Compressor - Remove
- Air Conditioning Condenser Hose (2) @ Air Conditioning Compressor - Remove
- Remove and DISCARD the sealing washer. (3) Air Conditioning System Seal Replacement
- Remove the air conditioning condenser hose (2) from the vehicle.
