Air Conditioning Compressor Low Pressure Cut Off Switch Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect all electrical connectors. |
|

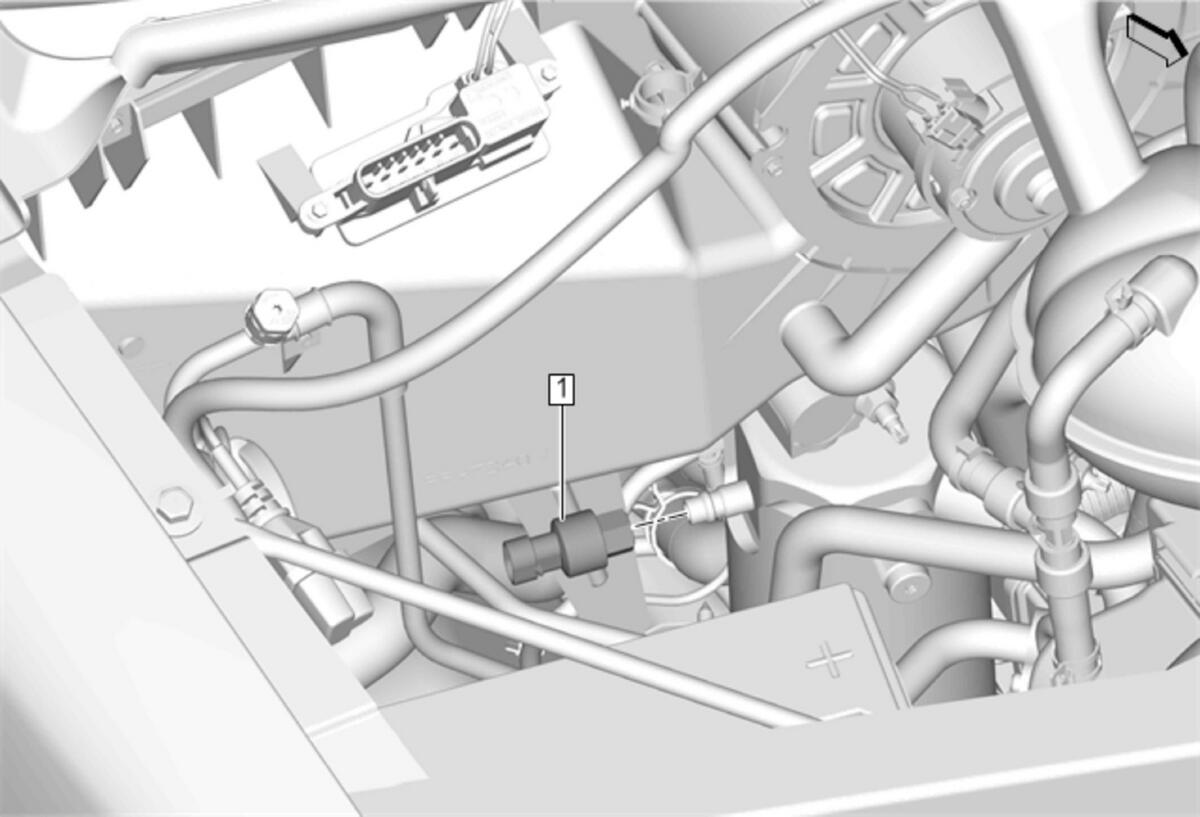

| 1 | Air Conditioning Compressor Low Pressure Cut Off Switch
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 4 N.m (35 lb in) Procedure Remove and DISCARD the O-ring seal. Air Conditioning O-Ring Seal Replacement |
