Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

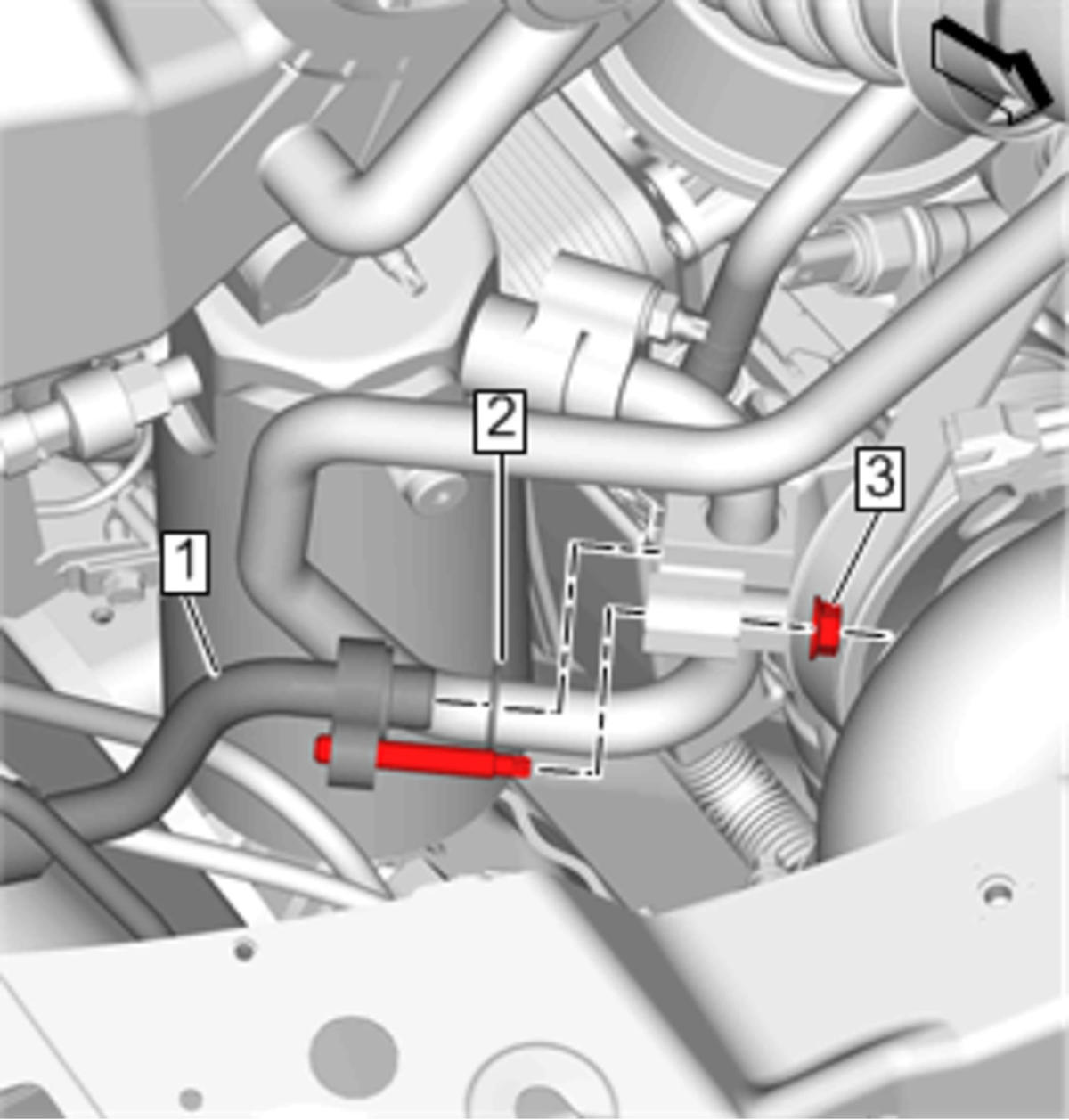

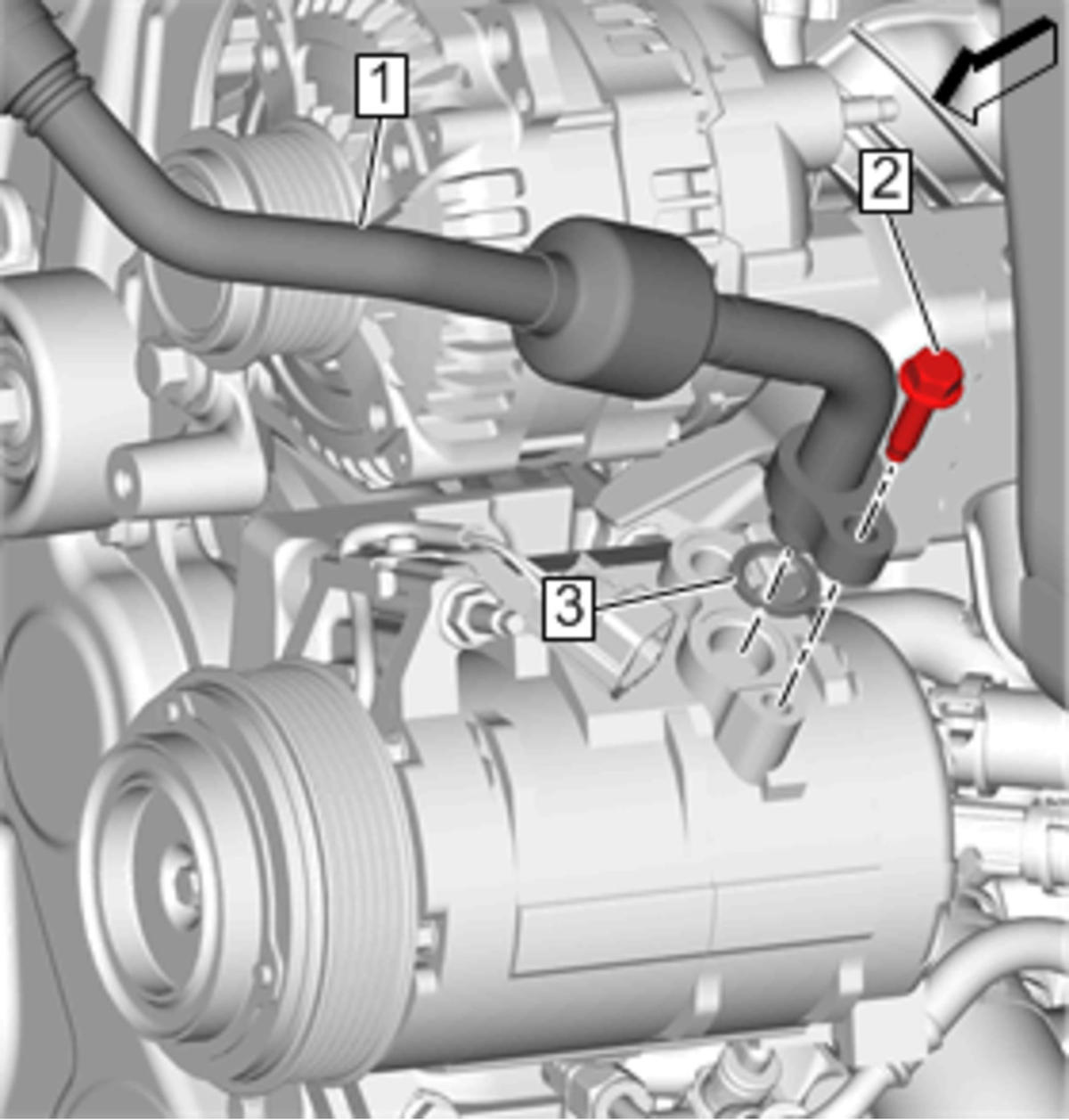

Install the air conditioning compressor hose (1) to the vehicle.
- Install a NEW sealing washer. (3) Air Conditioning System Seal Replacement
- Air Conditioning Compressor Hose (1) @ Air Conditioning Compressor - Install
- Air Conditioning Compressor Hose Bolt (2) @ Air Conditioning Compressor - Install and tighten 22 N.m (16 lb ft)

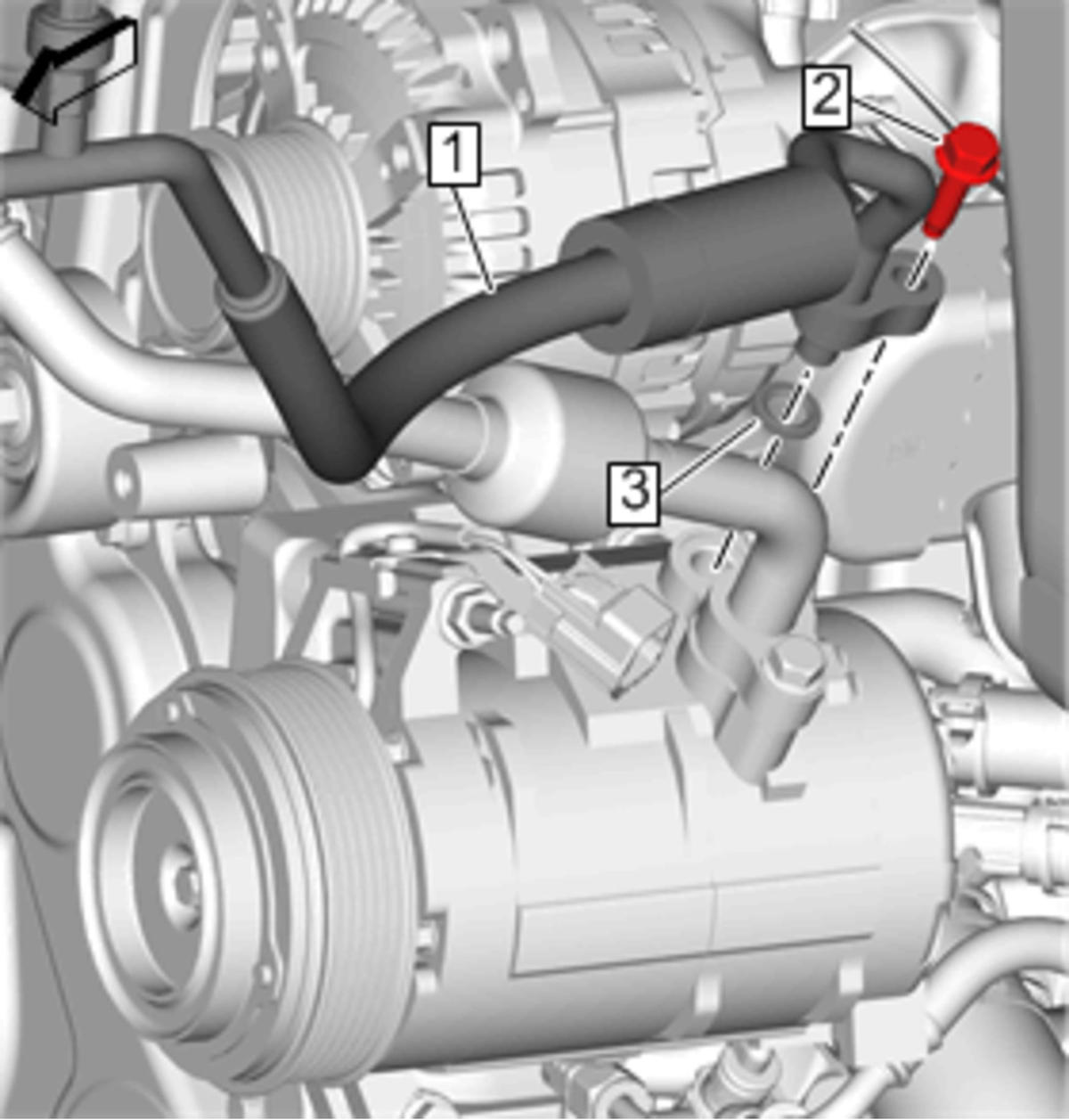

Air Conditioning Compressor and Condenser Hose (1) @ Air Conditioning Compressor - Install - Air Conditioning Compressor and Condenser Hose Replacement (LWN) , or Air Conditioning Compressor and Condenser Hose Replacement (L96, LC8)
Install a NEW sealing washer. (3) Air Conditioning System Seal Replacement

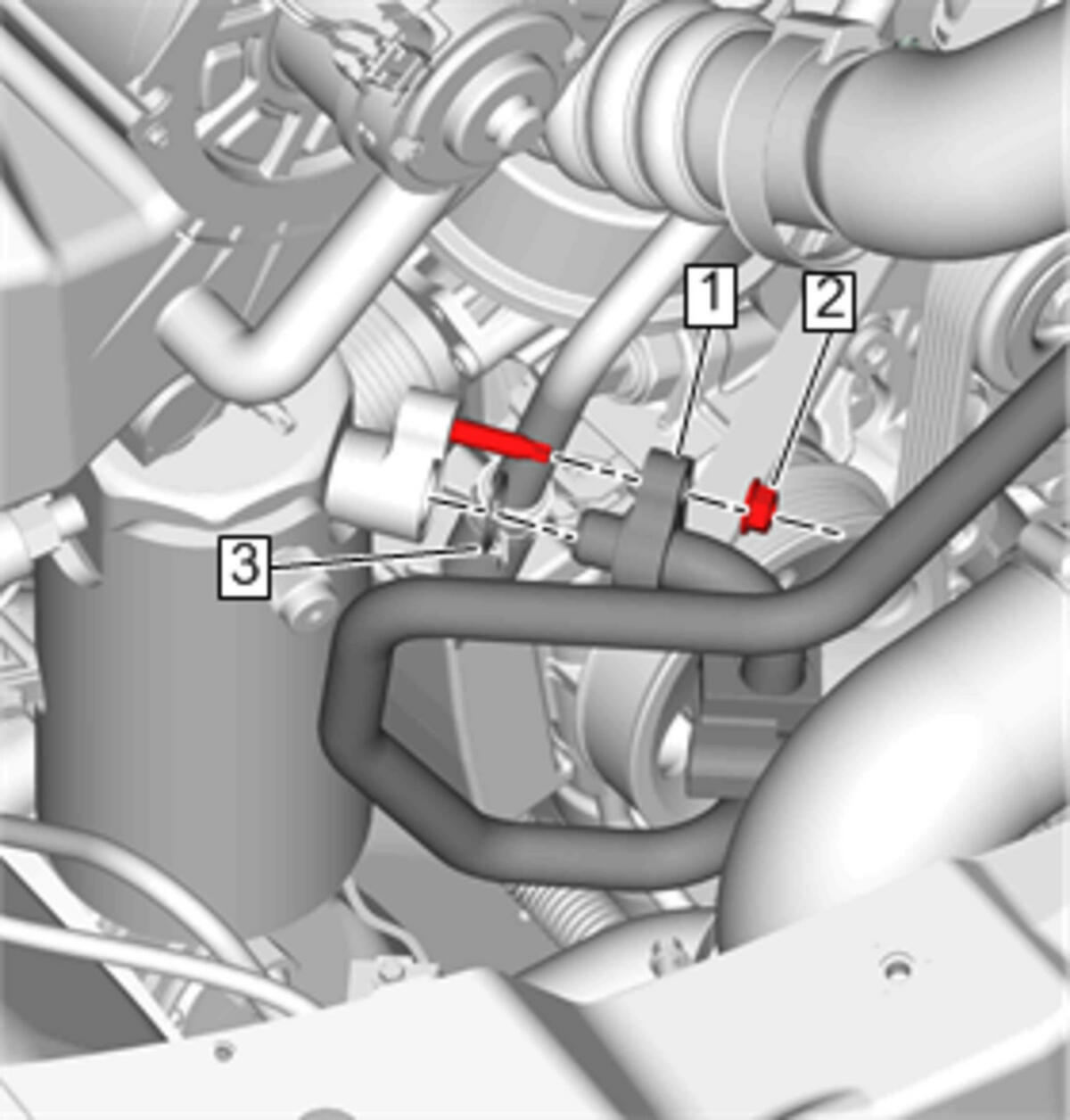

- Air Conditioning Compressor Hose (1) @ Air Conditioning Accumulator - Install
- Air Conditioning Compressor Hose Nut (2) @ Air Conditioning Accumulator - Install and tighten 22 N.m (16 lb ft)
Auxiliary Air Conditioning Evaporator Front Tube (1) @ Air Conditioning Compressor Hose - Install - Auxiliary Air Conditioning Evaporator Front Tube Replacement (Front)
- Charge Air Cooler Inlet Air Hose - Install - Charge Air Cooler Inlet Air Hose Replacement
- Charge Air Cooler Outlet Air Hose - Install - Charge Air Cooler Outlet Air Hose Replacement
- Recharge the refrigerant. Refrigerant Recovery and Recharging
- Inspect for refrigerant leaks.
CAUTION:
Refer to Fastener Caution .
CAUTION:
Refer to Fastener Caution .
