Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refrigerant Recovery and Recharging
  2. GM4848749Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Air Conditioning Evaporator Front Tube (1) @ Air Conditioning Compressor Hose - Remove - Auxiliary Air Conditioning Evaporator Front Tube Replacement (Front)

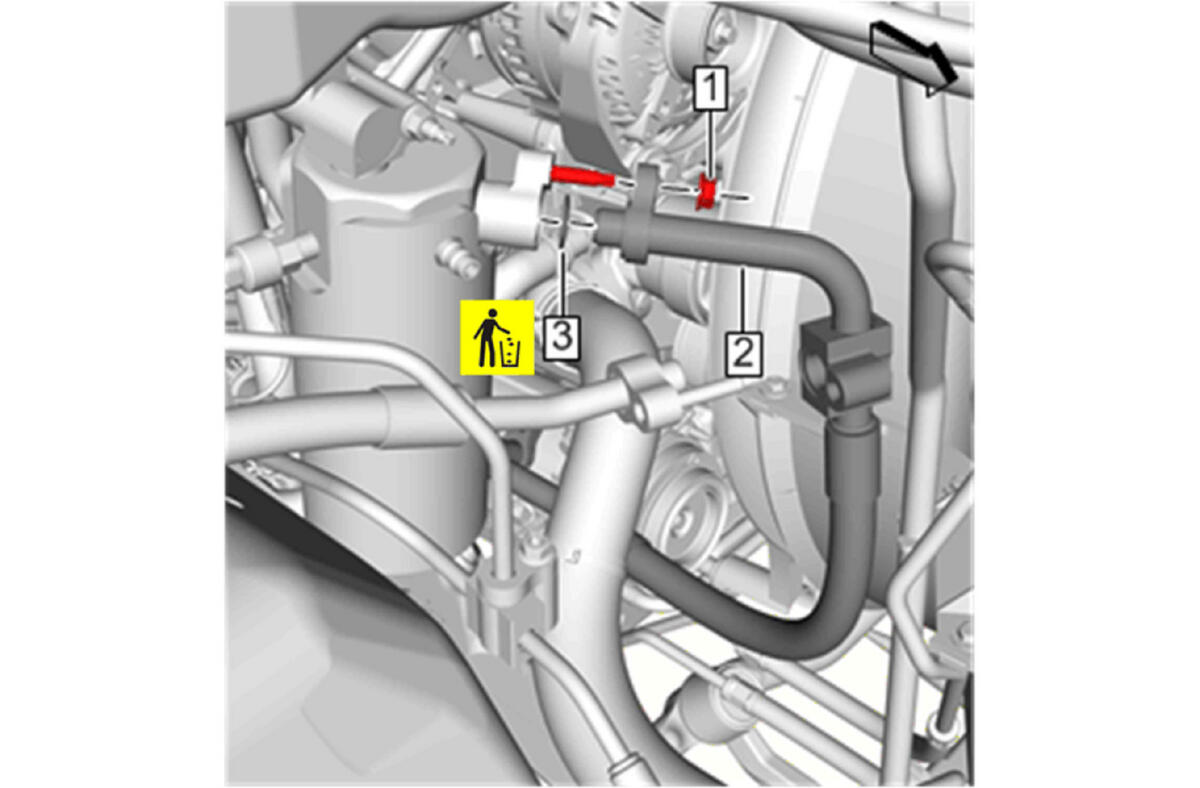

  3. GM4848752Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor Hose Nut (1) @ Air Conditioning Accumulator - Remove

  4. Air Conditioning Compressor Hose (2) @ Air Conditioning Accumulator - Remove
  5. Remove and DISCARD the sealing washer. (3) Air Conditioning System Seal Replacement
  6. Front Wheelhouse Splash Shield-Right Side - Remove - Wheelhouse Splash Shield Replacement (Right Side)
  7. GM4848755Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor Hose Bolt (1) @ Air Conditioning Compressor - Remove

  8. Air Conditioning Compressor Hose (2) @ Air Conditioning Compressor - Remove
  9. Remove and DISCARD the sealing washer. (3) Air Conditioning System Seal Replacement
  10. Remove the air conditioning compressor hose (2) from the vehicle.
