Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant. Refrigerant Recovery and Recharging
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Splash Shield-Right Side (3) - Remove - Wheelhouse Splash Shield Replacement (Right Side)
Air Conditioning Compressor Belt @ Air Conditioning Compressor - Remove - Air Conditioning Compressor Belt Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Hose (2) @ Air Conditioning Compressor - Remove - Air Conditioning Condenser Hose Replacement (LV1)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor Hose (2) @ Air Conditioning Compressor - Remove - Air Conditioning Compressor Hose Replacement (LWN) , or Air Conditioning Compressor Hose Replacement (L96, LC8, LV1)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor (2) - Remove - Air Conditioning Compressor Replacement (LWN) , or Air Conditioning Compressor Replacement (LV1) , or Air Conditioning Compressor Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Rear Shroud Bolt (1) - Remove - Engine Coolant Fan Rear Shroud Replacement (LWN) , or Engine Coolant Fan Rear Shroud Replacement (LV1)
Courtesy of GENERAL MOTORS COMPANY

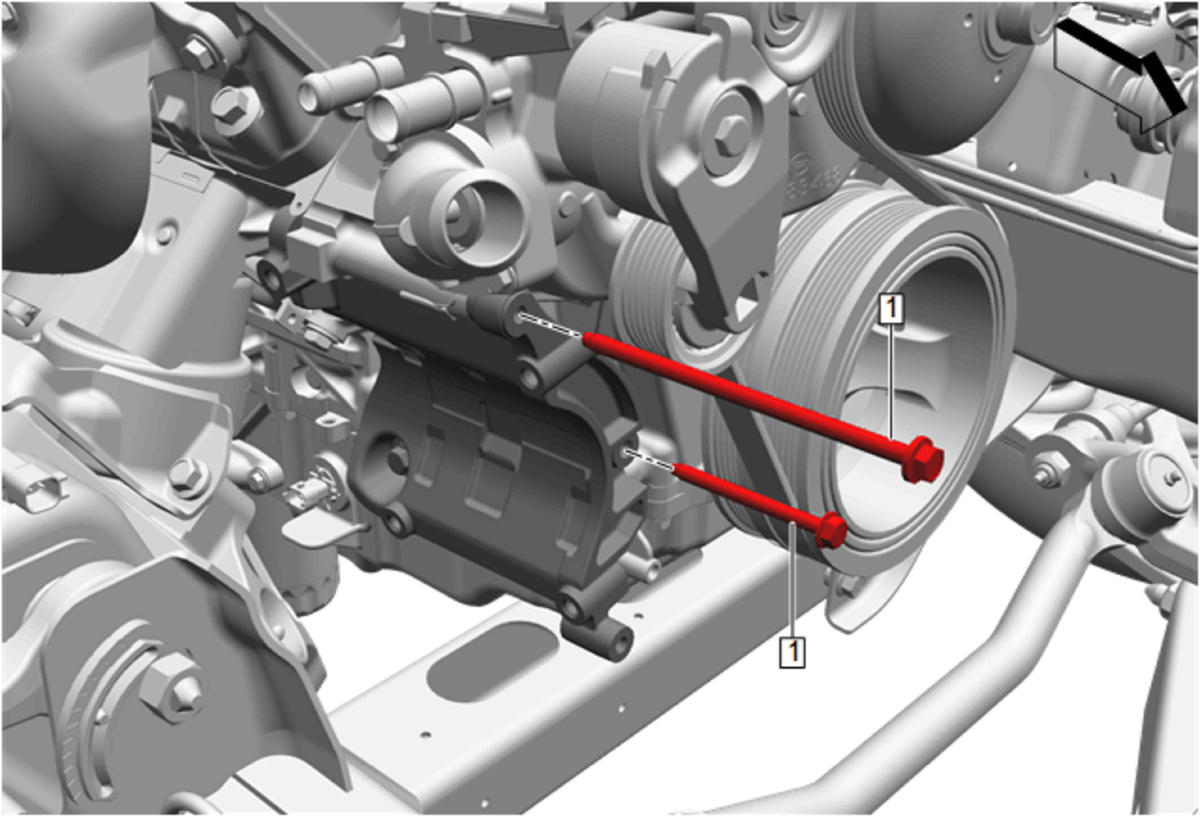

Air Conditioning Compressor Bracket Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

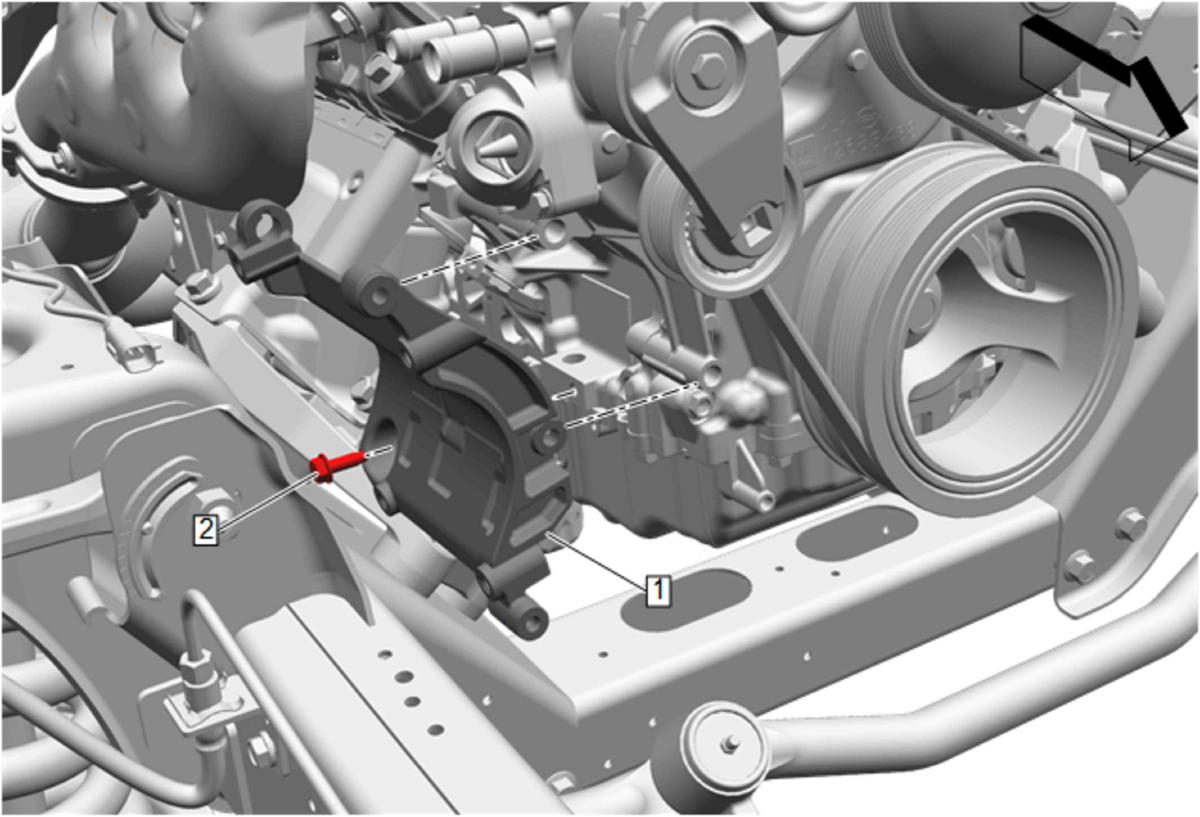

Air Conditioning Compressor Bracket Bolt (2) - Remove
Remove the air conditioning compressor bracket (1) from the vehicle.
