Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4621877Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor Hose (1) @ Air Conditioning Accumulator - Remove - Air Conditioning Compressor Hose Replacement (LWN) , or Air Conditioning Compressor Hose Replacement (L96, LC8, LV1)

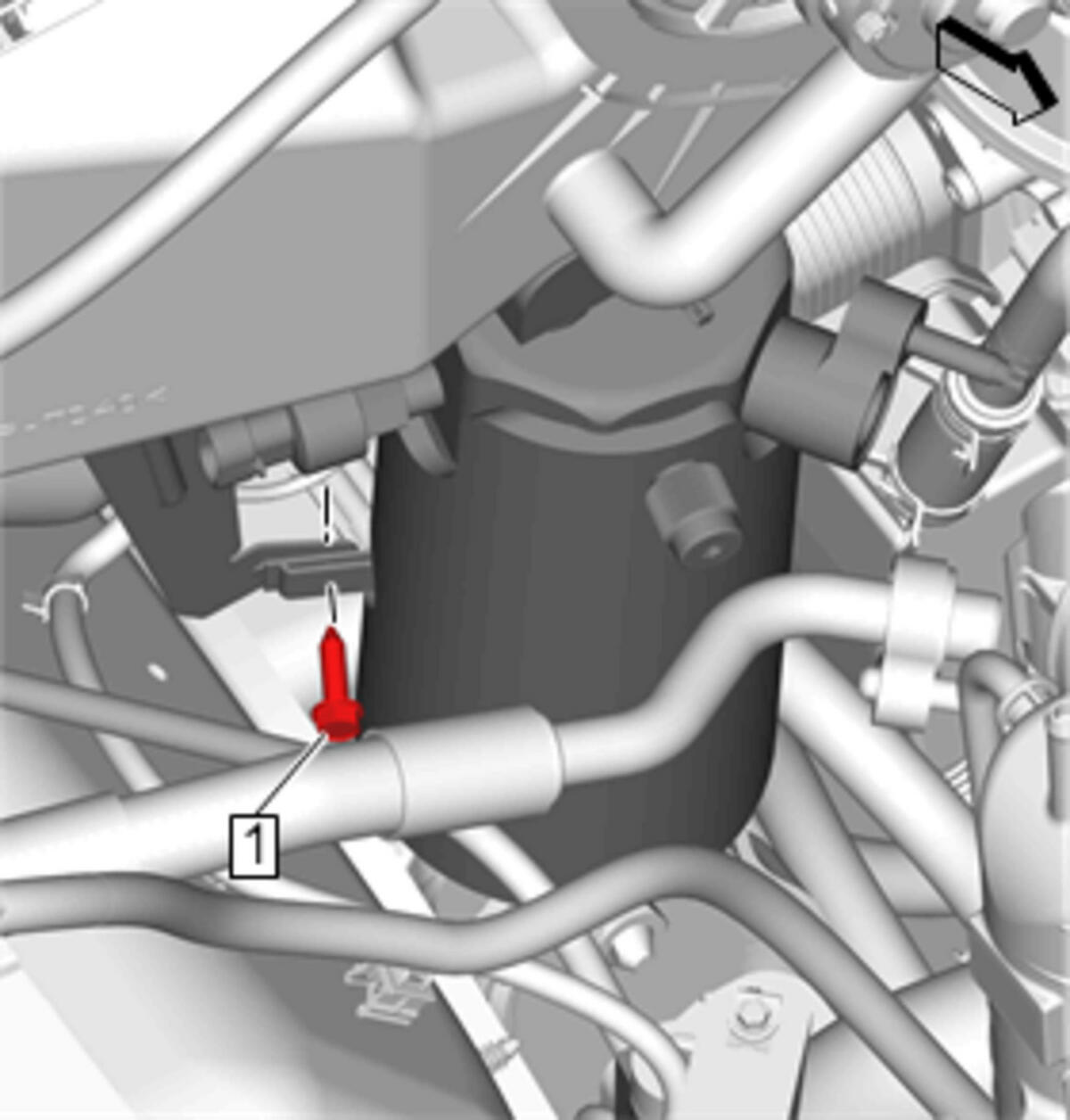

  2. GM4620186Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Accumulator Bolt (1) @ Air Conditioning Accumulator Bracket - Remove

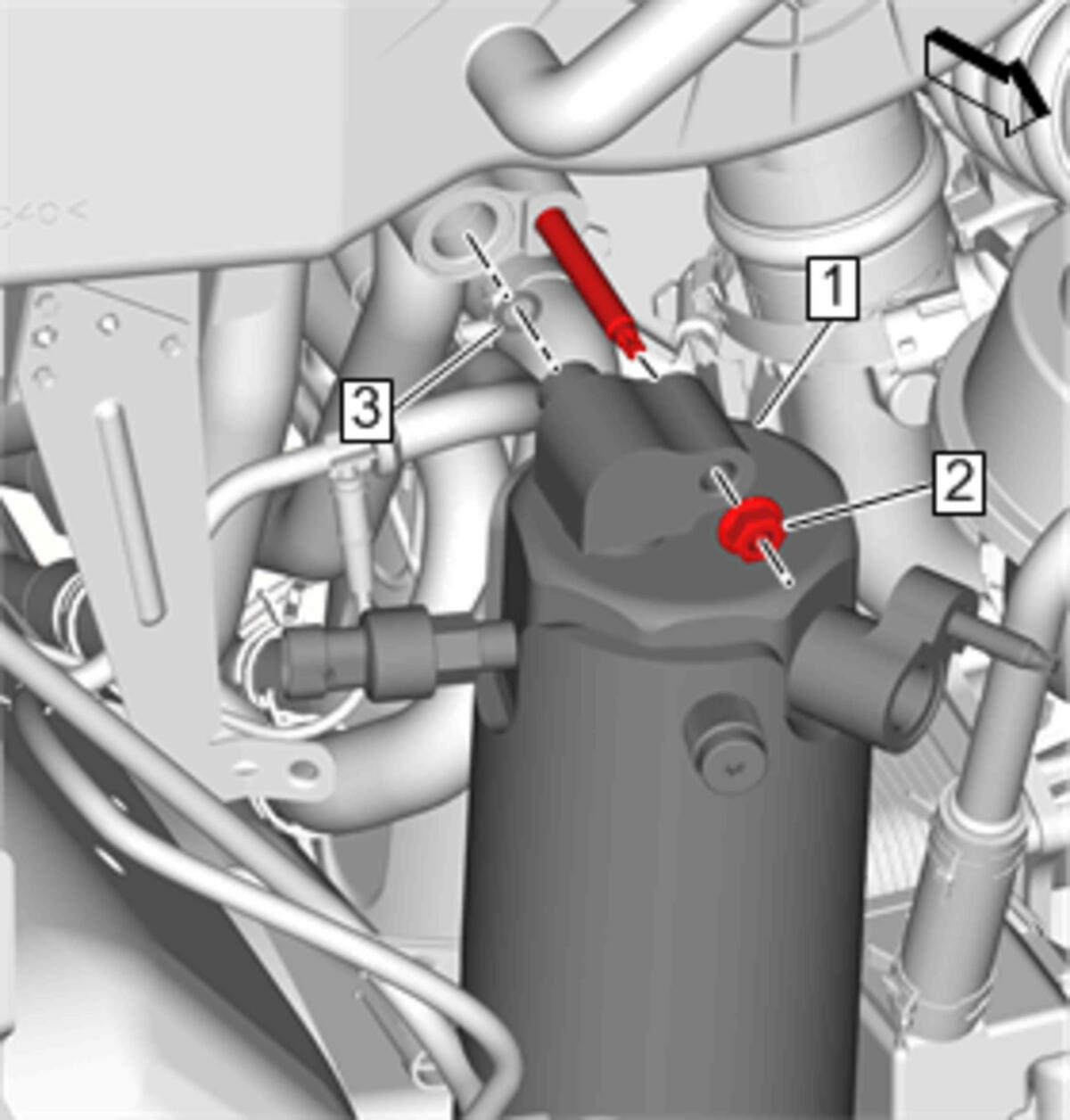

  3. GM4620187Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Accumulator Nut (2) @ Air Conditioning Accumulator - Remove

  4. Air Conditioning Accumulator (1) @ Air Conditioning Evaporator - Remove
  5. Remove and DISCARD the sealing washer. (3) - Air Conditioning System Seal Replacement
  6. Disconnect the electrical connector.
  7. Remove the air conditioning accumulator (1) from the vehicle.
  8. Transfer components as necessary.
  9. GM4592465Courtesy of GENERAL MOTORS COMPANY

    Accumulator Bracket Bolt (1) @ Air Conditioning Evaporator Case - Remove [3x]

  10. Accumulator Bracket (2) @ Air Conditioning Evaporator Case - Remove
