M103 Turbocharger Vane Position Actuator
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

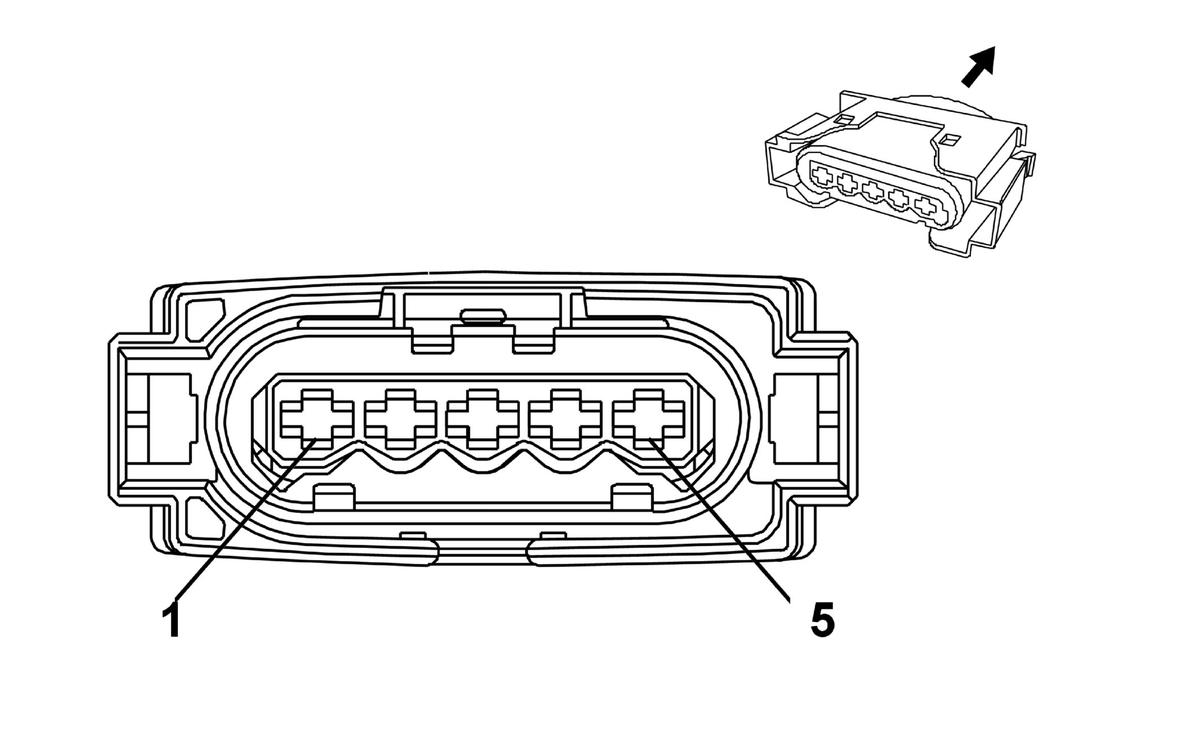

Connector Part Information
- Harness Type: Engine
- OEM Connector: 10890285
- Service Connector: 19368141
- Description: 5-Way F 2.8 SLK Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/D-BU |
5930 |
Variable Nozzle Turbo Solenoid High Signal |
I |
- |
| 2 |
0.5 |
WH/BK |
5931 |
Variable Nozzle Turbo Solenoid Low Signal |
I |
- |
| 3 |
0.5 |
BK/BN |
5929 |
Variable Nozzle Turbo Position Sensor Low Reference |
I |
- |
| 4 |
0.5 |
VT/YE |
5947 |
Variable Nozzle Turbo Position Sensor Signal |
I |
- |
| 5 |
0.5 |
GY/RD |
5928 |
Variable Nozzle Turbo Position Sensor 5V Reference |
I |
- |
