Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. If using NEW spark plugs, do NOT attempt to check the spark plug gap. The plugs come pre-gapped. Ignition System Specifications
  2. If reusing the spark plugs, inspect for wear or damage. Spark Plug Inspection

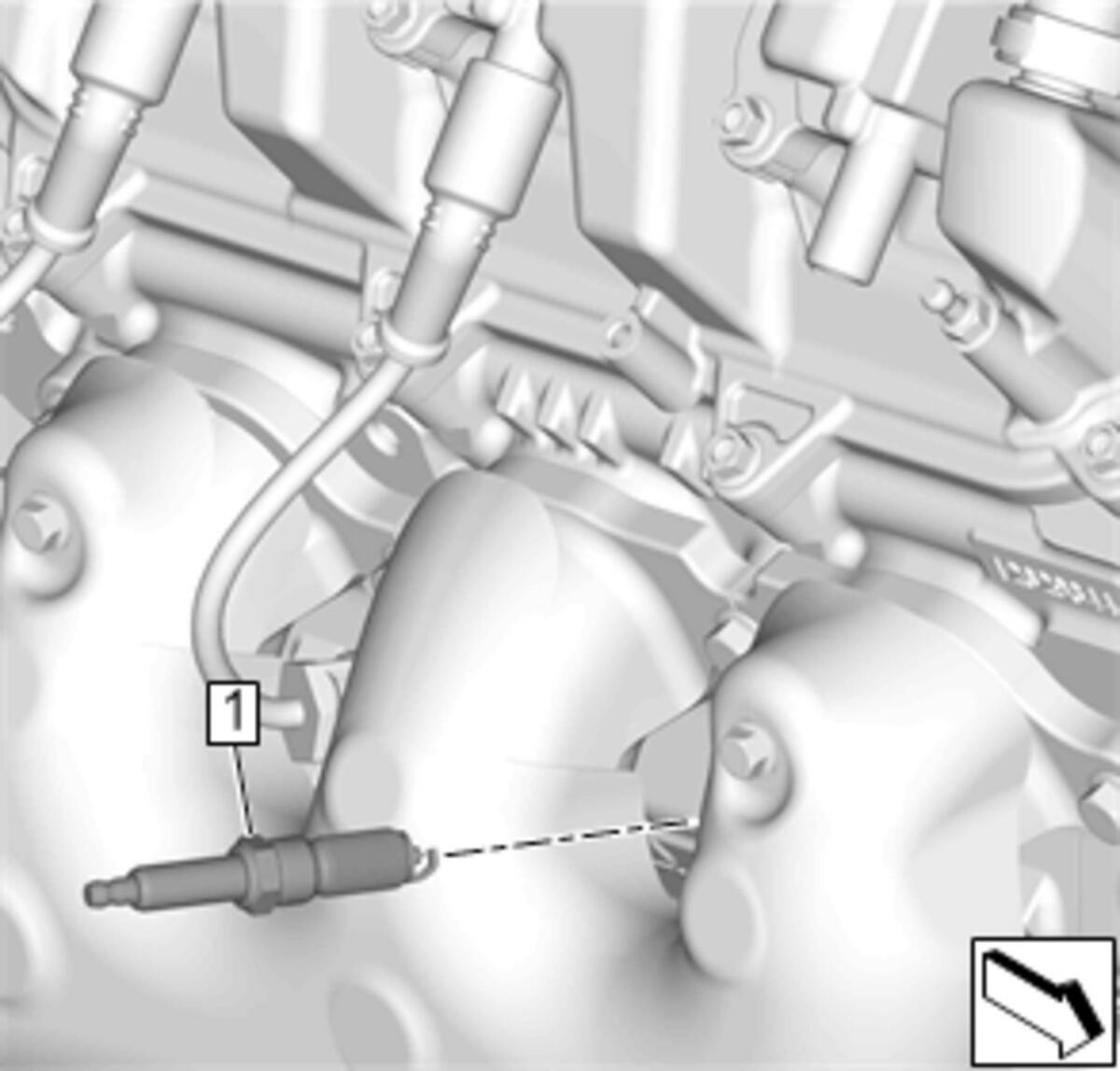

  3. GM4852330Courtesy of GENERAL MOTORS COMPANY

    Install the spark plug (1) and tighten by hand.

    4. CAUTION:

    Refer to Component Fastener Tightening Caution .

  4. Tighten the spark plug (1) to 20 N.m (15 lb ft).
  5. Connect the spark plug wire to the spark plug. Spark Plug Wire Replacement
  6. Engine Cover - Install - Engine Cover Replacement
  7. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) , or Battery Negative Cable Disconnection and Connection (Dual Battery)
