Connect Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- WARNING:
Refer to Fuel Pipe Fitting Warning .
Apply a few drops of clean engine oil to the male connection end.
Push both sides of the quick-connect fitting together in order to cause the retaining feature to snap into place.
Once installed, pull on both sides of the connection in order to make sure the connection is secure.

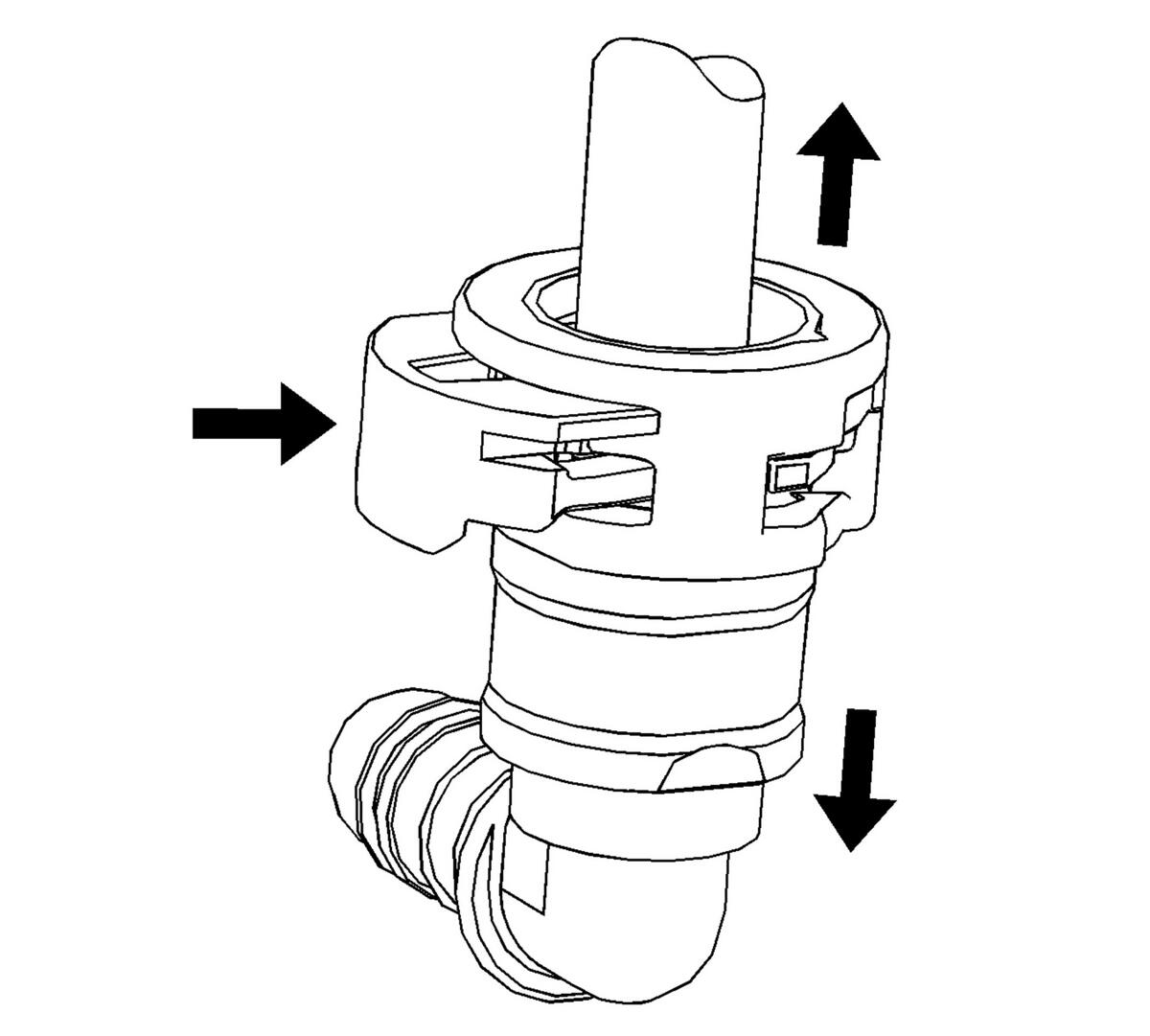

This step applies to the Ray Manufactured connector ONLY. Press down on the connector's clip and ensure it is flush with the body of the connector. Once installed, pull both sides of the connection to ensure it is secure.
