Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

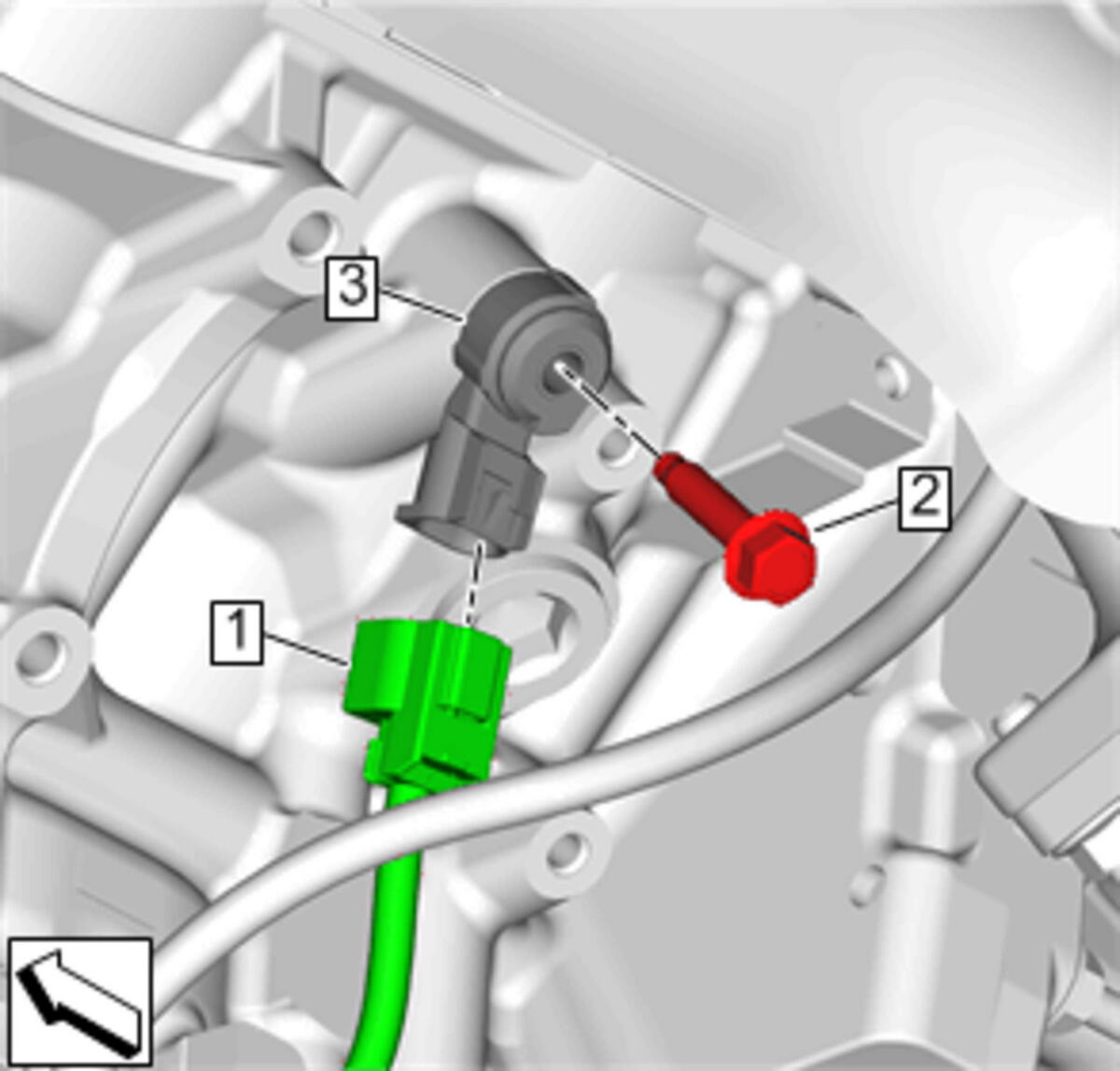

Position the knock sensor (3).
- Install the knock sensor bolt (2) and tighten to 25 N.m (18 lb ft).
- Connect the electrical connector (1).

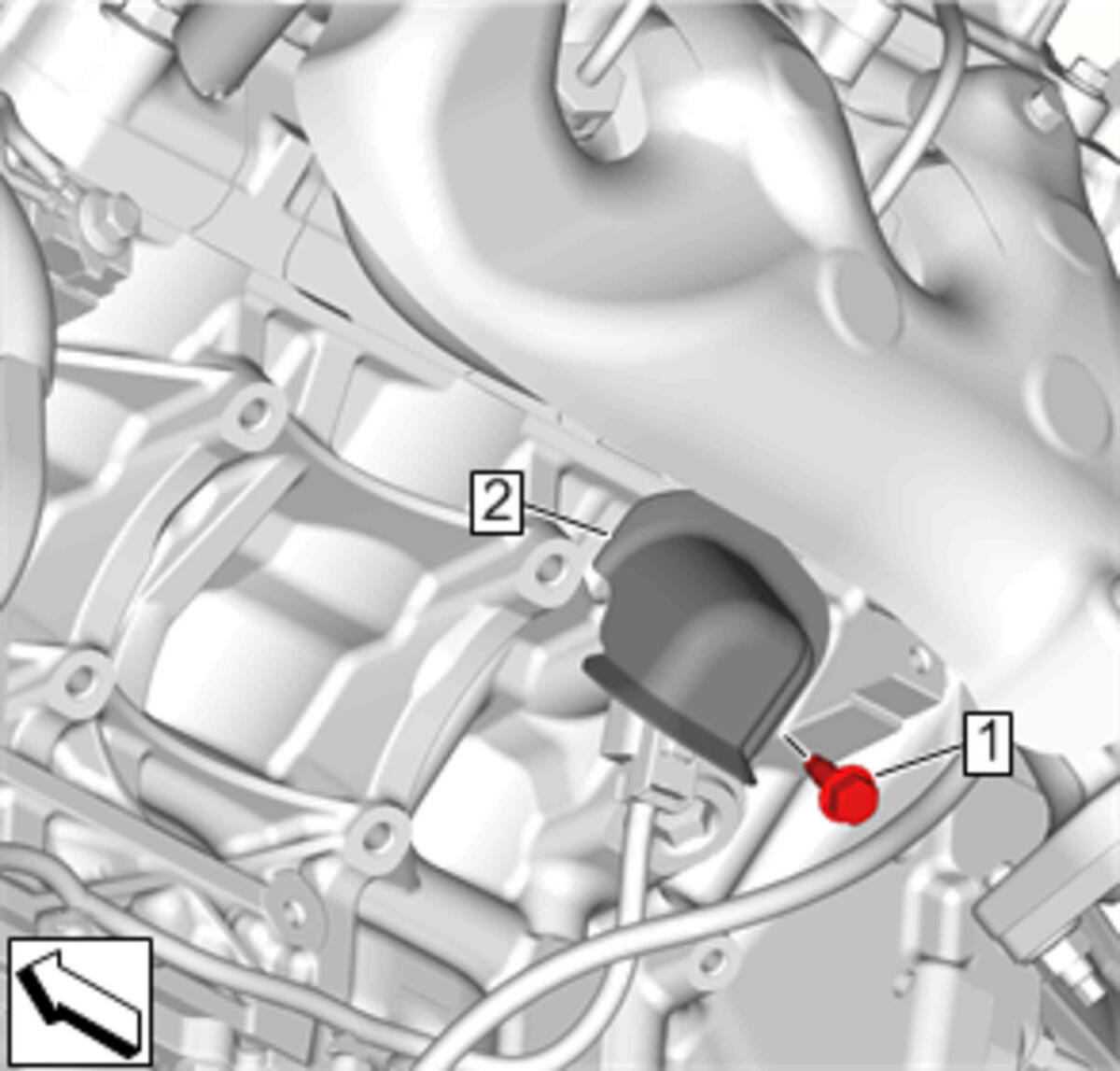

Position the knock sensor shield (2).
- Install the knock sensor shield bolt (1) and tighten to 25 N.m (18 lb ft).
- Lower the vehicle.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) , or Battery Negative Cable Disconnection and Connection (Dual Battery)
CAUTION:
Refer to Fastener Caution .
