Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Place a suitable adjustable jack under the fuel tank.
- Use a suitable strap to strap fuel tank to jack.

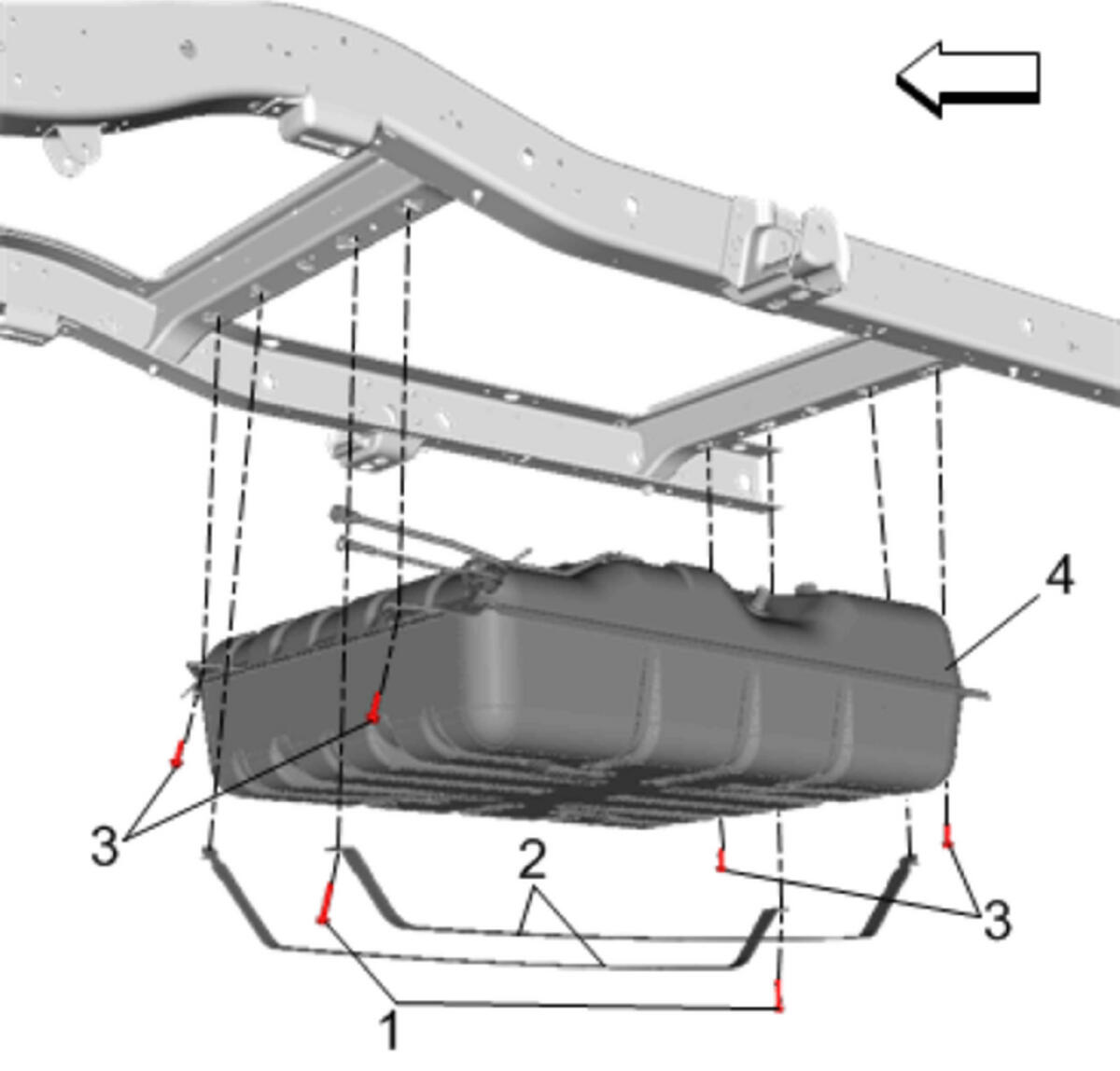

- Fuel Tank(4) - Install
- Fuel Tank Bolt(3) - Install and tighten[4x]52N.m (38 lb ft)
- Fuel Tank Strap(2) - Install[2x]
- Fuel Tank Strap Bolt(1) - Install and tighten[2x]30N.m (22 lb ft)
- Remove strap holding fuel tank to jack.

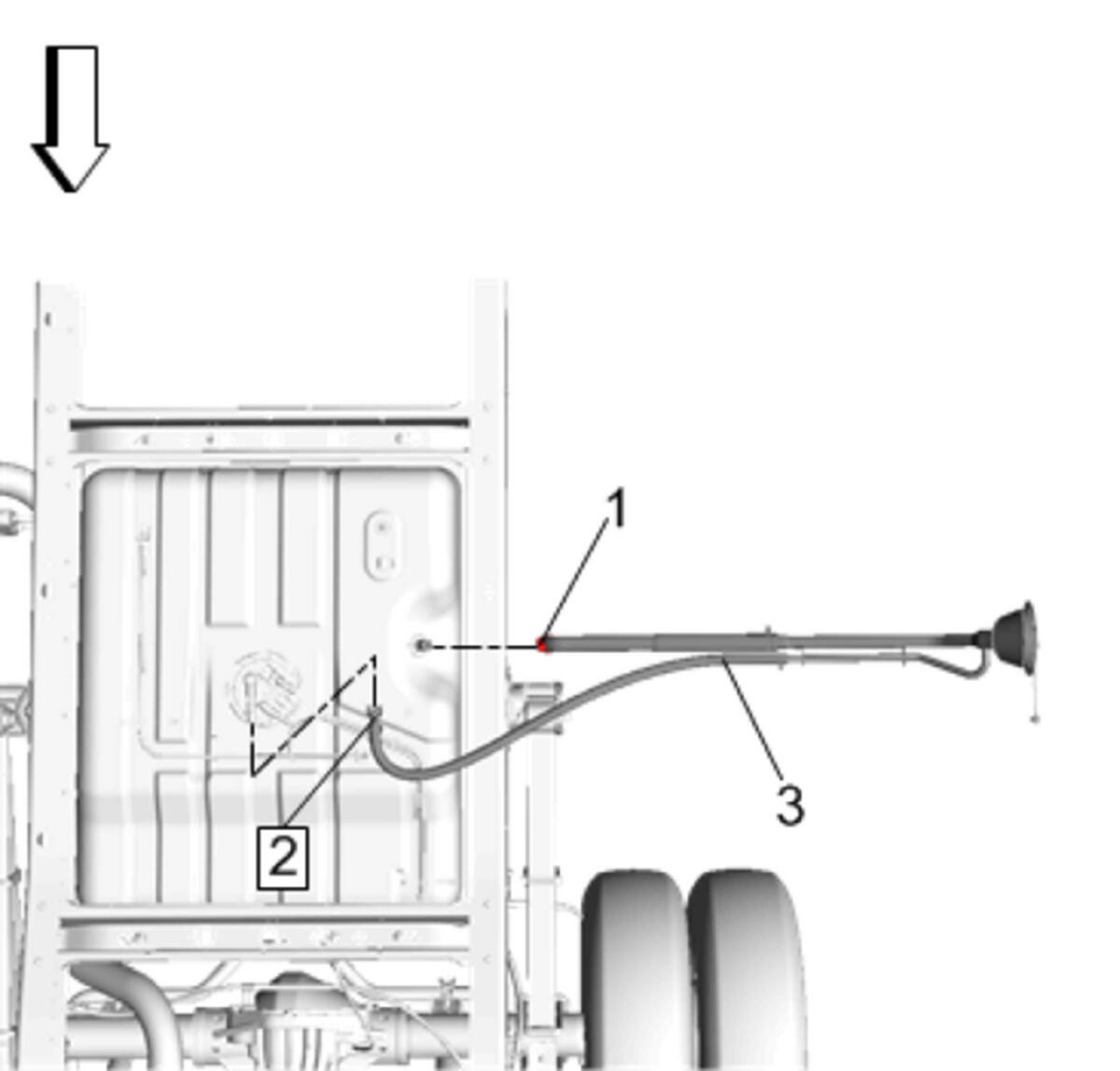

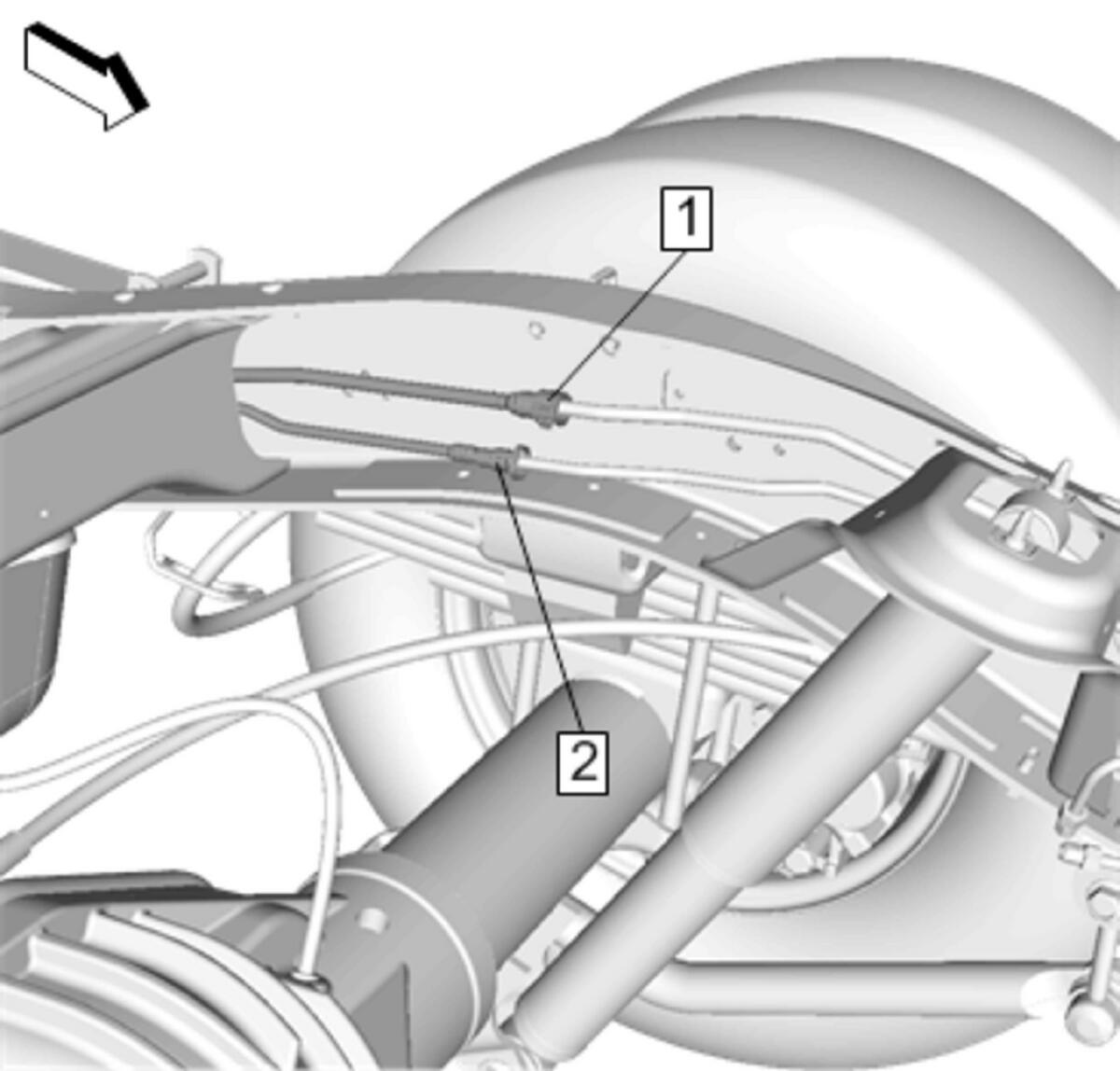

Evaporative Emission Hose(2) - Connect - Plastic Collar Quick Connect Fitting Service
- Fuel Feed Pipe(1) - Connect - Plastic Collar Quick Connect Fitting Service
- Connect the fuel tank fuel pump module connector.
Fuel Tank Filler Hose(3) - Install
- Evaporative Emission Hose(2) - Connect - Plastic Collar Quick Connect Fitting Service
- Fuel Tank Filler Hose Clamp(1) - Install and tighten4N.m (35 lb in)
- Refill the fuel tank.
- Inspect for fuel leaks.
CAUTION:
Refer to Fastener Caution .
