Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

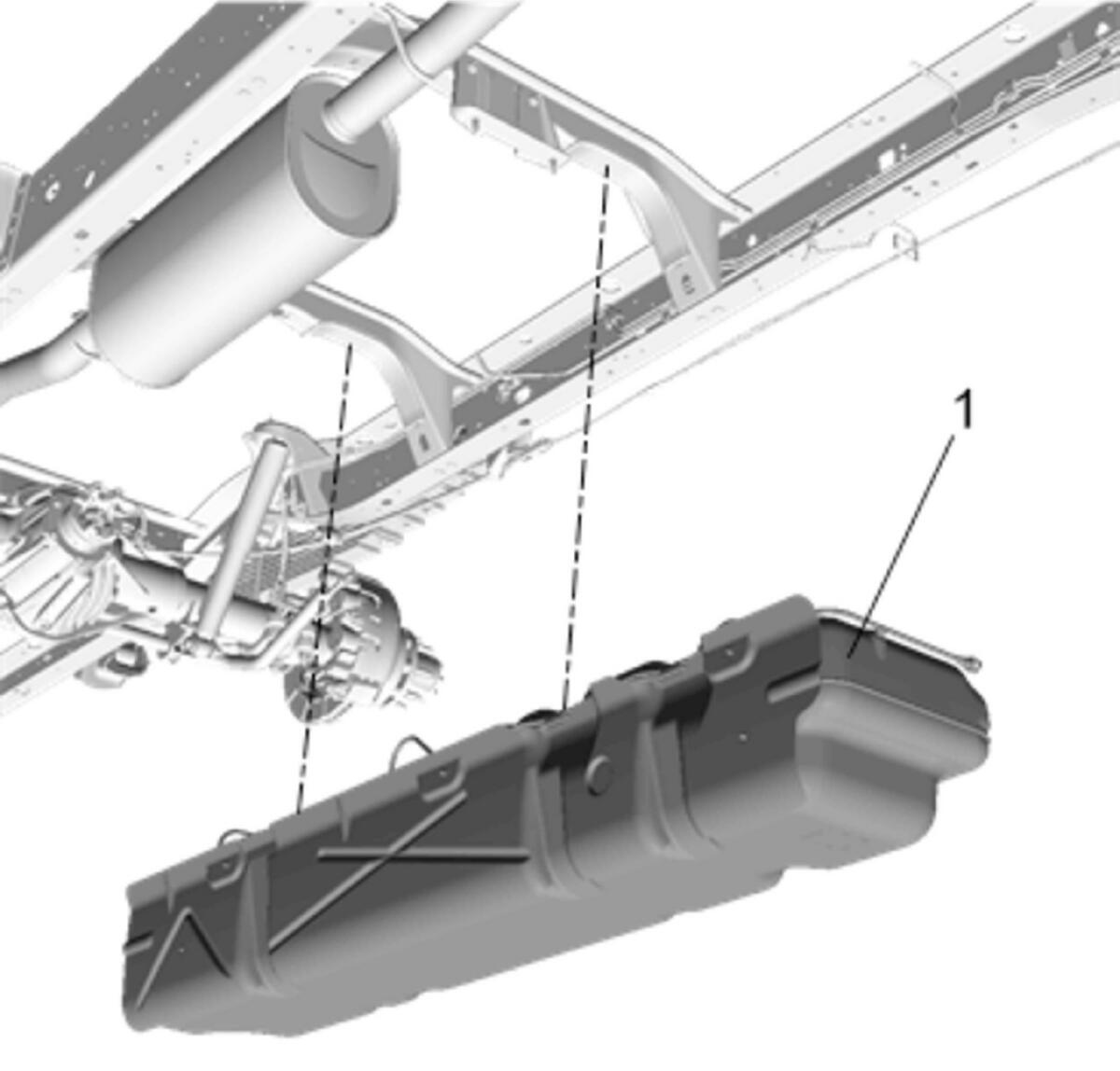

  1. GM4848899Courtesy of GENERAL MOTORS COMPANY

    Place a suitable adjustable jack under the fuel tank.

  2. Use a suitable strap to strap fuel tank to jack.
  3. Fuel Tank(1) - Install

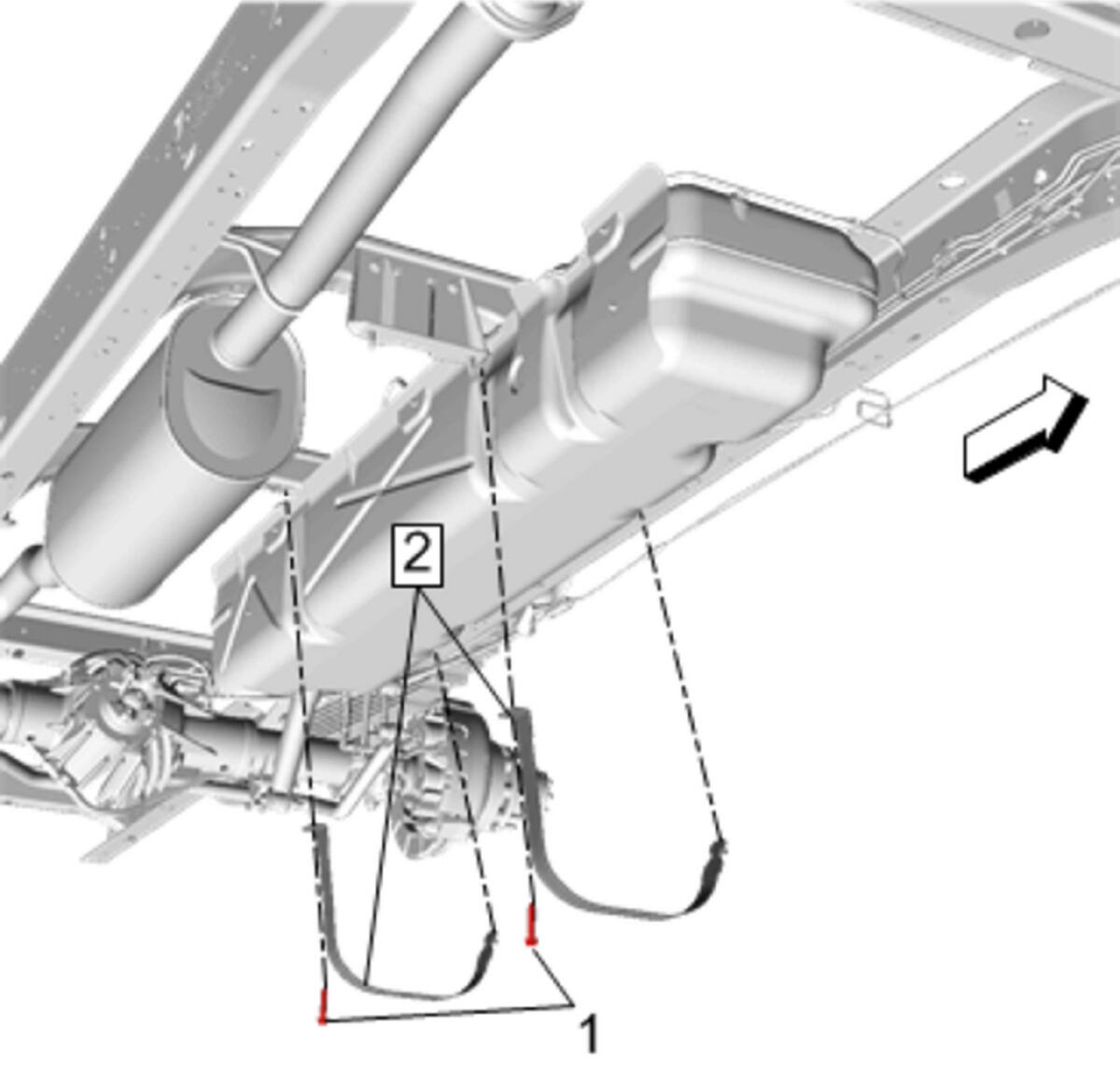

  4. GM4848892Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Strap(2) - Install[2x]

    5. CAUTION:

    Refer to Fastener Caution .

  5. Fuel Tank Strap Bolt(1) - Install and tighten[2x]30N.m (22 lb ft)
  6. Remove strap holding fuel tank to jack.
  7. Connect the fuel tank fuel pump module connector.

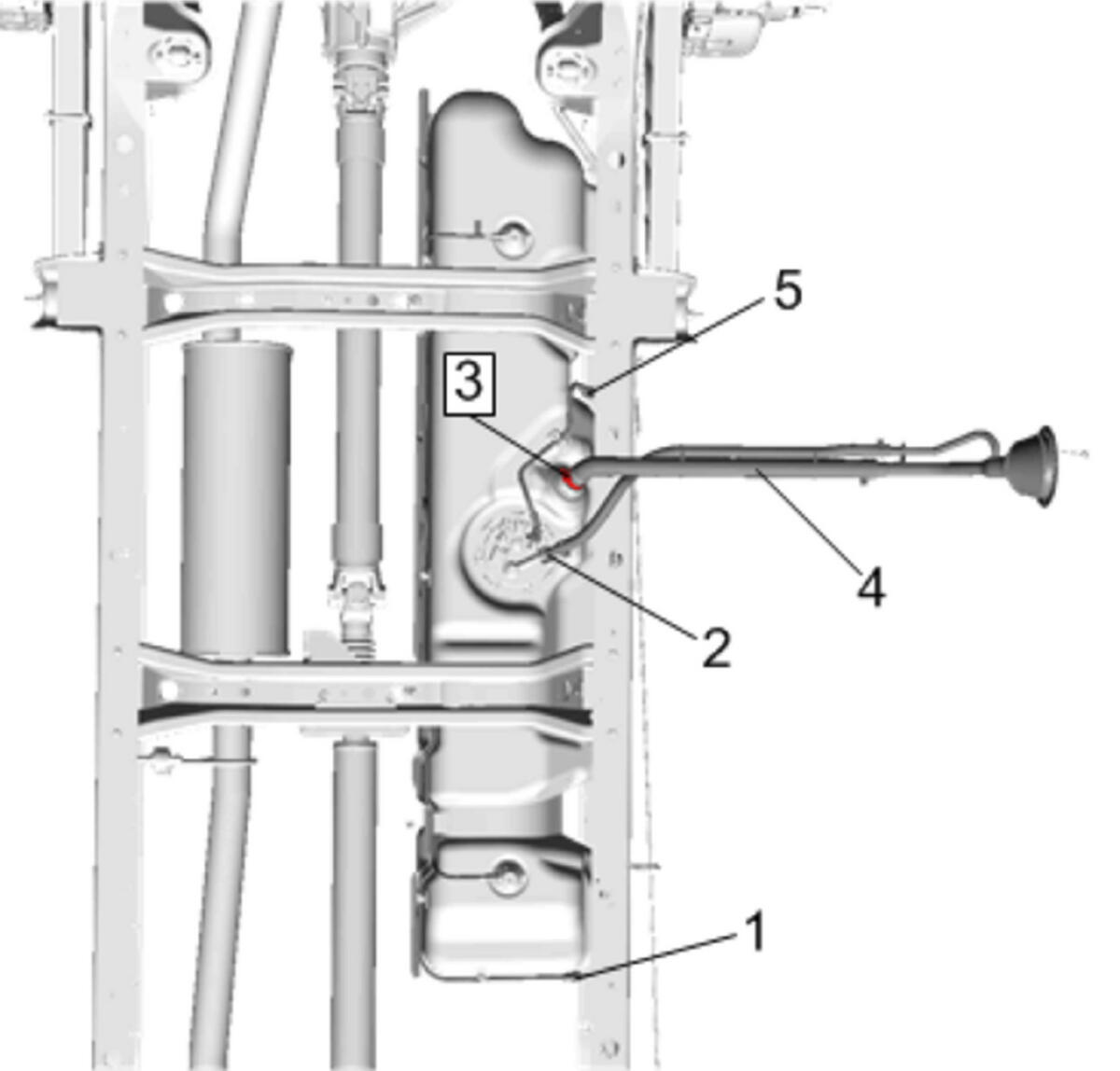

  8. GM4848897Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Rear Pipe(5) - Connect - Plastic Collar Quick Connect Fitting Service

  9. Fuel Tank Filler Hose(4) - Install
  10. Fuel Tank Filler Hose Clamp(3) - Install and tighten4N.m (35 lb in)
  11. Evaporative Emission Hose(2) - Connect - Plastic Collar Quick Connect Fitting Service
  12. Evaporative Emission Hose(1) - Connect - Plastic Collar Quick Connect Fitting Service
  13. Refill the fuel tank.
  14. Inspect for fuel leaks.
