Fuel Level Sensor Replacement (Chassis Cab Rear Tank)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

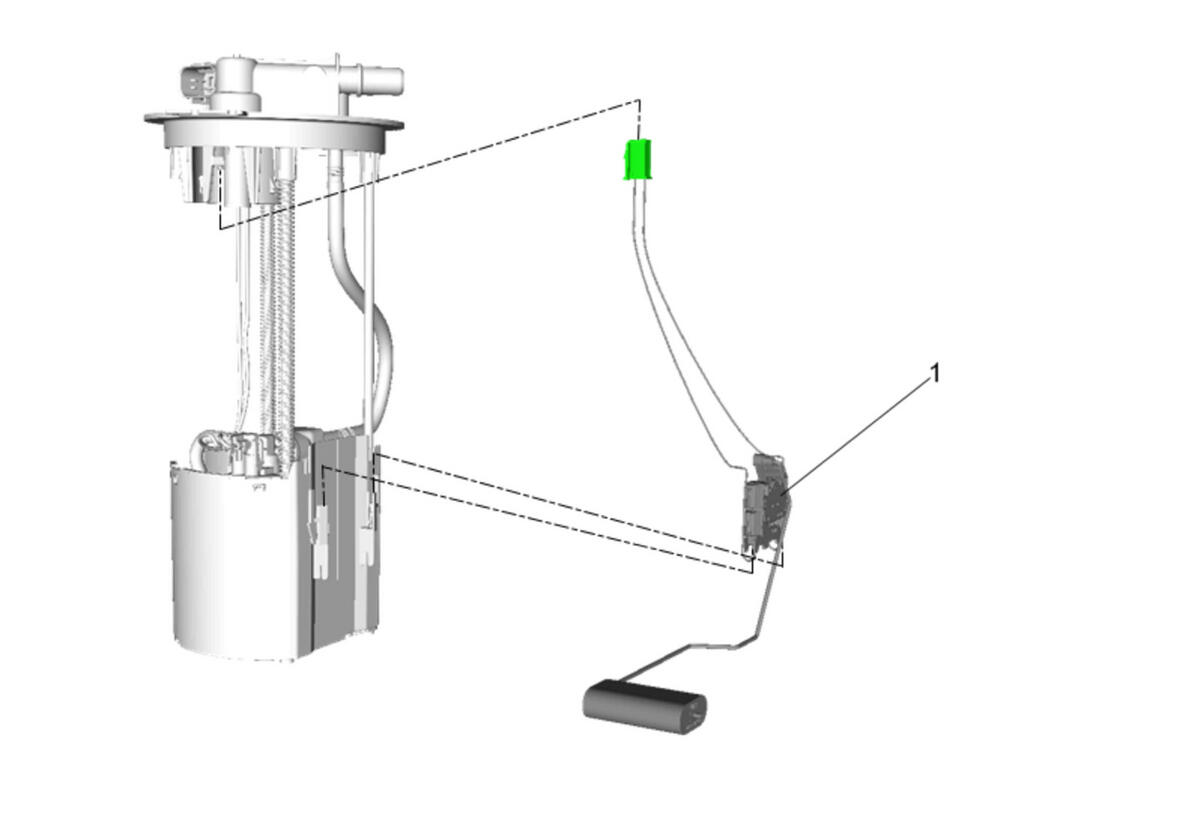

Callout	Component Name
Preliminary Procedure Fuel Tank Fuel Pump Module Replacement (Short/Long Wheel Base) , or Fuel Tank Fuel Pump Module Replacement (Chassis Cab Rear Tank) , or Fuel Tank Fuel Pump Module Replacement (Chassis Cab Front Tank)
1	Fuel Level Sensor Procedure Release the plastic retaining tabs. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Fuel Tank Fuel Pump Module Replacement (Short/Long Wheel Base) , or Fuel Tank Fuel Pump Module Replacement (Chassis Cab Rear Tank) , or Fuel Tank Fuel Pump Module Replacement (Chassis Cab Front Tank)

Fuel Level Sensor

Procedure

Release the plastic retaining tabs.
Disconnect the electrical connector.
