Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Relieve the fuel system pressure. Fuel Pressure Relief
- Engine Cover - Remove - Engine Cover Replacement
- Raise and support the vehicle. Lifting and Jacking the Vehicle .

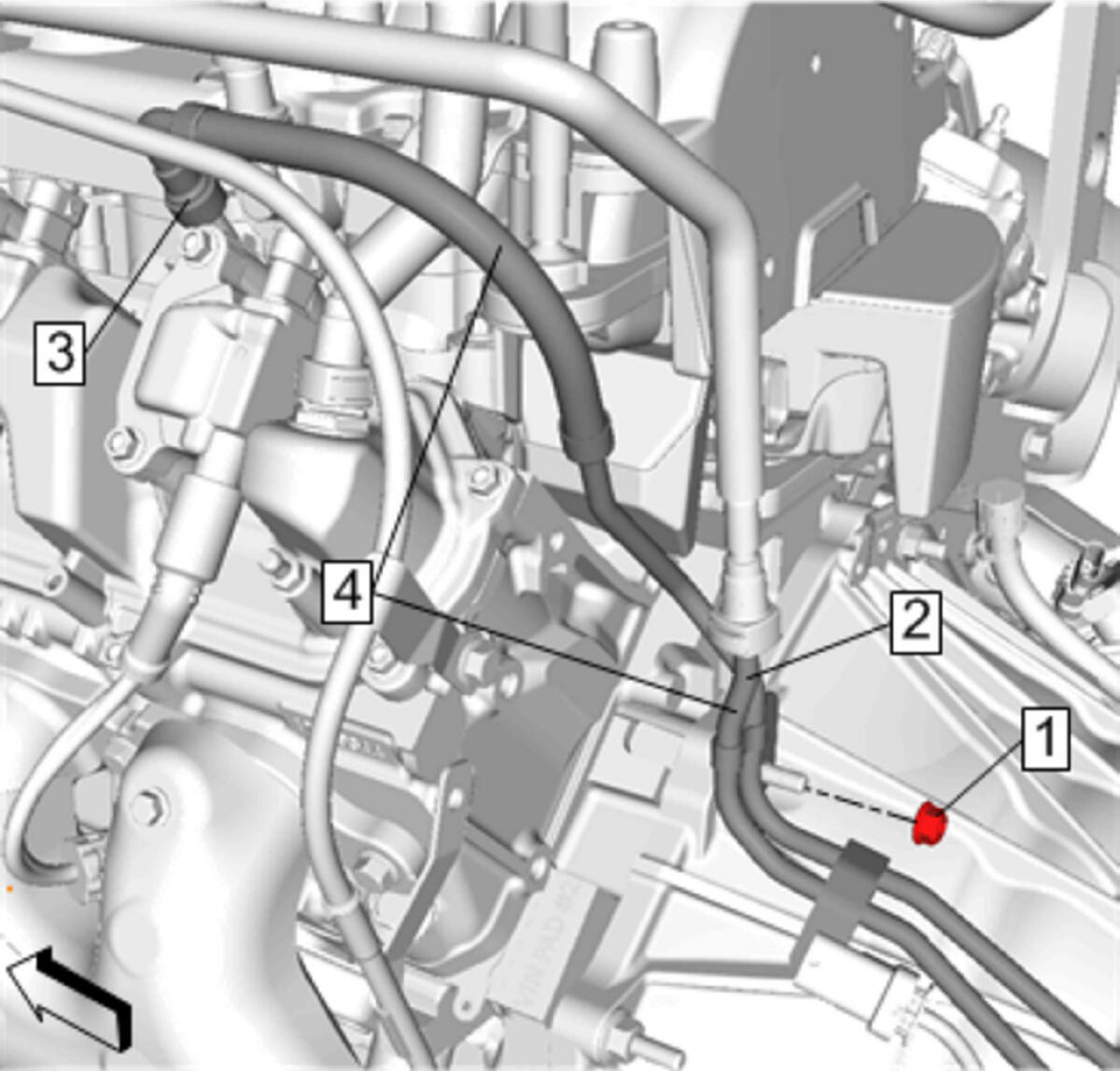

Fuel Feed and Evaporative Emission Front Pipe Retainer Bolt (1) - Remove
- Retainer(2) - Remove
- Fuel Feed Pipe(3) - Disconnect - Metal Collar Quick Connect Fitting Service
- Evaporative Emission Pipe(4) - Disconnect - Plastic Collar Quick Connect Fitting Service
Fuel Feed and Evaporative Emission Front Pipe Bolt (1) - Remove
- Retainer(2) - Remove
- Disconnect the electrical connector.

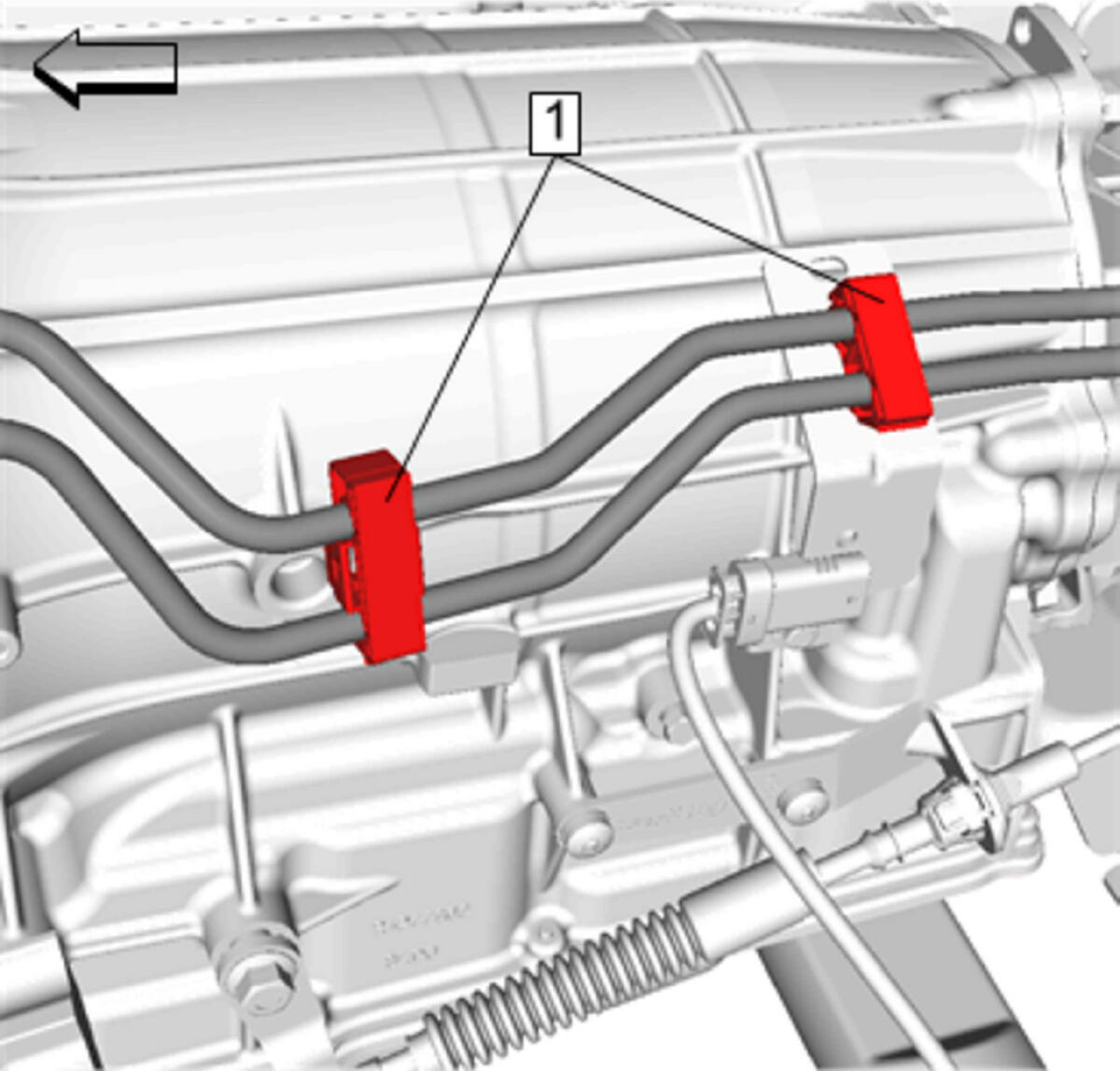

Retainer(1) - Remove[2x]

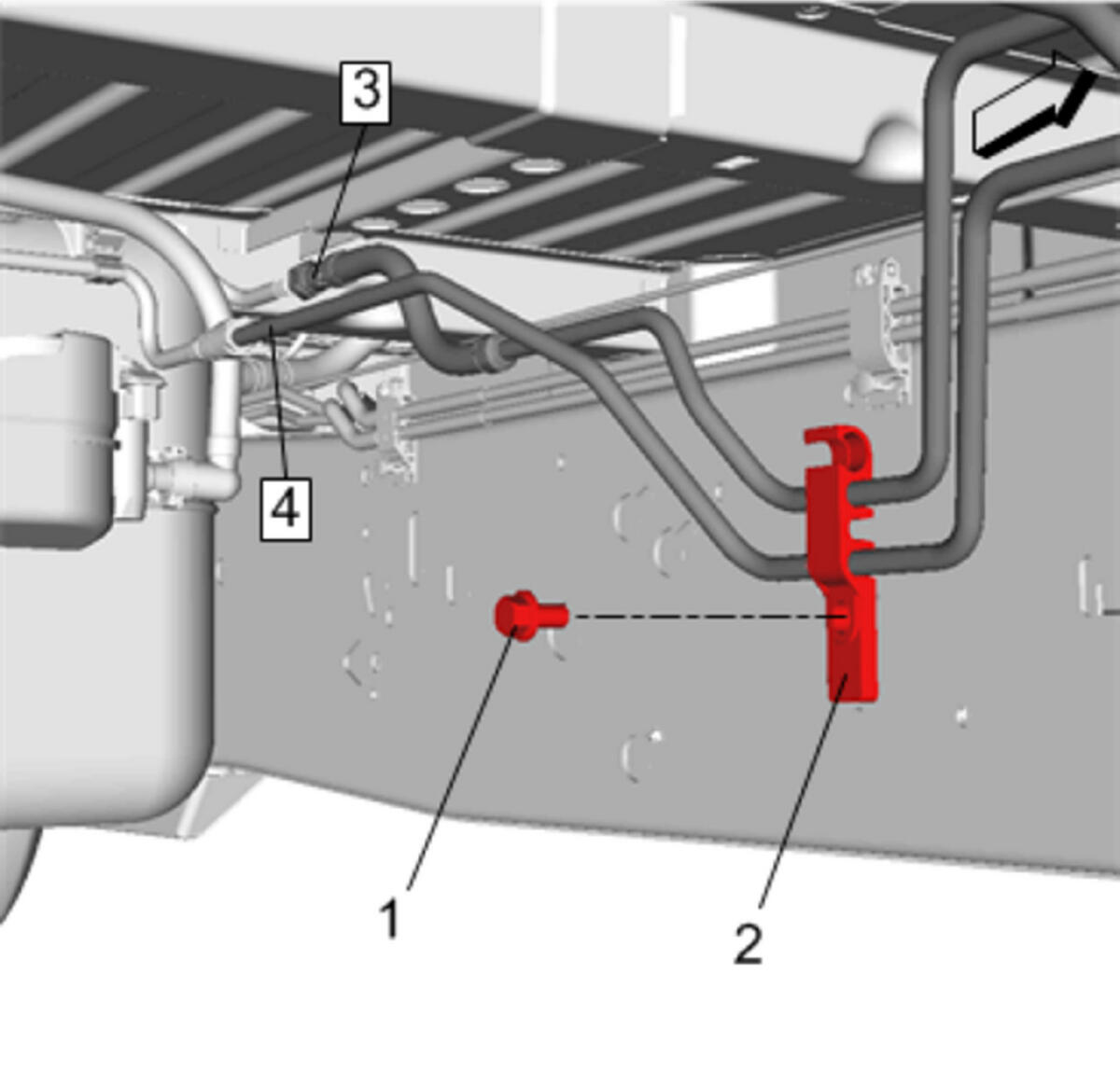

Fuel Feed and Evaporative Emission Front Pipe Nut (1) - Remove
- Evaporative Emission Pipe(2) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Fuel Feed Pipe(3) - Disconnect - Metal Collar Quick Connect Fitting Service
- Remove the oxygen sensor retainer from the pipe retainer.
- Fuel Feed and Evaporative Emission Front Pipe (4) - Remove
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning .
