Fuel Feed Pipe Replacement (Short/Long Wheel Base)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Preliminary Procedure Fuel Tank Replacement (Short Wheel Base) , or Fuel Tank Replacement (Long Wheel Base) , or Fuel Tank Replacement (Chassis Cab Rear Tank) , or Fuel Tank Replacement (Chassis Cab Front Tank) Refer to Safety Glasses Warning . |
|

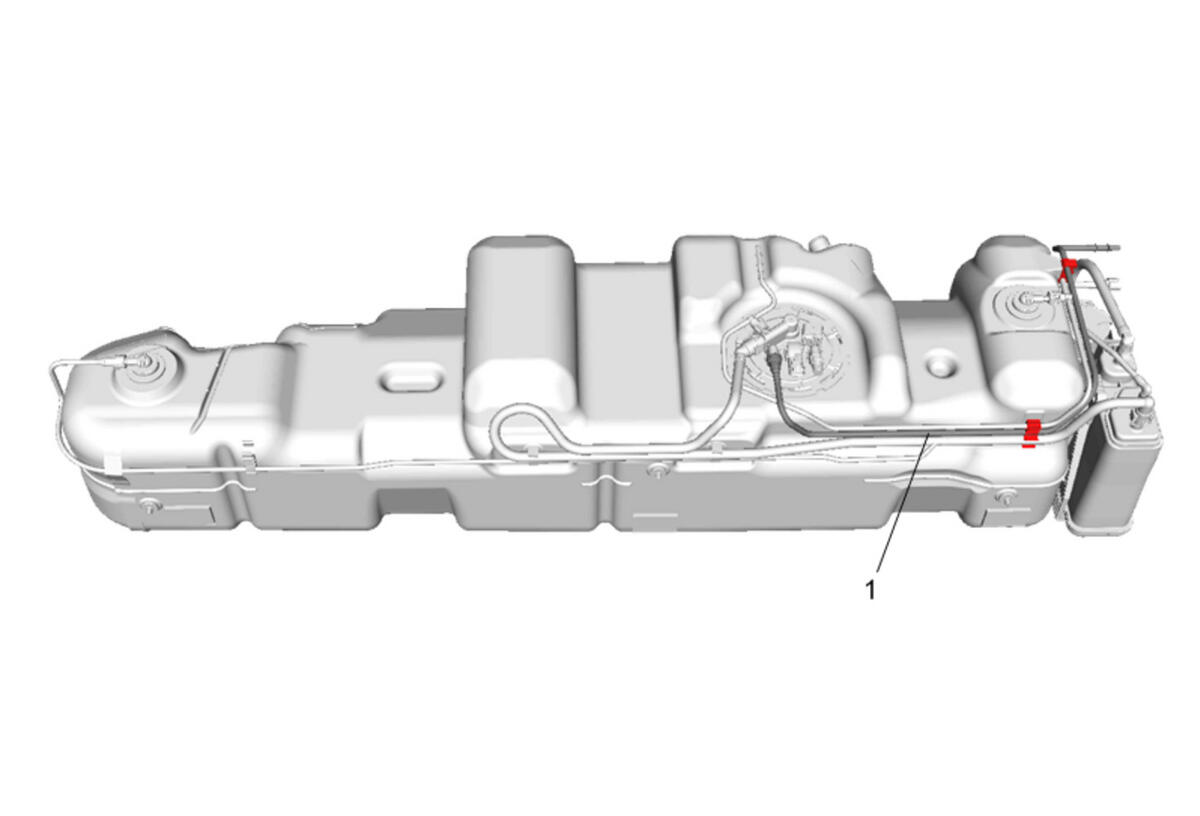

| 1 | Fuel Feed Pipe Procedure Disconnect the quick disconnects and remove from retainers. Plastic Collar Quick Connect Fitting Service |
