Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:
Refer to Component Fastener Tightening Caution .
NOTE:Following the procedure steps will prevent dislodging any wax from the fuel feed intermediate pipe fitting nut threads and ensure a proper seal.

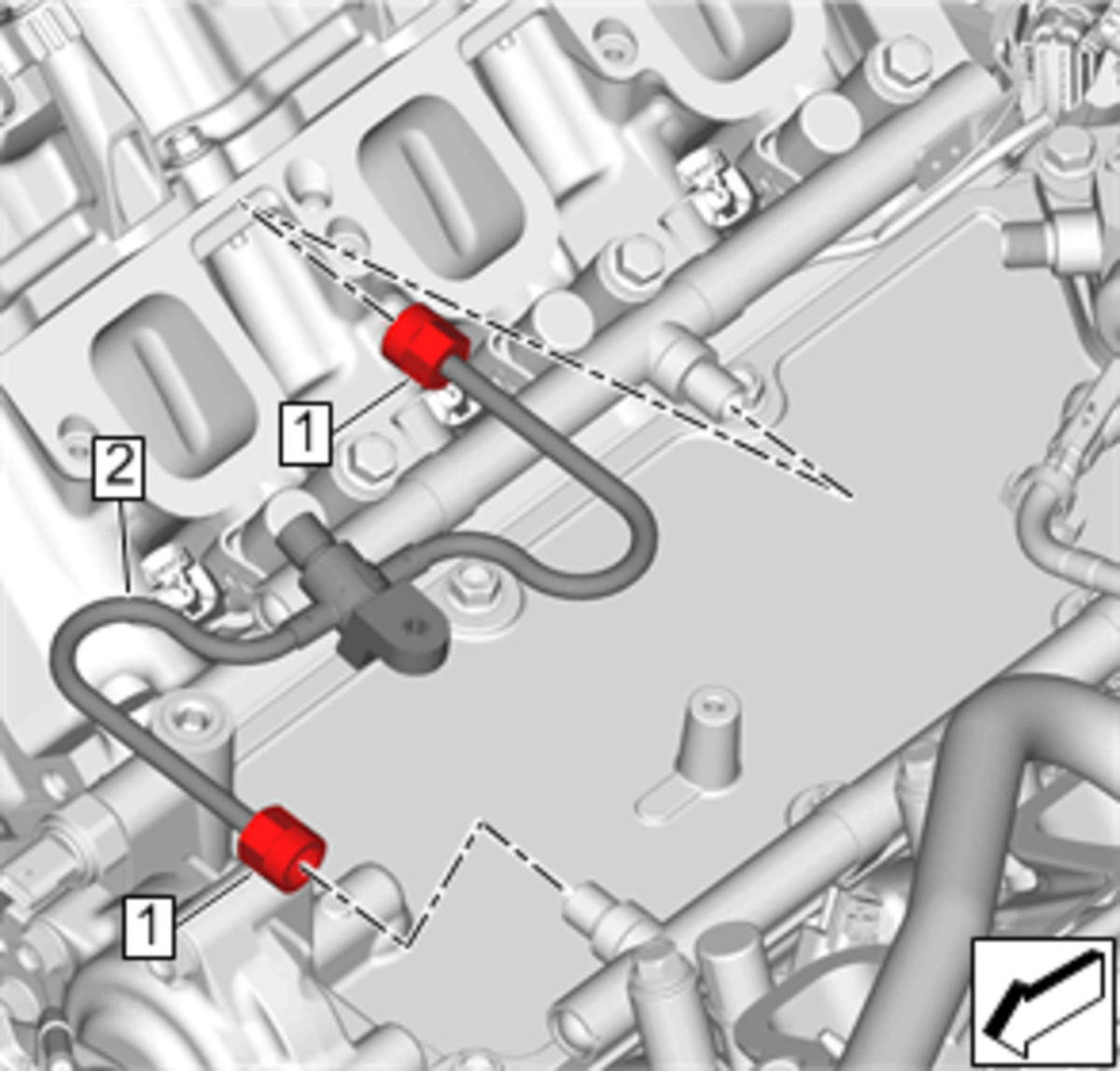

Perform the following steps to install the NEW fuel feed intermediate pipe (2) and tighten the fittings (1) to the fuel injection fuel rails:
- Hold the NEW fuel feed intermediate pipe in the installation position.
- At each connection point, slide the fitting nut backwards along the pipe to reveal the sphere.
- At each connection point, carefully seat the sphere to the mating socket and hold the sphere firmly to the socket while finger tightening the fitting nut.
- Tighten the fuel feed intermediate pipe fittings to 30 N.m (22 lb ft).
- CAUTION:
Refer to Fastener Caution .

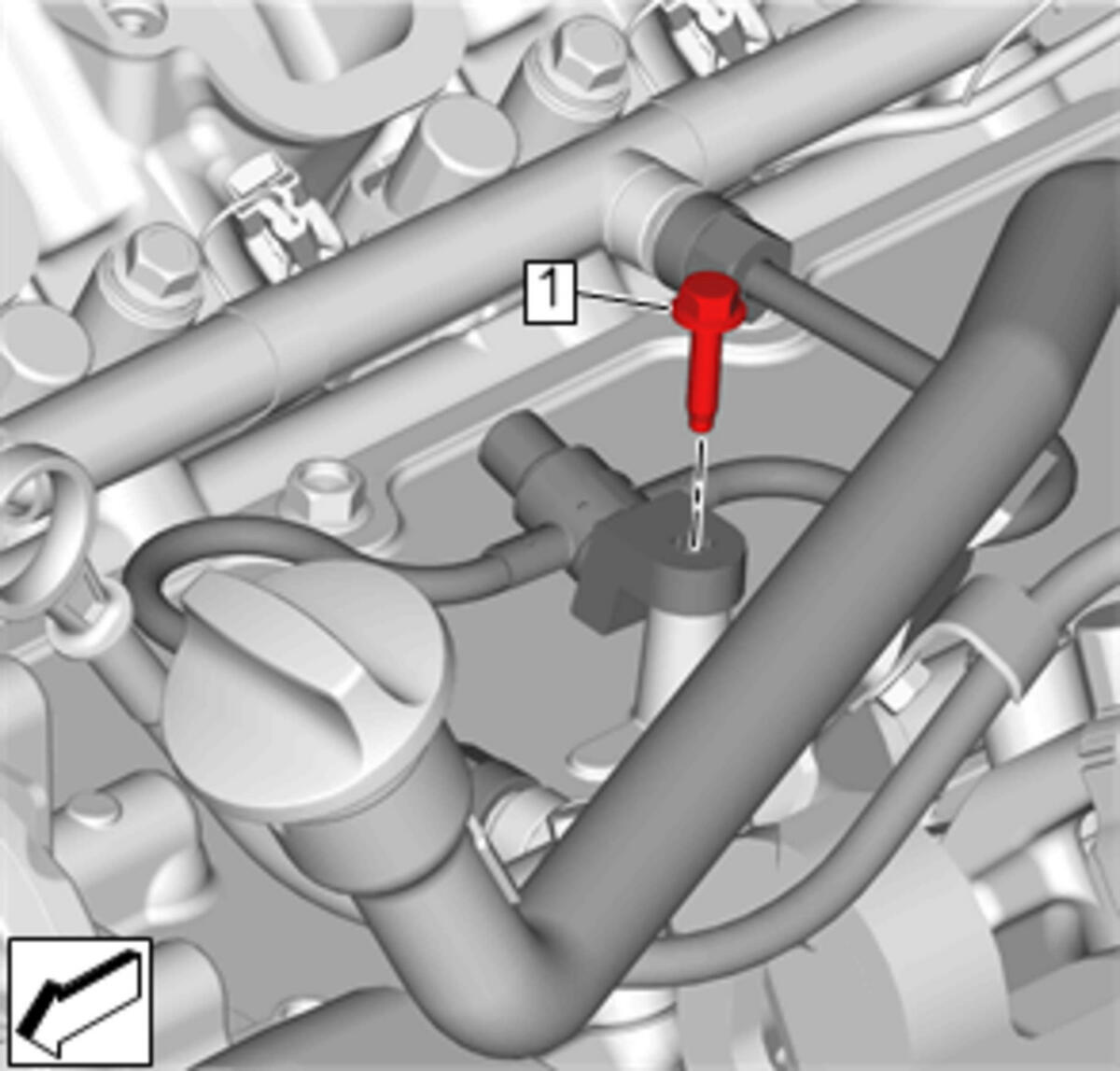

Install the fuel feed pipe bolt (1) and tighten to 10 N.m (89 lb in).
- Fuel Feed Intermediate Pipe- Position 2 - Install NEW - Fuel Feed Intermediate Pipe Replacement - Position 2
- Inspect for leaks using the following procedure:
- Turn ON the ignition with the engine OFF for 2 seconds.
- Turn OFF the ignition for 10 seconds.
- Turn ON the ignition with the engine OFF.
- Inspect for fuel leaks.
NOTE:
If a fuel leak occurs at either of the fuel injection fuel rail fittings, the corresponding component will need to be replaced.
