Engine Coolant Temperature Sensor Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96) Disconnect the radiator inlet hose from the water pump and reposition. Radiator Inlet Hose Replacement (LV1) Disconnect the electrical connector.

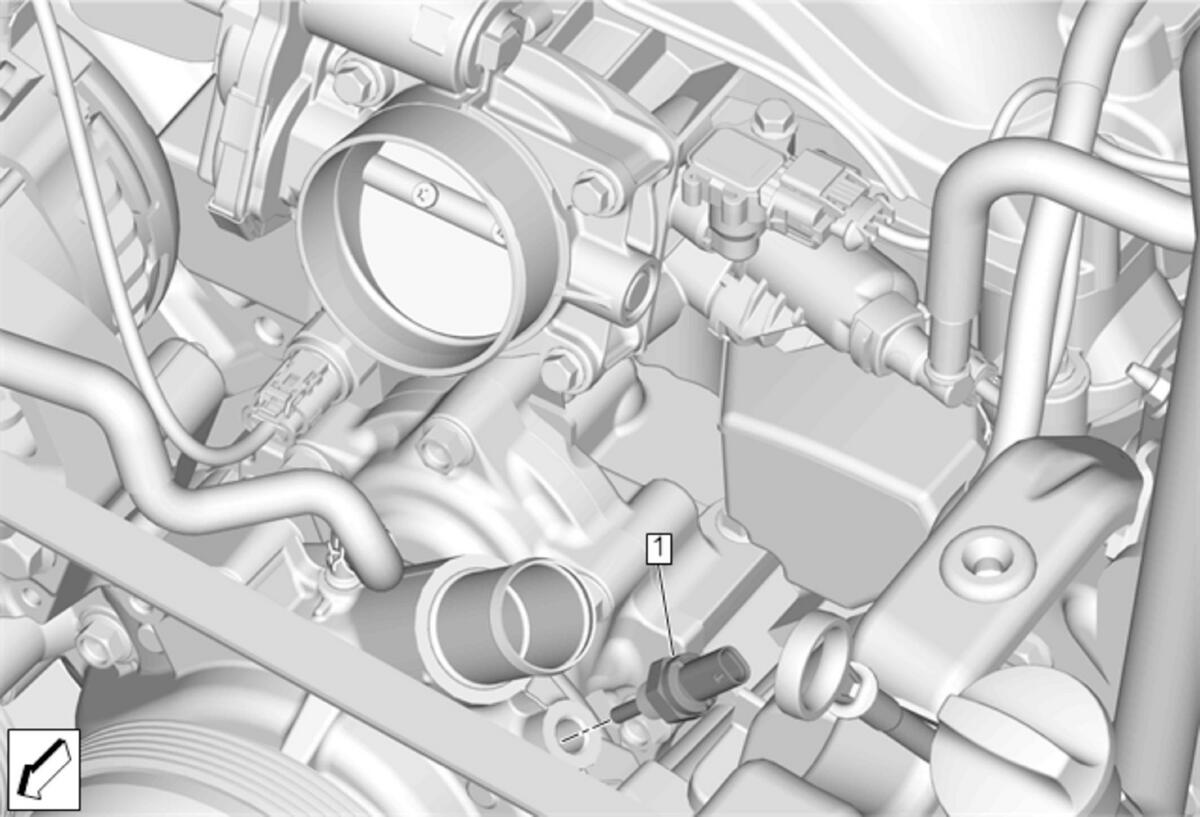

1	Engine Coolant Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Tighten 20 N.m (15 lb ft)

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
Disconnect the radiator inlet hose from the water pump and reposition. Radiator Inlet Hose Replacement (LV1)
Disconnect the electrical connector.

Engine Coolant Temperature Sensor

CAUTION:

Refer to Component Fastener Tightening Caution .

Tighten
20 N.m (15 lb ft)
