Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Install a NEW camshaft position sensor seal (2).
Lubricate the seal with clean engine oil. Adhesives, Fluids, Lubricants, and Sealers
- Install the camshaft position sensor (1).
Position the camshaft position sensor bracket (3).
- Install the upper camshaft position sensor wiring harness connector bolt (2) and hand tighten.
- Connect the electrical connector (1).
- Raise the vehicle.
- CAUTION:
Refer to Fastener Caution .
Install the lower camshaft position sensor wiring harness connector bolt (2) and tighten to 25 N.m (18 lb ft).
- Connect the electrical connector (1).
- Lower the vehicle.

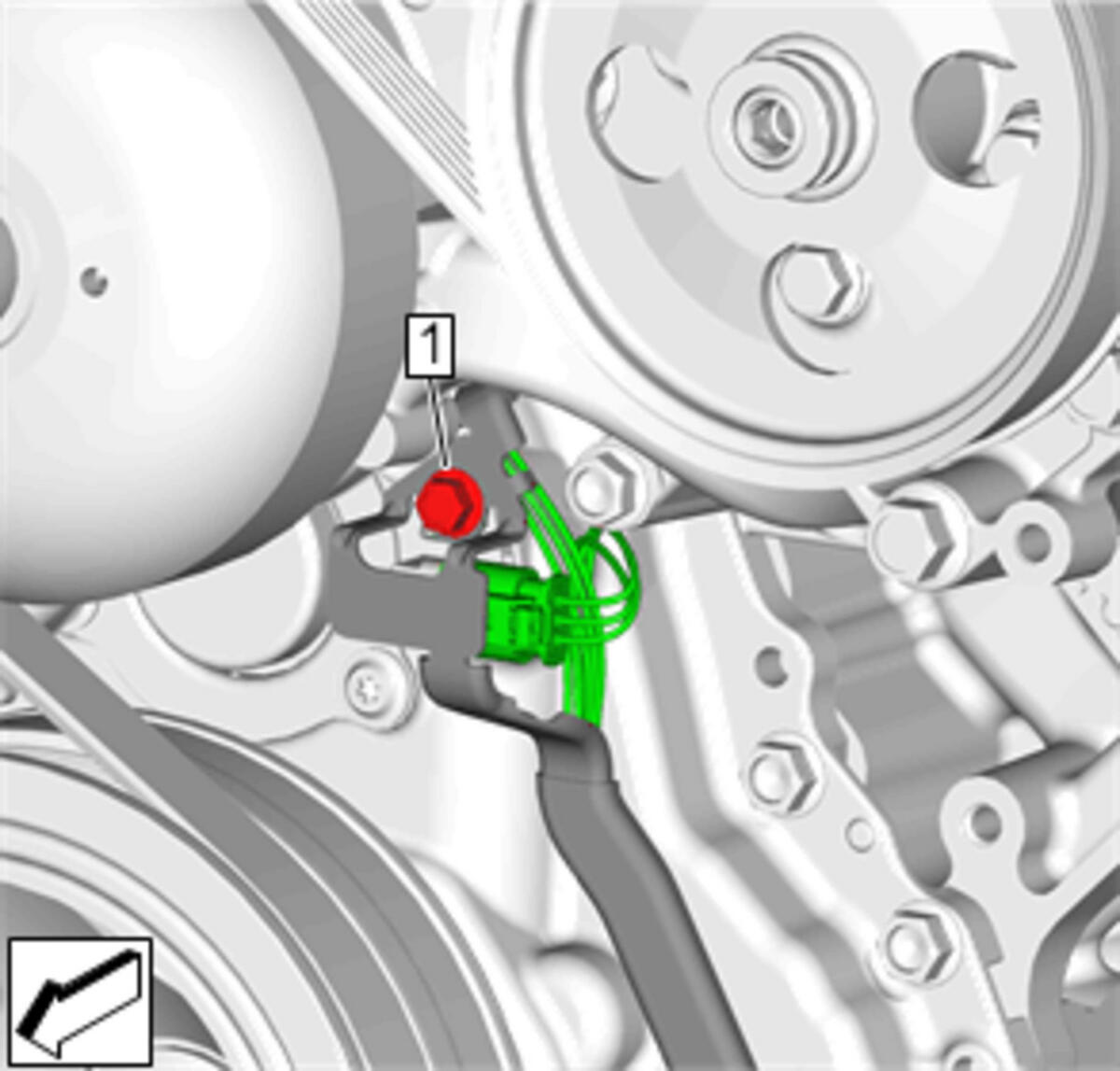

Tighten the upper camshaft position sensor wiring harness connector bolt (1) to 25 N.m (18 lb ft).
- Engine Coolant Fan Rear Shroud - Install - Engine Coolant Fan Rear Shroud Replacement (LV1)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) , or Battery Negative Cable Disconnection and Connection (Dual Battery)
